Description
Factory-Direct API 5L LSAW Pipe — In-house production with full mill test certificates and third-party inspection support for oil and gas pipeline projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L LSAW Carbon Steel Pipe |
| Product Type | LSAW Steel Pipe (Longitudinal Submerged Arc Welded) |
| Steel Grade | API 5L (Carbon Steel) |
| Standard | API 5L, GB/T 9711.1 |
| Section Shape | Round |
| Length | 6–12.5 m |
| Technique | LSAW (Longitudinal Submerged Arc Welded) |
| Surface Treatment | Coated (Anti-Corrosion) |
| Color | Black |
| Chemical Composition | C, Si, Mn, S, P |
| Application | Oil and gas pipelines, crude oil transportation, natural gas pipelines |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Crude oil trunk lines, natural gas gathering pipelines, wellhead flow lines |
| Petrochemical | Process piping networks, refinery feedstock transfer lines |
| Energy Infrastructure | Gas distribution mains, compressor station piping |
| Industrial Fluid Transport | Water injection lines, produced water disposal pipelines |
Where Coating Integrity Determines Pipeline Rejection at Site
Anti-corrosion coating damage during transit is the single most common cause of pipe rejection on African and Middle Eastern EPC projects.
When API 5L LSAW coated carbon steel pipe arrives at a remote pipeline spread with chipped coating or deformed pipe ends, third-party inspectors flag the entire batch. The cost is not just replacement material — it is crane time, crew idle hours, and schedule delays on a critical path activity. I have seen 300-ton shipments held up because coating was scraped bare at contact points during loading, exposing bare steel to humidity before the pipe even reached the trench.
The root cause is rarely the coating itself. It is the loading method, the stacking pattern, and whether edge protectors and timber dunnage were used correctly inside the container or on the flat rack. [NEED_CITE: proper handling requirements for coated line pipe during transport]
Matching API 5L LSAW Pipe to Pipeline Laying Conditions

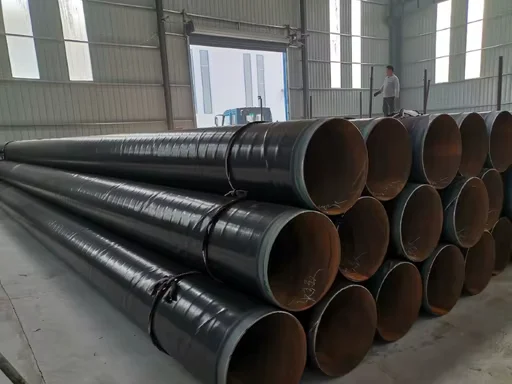

LSAW submerged arc welding produces a straight longitudinal seam with full-penetration fusion, making it suitable for medium-to-large diameter pipelines where internal pressure and external soil loading demand consistent weld integrity. The anti-corrosion coating applied to API 5L LSAW coated carbon steel pipe provides a primary barrier against soil corrosion and moisture ingress, extending service life in buried or submerged conditions. Customizable lengths from 6 m to 12.5 m allow project teams to optimize joint counts and reduce field welding time, particularly on long-distance transmission routes where every weld is a potential leak path.
Engineering Compliance and Certification Requirements
Oil and gas pipelines operate under strict regulatory frameworks. API 5L governs the chemical composition, mechanical properties, and hydrostatic testing requirements for line pipe steel, while GB/T 9711.1 provides the Chinese national equivalent. For projects in regulated markets, mill test certificates must document heat-by-heat chemical analysis and mechanical test results traceable to the original slab. Third-party inspection by SGS or BV is frequently specified by EPC contractors as a condition of payment release. [NEED_CITE: API 5L specification requirements for line pipe steel] Dimensional tolerances on outside diameter and wall thickness must conform to the standard’s permissible deviations, as out-of-tolerance pipe cannot be welded into a certified pressure boundary.
Understanding LSAW Process and API 5L Grade Selection

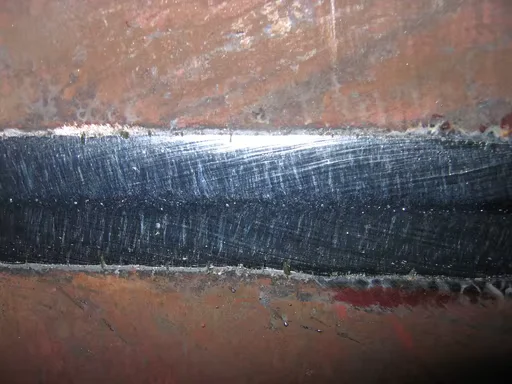

The LSAW process forms plate into a cylindrical shape and welds the seam using submerged arc welding under flux, producing a weld bead with low hydrogen content and minimal residual stress. This makes LSAW pipe preferable to ERW for larger diameters and higher-pressure applications where weld seam reliability is critical. API 5L covers multiple grade designations — from Grade A and B for lower-pressure gathering lines to higher grades like X42, X52, X60, and X70 for transmission pipelines operating at elevated pressures. The carbon equivalent, controlled through the C, Si, and Mn composition, determines weldability: higher strength grades require preheat and controlled heat input during field welding to avoid hydrogen-induced cracking. The anti-corrosion coating on API 5L LSAW coated carbon steel pipe is typically applied after hydrostatic testing and end preparation, ensuring the coating adheres to a clean, blast-profiled surface.
Hidden Costs of Procuring Without Verified Certification
Purchasing line pipe without verified mill test certificates or third-party inspection creates downstream risk that far exceeds the initial price difference. Material that does not meet API 5L chemical composition requirements may fail hydrostatic testing at the project site, requiring cut-out and replacement of installed sections. Coating applied without proper surface preparation will blister and disbond within months of burial, accelerating external corrosion and triggering premature integrity assessments. Customs authorities in regulated import markets routinely detain steel pipe shipments lacking proper documentation, and demurrage charges accumulate while the paperwork is resolved. [NEED_CITE: consequences of non-compliant line pipe in pipeline construction]
Why Source API 5L LSAW Pipe From Our Mill

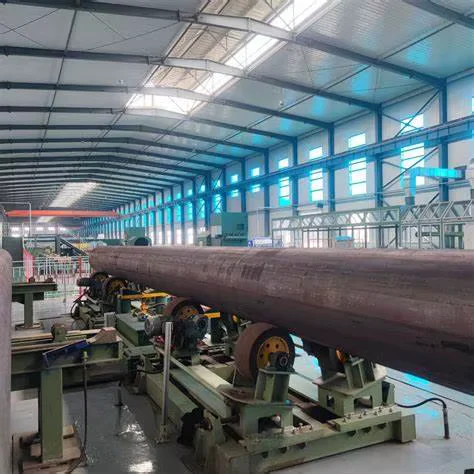

We produce API 5L LSAW coated carbon steel pipe on dedicated welding lines with in-process ultrasonic inspection of every longitudinal seam. Our in-house physical and chemical laboratory performs tensile, bend, impact, and spectrographic analysis on every heat, generating mill test certificates traceable to the original slab. Full international certifications — ISO 9001:2015, Lloyd’s CE, Singapore FPC, and SGS/BV verification — ensure our documentation satisfies import requirements across 50+ countries. We maintain finished stock of standard sizes and can produce custom lengths and wall thicknesses to match project-specific laying plans. Professional container loading with timber dunnage, edge protectors, and anti-damage measures has been refined through years of shipping to West African, Middle Eastern, and Southeast Asian pipeline sites.
Documentation & Compliance
- Mill test certificate documenting API 5L carbon steel chemical composition (C, Si, Mn, S, P) and mechanical properties per heat number
- CE certificate confirming compliance with EN 10210/EN 10219 for projects requiring European conformity marking
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request, covering dimensional, visual, and coating thickness verification
- Material traceability by heat number from slab to finished pipe, supporting weld procedure qualification records
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- API 5L LSAW pipes bundled with high-tensile steel strips and separated by timber dunnage to prevent coating abrasion during ocean transit
- Anti-corrosion coated surfaces protected with edge guards and plastic end caps to preserve coating integrity at pipe ends and weld preparation zones
- Container loading optimized for 6 m and 12.5 m lengths with weight distribution calculated to prevent shifting and contact damage during rough sea conditions
- Custom cutting to project-specified lengths available, with beveled ends prepared per API 5L requirements for field welding
- Heat number, steel grade, and size clearly marked on each pipe with durable paint stenciling for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional pipe loading supervision and door-to-door logistics coordination
Start Your Pipeline Procurement With Verified Documentation
Submit your project specifications — including API 5L grade, outside diameter, wall thickness, length, coating type, and destination port — to receive a detailed quotation with mill test certificate samples and third-party inspection options. Our technical team will confirm material equivalence, coating compatibility, and container loading plans within 12 hours.
Request API 5L LSAW Pipe Quotation With Full Mill Documentation
Provide your pipeline specifications and destination to receive pricing, material certificates, and loading plans.
