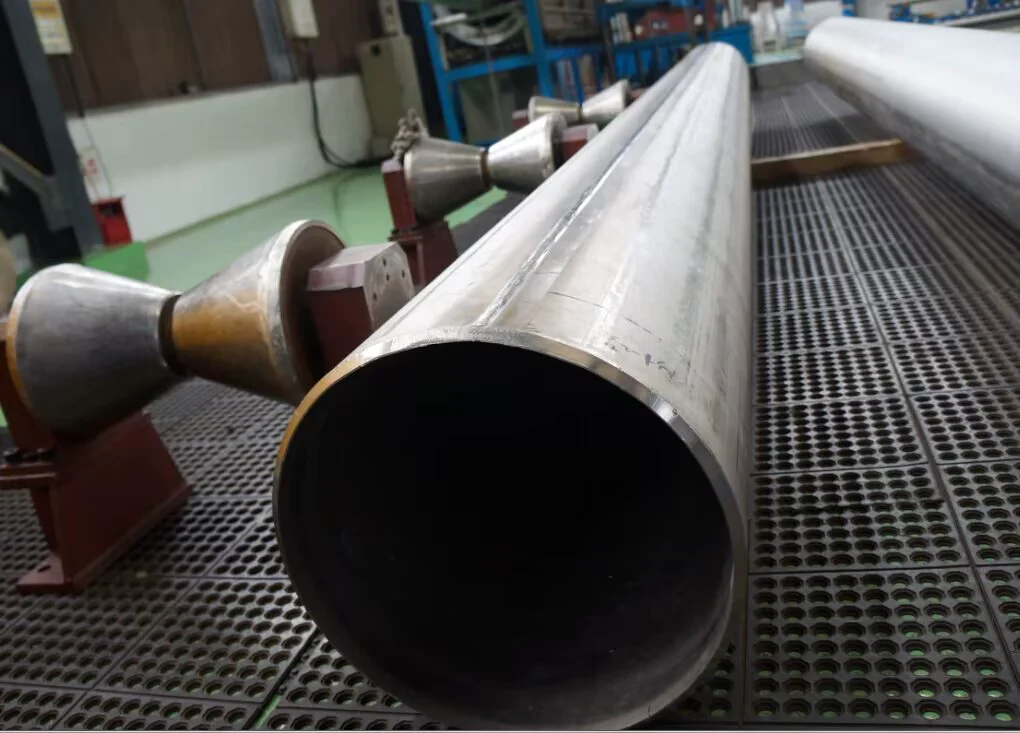

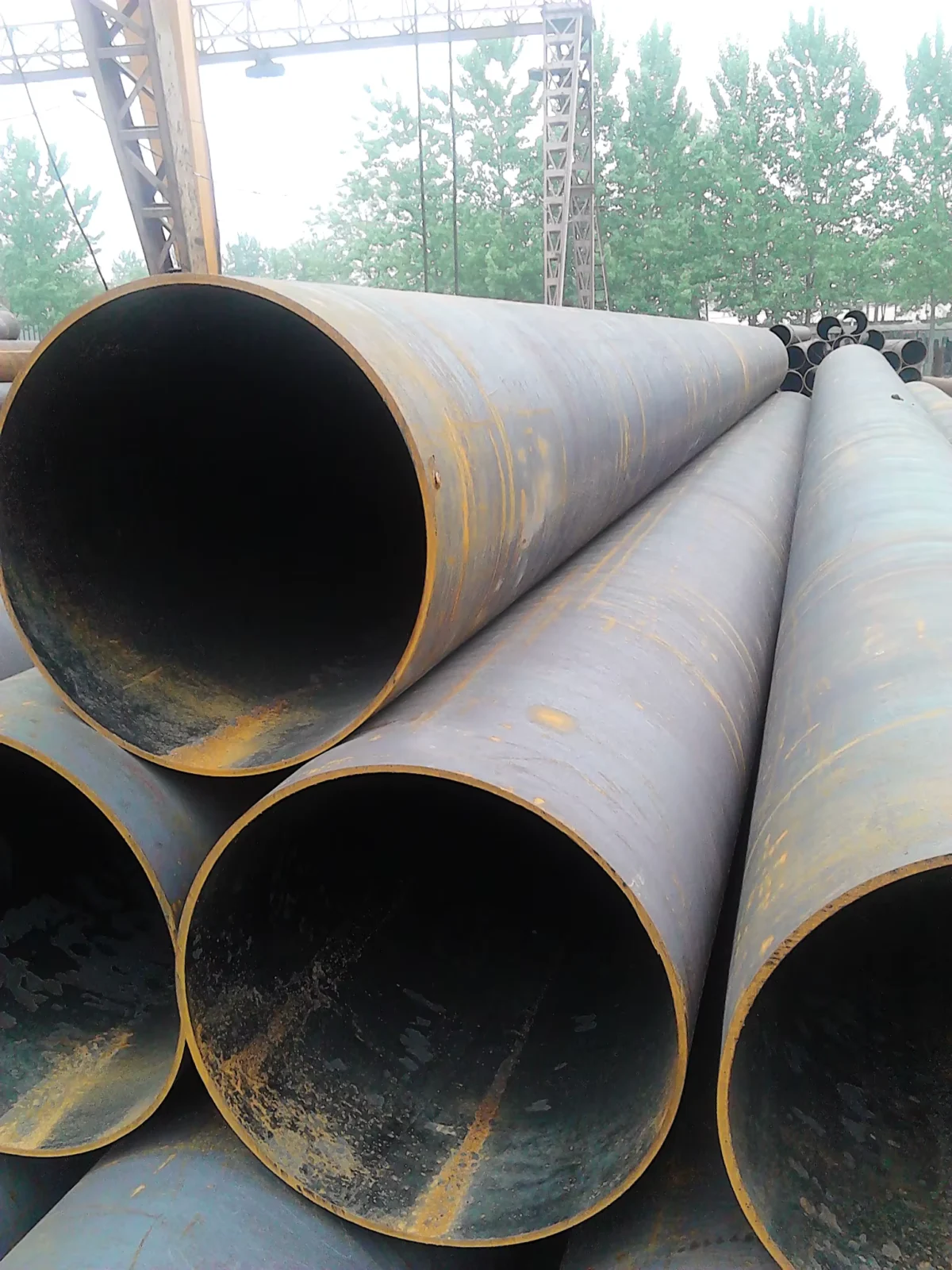

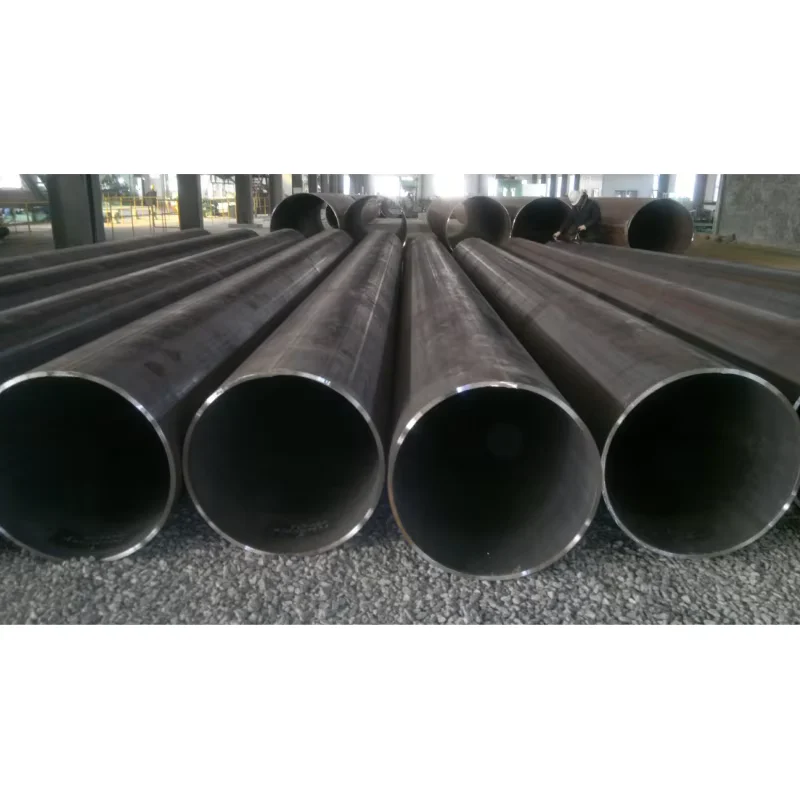

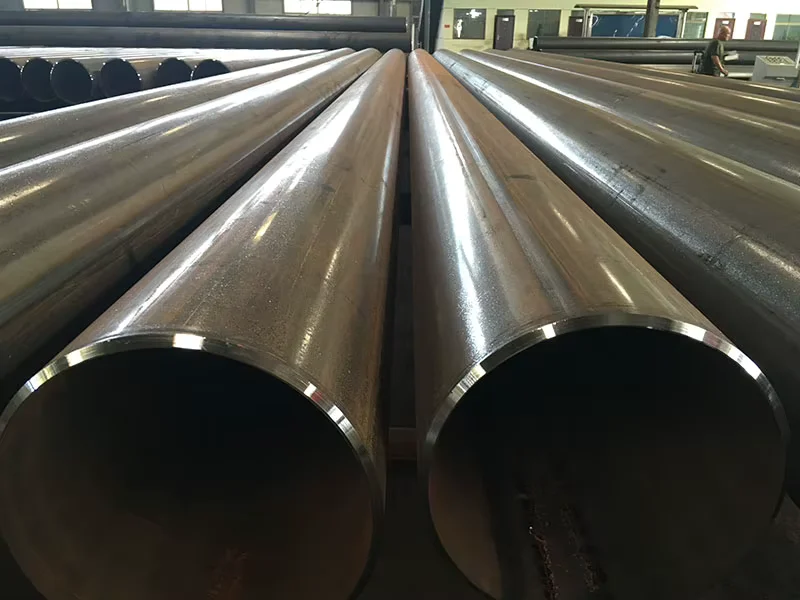

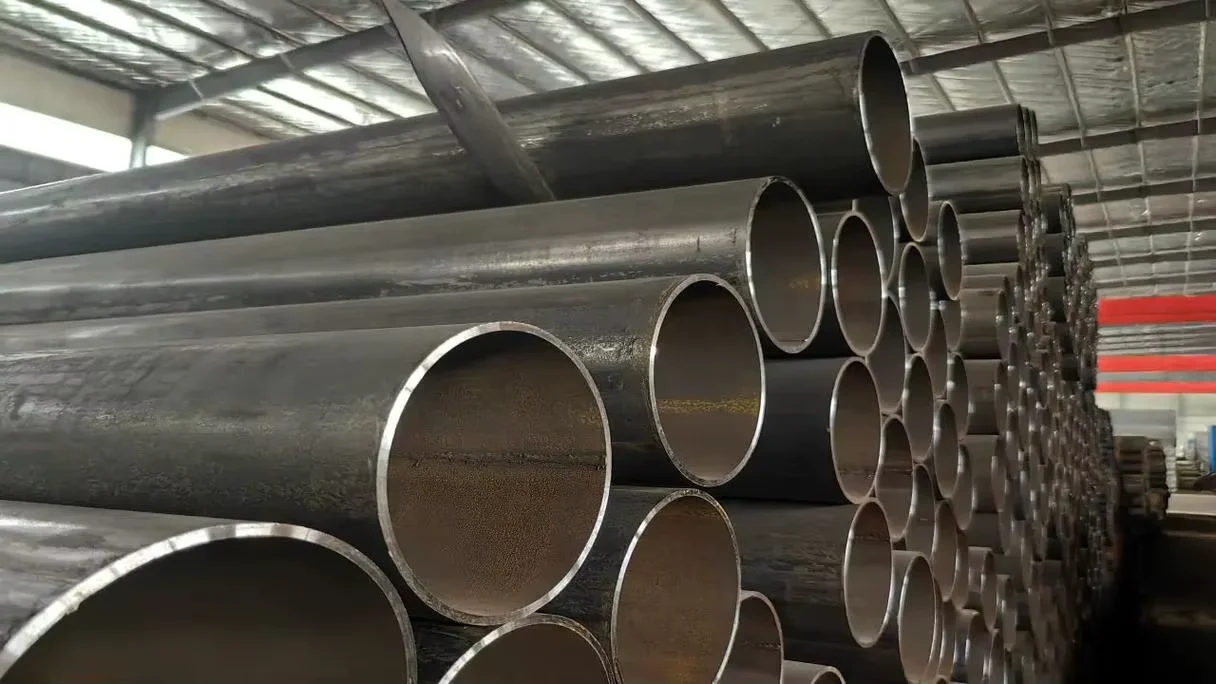

API 5L GR A/B-X70 ERW Steel Pipe SCH40 OD 54-1140mm Supplier

Description

Factory-direct ERW line pipe — API 5L GR A through X70 manufactured and tested in-house, shipped with mill test certificates and third-party inspection reports ready for customs clearance.

Technical Specifications

Application Suitability

Where Wall-Thickness Tolerance Decides Pipeline Acceptance

SCH40 ERW pipes that pass API 5L dimensional checks but fail ASME B31.3 pressure calculations cost entire shipments at destination port.

I have seen ERW line pipe orders held at Middle East ports because the wall thickness sat at the negative tolerance limit. The mill certificate said compliant. The client’s SGS inspector measured under ASME B31.3 process piping rules and rejected the lot. Every pipe had to be re-inspected, re-certified, or returned. That is why we run ultrasonic thickness testing on every length before it leaves the factory floor, and the readings travel with the mill test certificate — not as an optional add-on, but as standard documentation. [NEED_CITE: ASME B31.3 process piping dimensional tolerance requirements]

Matching SCH40 Wall Thickness to Pipeline Pressure Ratings

Schedule 40 wall thickness sits in the mid-range of API 5L dimensional standards, making it suitable for moderate-pressure gas and oil transmission where SCH80 would add unnecessary weight and cost. The ERW process produces a longitudinal weld seam that, when properly normalized, delivers weld integrity comparable to the parent metal — critical for field welding during pipeline tie-ins. Our API 5L ERW steel pipe Schedule 40 supplier capability covers OD from 54 mm to 1140 mm, meaning small-bore distribution lines and larger trunk segments can be sourced from a single production facility with consistent quality control.

Engineering Compliance Across International Standards

Pipeline projects crossing multiple jurisdictions require material documentation that satisfies both the design code and the importing country’s customs requirements. API 5L GR B and X-series grades map to specific chemical and mechanical envelopes that differ from EN 10210 or ASTM A53 equivalents — getting the grade substitution wrong triggers rejection at the inspection stage. [NEED_CITE: API 5L grade equivalence mapping to ASTM and EN standards] For EU-bound shipments, Lloyd’s CE certification under EN 10210/10219 provides the additional marking that customs authorities require. Beveled ends per API 5L prepare the pipe for immediate field welding without secondary machining, reducing on-site labor costs and schedule risk.

Understanding API 5L Grade Selection for ERW Pipe

The API 5L specification covers grades from GR A through X70, with the X-number indicating minimum yield strength in ksi (X42 = 42 ksi, X65 = 65 ksi). Higher grades like X60, X65, and X70 suit high-pressure transmission lines where wall thickness must be minimized to reduce weight and welding time. Lower grades such as GR A and GR B serve low-pressure gathering systems and structural applications where extreme strength is unnecessary. The ERW welding process creates a longitudinal seam through electric resistance heating and forge pressure — when followed by proper heat treatment, the weld zone achieves mechanical properties matching the base metal. Non-oiled hot rolled surface finish leaves the pipe ready for downstream 3PE coating or direct burial without additional surface preparation. [NEED_CITE: ERW weld seam heat treatment requirements per API 5L]

The Hidden Cost of Unverified Wall Thickness

Pipes that meet the letter of a standard but sit at negative tolerance limits create problems downstream: pressure calculations based on nominal wall thickness overestimate capacity, field welding on thin sections risks burn-through, and inspectors applying stricter project specifications reject material that technically passed mill acceptance. The cost is not the pipe price — it is the demurrage, the re-inspection fees, the replacement shipment, and the delayed commissioning. API 5L ERW steel pipe Schedule 40 orders should always arrive with ultrasonic thickness data tied to individual pipe lengths, not just a certificate covering the heat. [NEED_CITE: pipeline inspection rejection rates due to dimensional non-compliance]

Why Source API 5L ERW Pipe From Our Facility

We operate three dedicated production lines covering over 2,800 specifications, meaning your SCH40 ERW order in X52 or X65 does not require waiting for a mill campaign to fill. Our in-house physical and chemical laboratory tests every heat for tensile strength, yield point, elongation, and chemical composition before the pipe leaves the premises — the mill test certificate reflects actual test data, not typical values. Full international certifications including ISO 9001:2015, Lloyd’s CE marking, and Singapore FPC allow shipment to regulated markets without additional third-party certification delays. We have exported to over 50 countries, with established logistics routes to the Middle East, Southeast Asia, and Africa where API 5L line pipe demand concentrates. Custom lengths, beveled ends, and specific marking requirements are handled in-house, eliminating the need for secondary processing at destination.

Documentation & Compliance

• Mill test certificate documenting API 5L GR B/X42/X52/X65 chemical composition, yield strength, and tensile properties per heat number
• Lloyd’s CE certificate under EN 10210/10219 for EU market access and customs clearance
• ISO 9001:2015 quality management system certificate covering ERW pipe production and testing
• SGS or BV third-party inspection report covering dimensional verification, hydrostatic testing, and weld seam integrity
• Material traceability linking each pipe length to its heat number, production date, and test results
• Export documentation including packing list, bill of lading, and certificate of origin for destination customs

Packaging, Loading & Delivery

• API 5L ERW pipes bundled with steel strips and edge protectors to prevent surface damage during ocean transit, with non-oiled hot rolled finish preserved by waterproof wrapping
• SCH40 wall thickness pipes loaded in nested configurations for OD 54–219 mm ranges to maximize container utilization, with larger diameters shipped as single-layer deck cargo
• Custom cut lengths marked with heat number, steel grade, and OD/wall thickness at both ends for immediate site identification
• Beveled ends protected with plastic caps to prevent thread damage and moisture ingress during transit
• FOB, CIF, and DDP shipping terms available with professional container loading plans optimized for API 5L ERW steel pipe Schedule 40 dimensions
• Door-to-door logistics coordination with tracking from factory gate to project site

Start Your API 5L ERW Pipe Inquiry

Submit your specification sheet covering steel grade, outer diameter, wall thickness, total tonnage, and destination port — we return a detailed quotation within 12 hours, including unit pricing, production lead time, and available mill test certificate formats. For non-standard lengths or specific end preparation requirements, our engineering team provides custom solutions with confirmed delivery schedules.

Request Your API 5L ERW Pipe Quotation

Send your specification details to receive pricing, mill test certificate samples, and third-party inspection options within one business day.
