Description
Direct Mill Supply for Multi-Standard Hot Rolled Coils — A36 hot rolled steel coil supplier with in-house laboratory testing and full EN/ASTM/GB/JIS grade equivalence documentation.
Technical Specifications
| Parameter | Value |
|---|---|

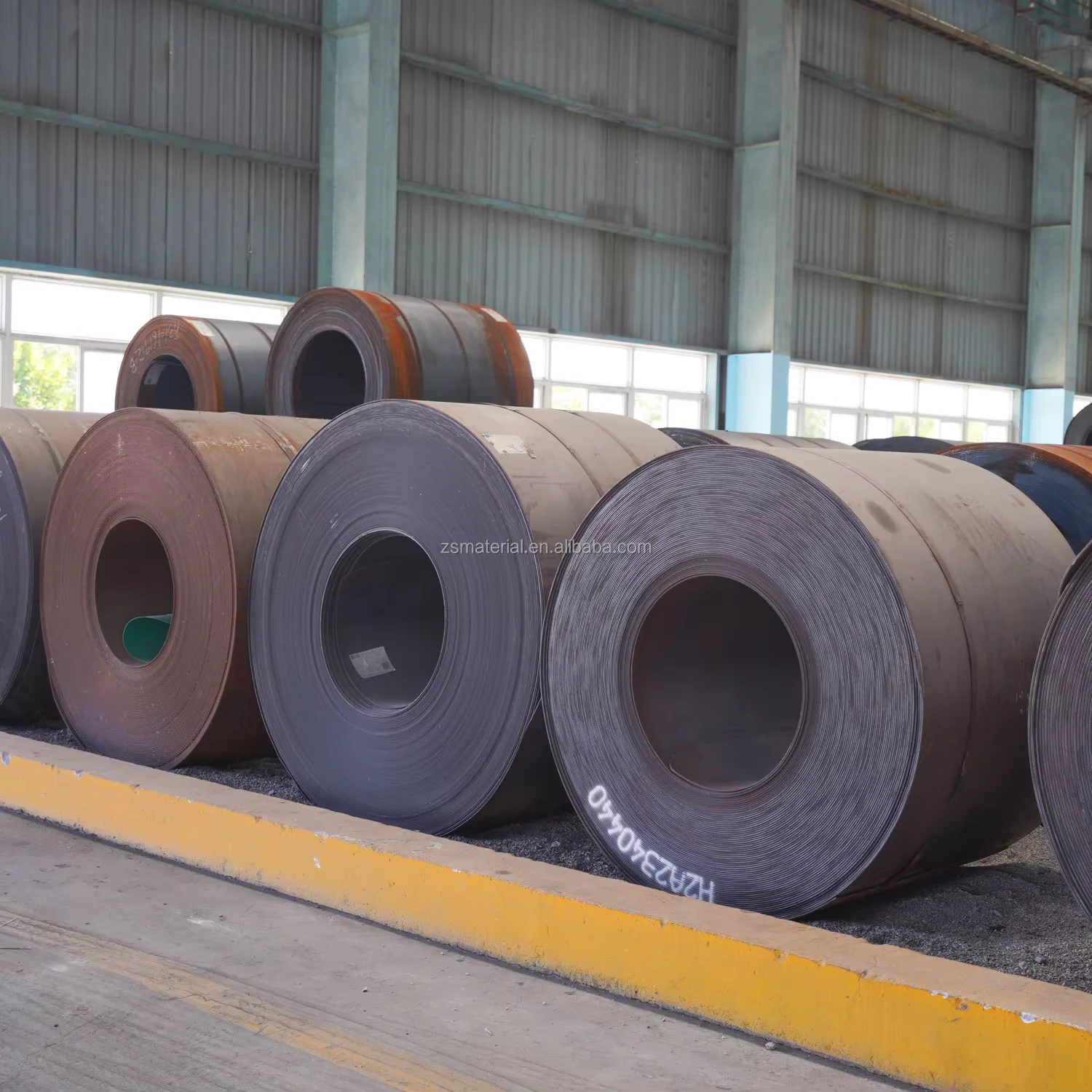

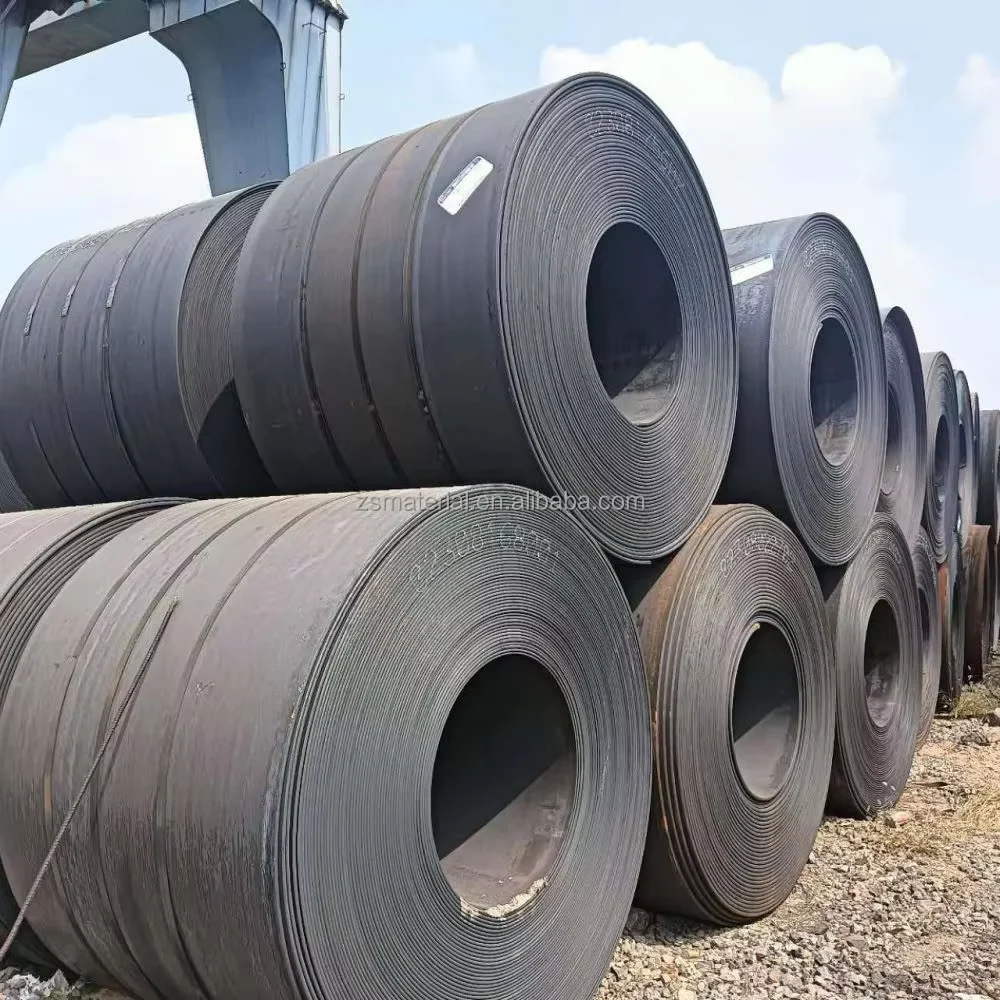

| Designation | A36/Q235 Hot Rolled Steel Coil |
| Product Type | Steel Coil |
| Steel Grade | A36, Q235, Q235B, Q345, Q345B, Q195, St37, St42, St37-2, St35.4, St52.4, St35, SS400 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Coil / Plate (after decoiling) |
| Thickness | 3–200mm |
| Width | 600–2000mm |
| Length | Customized |
| Technique | Hot Rolled |
| Surface Treatment | Coated / Oiled |
| Coil ID | 508/610mm |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Shipbuilding, Construction, Machinery, Automotive, Bridges, Pressure Vessels |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding | Hull plate forming, deck structures, bulkhead framing |
| Construction | Column base plates, floor grating supports, embedded anchor plates |
| Machinery | Machine frame blanks, gear housing plates, crane boom sections |
| Automotive | Chassis cross-members, trailer floor plates, structural brackets |
| Bridges | Gusset plates, splice connections, bearing stiffeners |
| Pressure Vessels | Shell course blanks, head dishing plates, nozzle reinforcement pads |
Grade Equivalence Confusion Costs More Than the Coil Itself
A36, Q235B, S235JR, and St37 are not identical — specifying the wrong one blocks customs or fails structural review.
Procurement teams routinely treat these grades as interchangeable because their yield strength ranges overlap. In practice, the chemical composition limits — particularly carbon and manganese content — differ enough that a mill test certificate issued to GB/T 700 will not satisfy an EN 10204 3.2 inspector reviewing an EU-bound pressure vessel order. [NEED_CITE: steel grade equivalence between EN, ASTM, and GB standards] I have seen entire shipments held at Rotterdam because the MTC referenced Q235B while the purchase order called for S235JR per EN 10025-2. The coil chemistry was acceptable, but the documentation language mismatch triggered a rejection. When you source an A36 hot rolled steel coil from a supplier who cannot provide cross-referenced grade tables and batch-specific MTCs, you absorb the risk of re-rolling or re-documentation at destination.
Matching Coil Thickness and Width to Structural Fabrication Demands
Hot rolled coils in the 3–200mm thickness range cover everything from light gauge bracket blanks to heavy pressure vessel shell plates. The 600–2000mm width range means a single A36 hot rolled steel coil order can supply both narrow flange trim pieces and wide base plates without splitting the purchase across multiple mills. For shipbuilding and bridge work, the oiled surface treatment provides transit corrosion protection while remaining compatible with downstream shot-blasting and primer application. Our decoiling and cut-to-length services allow fabricators to receive blanks at exact project dimensions, reducing on-site cutting waste and handling time.
Engineering Compliance Across EN, ASTM, and GB Frameworks
Structural designers specifying EN 1993 or AISC 360 require verified material properties traceable to recognized standards. [NEED_CITE: EN 10219 hot rolled structural steel requirements] An A36 hot rolled steel coil supplied with EN 10204 3.1 certification satisfies EU notified body requirements, while the same batch with ASTM A36/A36M documentation meets AISC audit trails for North American projects. The ±1% thickness tolerance ensures that theoretical weight calculations used in structural modeling align with delivered material — critical when load-bearing capacity depends on minimum section properties. For pressure vessel fabrication, the availability of Q345B and St52.4 grades within the same product family allows engineers to step up strength without changing suppliers or requalifying welding procedures.
Understanding Hot Rolled Coil Grades and Surface Conditions
The A36 and Q235B grades represent the baseline carbon structural steels in ASTM and GB systems respectively, with yield points around 250 MPa class — suitable for general fabrication where high strength is not the primary driver. Moving to Q345B or St52.4 shifts the application toward heavier structural members and pressure-containing components where higher yield strength reduces section weight while maintaining load capacity. The DIN-designated St37 through St52 series maps closely to the EN S-series, though subtle differences in impact testing requirements at sub-zero temperatures mean that specifying St37-2 for an Arctic pipeline support structure without verifying Charpy test data invites failure. [NEED_CITE: hot rolled steel surface condition and corrosion protection methods] Hot rolled coils with oiled surface treatment protect against white rust during ocean transit without interfering with subsequent painting or galvanizing — a practical choice for projects where the coil will be decoiled, blanked, and then surface-finished at the fabrication shop rather than at the mill.
Hidden Costs of Unverified Coil Procurement
Ordering an A36 hot rolled steel coil based on price alone, without requiring batch-specific mill test certificates, exposes the project to chemistry mismatches that only surface during weld procedure qualification or third-party inspection. Negative tolerance abuse — where actual thickness falls below the specified minimum — reduces load capacity and triggers rejection during structural acceptance testing. Missing or incorrectly referenced CE markings halt customs clearance in EU member states, forcing demurrage costs and reshipment. [NEED_CITE: consequences of non-compliant steel documentation in international trade] These failures do not appear in the purchase order price; they emerge weeks later at the port, the fabrication yard, or the inspection station.
Why SD XJY Pipe Earns Repeat Orders From Fabricators and EPCs
We operate our own physical and chemical laboratory, meaning every A36 hot rolled steel coil shipped carries an MTC generated from actual batch testing — not a template document. Our coverage of A36, Q235B, Q345B, St37, St52.4, SS400, and other grades under ASTM, GB, DIN, EN, and JIS standards allows procurement teams to consolidate multi-standard orders into a single purchase. The ±1% thickness tolerance and 3–200mm range serve both light fabrication and heavy structural work from one source. Full ISO 9001:2015 certification, Lloyd’s CE marking, and SGS/BV third-party verification satisfy regulated-market import requirements across 50+ destination countries. Custom width and length orders, decoiling, cutting, and edge trimming reduce downstream processing costs for fabricators who receive ready-to-weld blanks. Professional container loading with edge protectors and anti-shift bracing prevents coil edge damage and telescoping during ocean freight.
Documentation & Compliance
- Mill test certificate documenting A36 chemical composition and mechanical properties per ASTM A36/A36M, with heat number traceability
- EN 10204 3.1/3.2 type certificates for Q235B and Q345B coils destined for EU construction and pressure vessel projects
- ISO 9001:2015 quality management certificate covering the full hot rolling, testing, and dispatch process
- SGS or BV third-party inspection reports available pre-shipment for projects requiring independent verification of dimensions, surface condition, and chemistry
- Heat number marking on each coil ID tag and outer wrapping, enabling full material traceability from mill slab to fabricated component
- Complete customs documentation set including packing list, bill of lading, certificate of origin, and commercial invoice aligned with destination country requirements
Packaging, Loading & Delivery

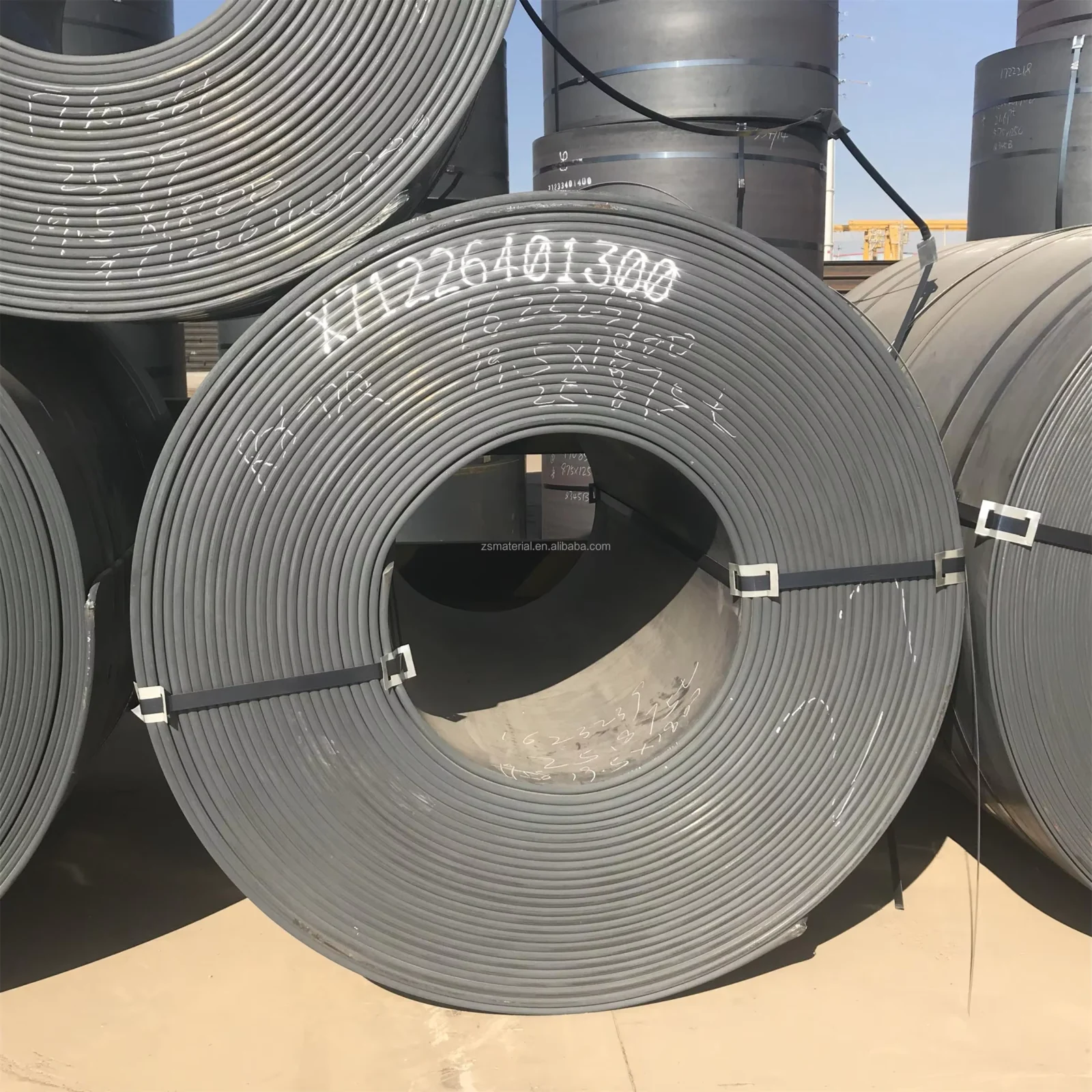

- Hot rolled coils secured with minimum three high-tensile steel strip bands, with edge protectors applied to prevent edge wave damage during transit — critical for oiled surface coils where edge contact can scrape the protective oil film
- Oiled surface treatment applied at the mill to prevent oxidation during ocean shipment; coils wrapped in waterproof kraft paper and outer steel sheeting for full weather protection
- Container loading optimized for 600–2000mm width coils using wooden saddles and chocking systems that prevent rolling and telescoping; 20ft containers loaded to maximum payload for 3–20mm thickness coils, flat rack or open top used for wider or heavier gauge orders
- Decoiling and cut-to-length service available at mill, delivering flat plates in customized lengths up to project specifications — reducing fabricator handling and scrap
- Each coil labeled with heat number, steel grade (A36/Q235B/Q345B as applicable), thickness, width, coil ID, and net weight for unambiguous identification at destination
- FOB, CIF, and DDP shipping terms available; professional export documentation and real-time tracking provided from dispatch through port arrival
Getting Your Quote and Mill Test Certificate
Submit your required steel grade, thickness, width, coil weight, surface treatment preference, and destination port — we respond within 12 hours with unit pricing, lead time, and a sample mill test certificate for the specified grade. For non-standard widths or thicknesses outside the 600–2000mm / 3–200mm range, we provide feasibility confirmation and alternative sourcing options. Certification and customs document requirements are confirmed before contract signing, eliminating destination clearance surprises.
Frequently Asked Questions
Q: How do A36, Q235B, and S235JR compare — and which should I specify for my project?
A: A36 (ASTM), Q235B (GB/T 700), and S235JR (EN 10025-2) are all general-purpose carbon structural grades with similar yield strength ranges. The key differences lie in chemical composition limits, impact testing requirements, and the certification framework your project inspector expects. We provide cross-reference tables and can supply MTCs in the standard your end client or notified body requires.
Q: Can you provide Mill Test Certificates compliant with EN 10204 for EU customs clearance?
A: Yes. Every A36 hot rolled steel coil we ship can be accompanied by EN 10204 3.1 certificates as standard, with 3.2 type certificates available when third-party witness testing is required by the project specification.
Q: What is the minimum order quantity for non-standard width or thickness?
A: The standard MOQ is 1 Ton. For non-standard widths outside 600–2000mm or thicknesses outside 3–200mm, we evaluate mill rolling feasibility and advise on minimum tonnage per size before contract.
Q: Do you offer decoiling, cut-to-length, and edge trimming services?
A: Yes. We provide decoiling into flat plates, cut-to-length to your specified dimensions, and edge trimming to remove mill edge defects. This allows fabricators to receive ready-to-punch or ready-to-weld blanks directly.
Q: How are hot rolled coils packed and loaded to prevent edge damage during ocean freight?
A: Coils are banded with high-tensile steel strips, wrapped in waterproof paper and outer steel sheeting, and loaded onto wooden saddles with chocking inside the container. Edge protectors are applied to preserve the oiled surface finish and prevent edge wave damage.
