Description
Direct Mill Supply for High-Temperature Alloy Piping — In-house spectrochemical analysis and mechanical testing verify every ASTM A335 P11 seamless alloy steel pipe before dispatch, eliminating chemistry mismatches at site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A335 P11 Seamless Alloy Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | A335 P11, 15CrMo, 10#, 20#, 45#, 16Mn, 40Cr, 45Mn2 |
| Standard | ASTM A335, ASME B36.10M, API 5L, ASTM A53, ASTM A106, GB, DIN, BS, JIS |
| Section Shape | Round |
| Size Range | 21.3–1420 mm OD |
| Wall Thickness | 2.11–300 mm (SCH160 available) |
| Length | 6 m / 6.4 m / 12 m |
| Technique | Seamless (SMLS) |
| Surface Treatment | Slightly Oiled |
| Ends | Beveled Ends (BE) |
| Tolerance | ±1% |
| Application | Boiler, High-temperature fluid transport, Petrochemical, Oil & Gas, Chemical Fertilizer, Structure Pipe, Machinery parts |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Power Generation | Superheater and reheater tubes in coal-fired and combined-cycle boilers operating above 500°C |
| Petrochemical | High-temperature hydrocarbon process lines in refinery furnaces and catalytic cracking units |
| Oil & Gas | Creep-resistant alloy piping for sour gas treatment and high-pressure steam injection systems |
| Chemical Fertilizer | Heat exchanger tubes and reactor feed lines in ammonia and urea synthesis plants |
| Industrial Machinery | Hydraulic cylinder barrels and high-pressure steam manifolds for heavy equipment |
Where Chemistry Verification Decides Project Acceptance on ASTM A335 P11 Seamless Alloy Steel Pipe
A single molybdenum deviation below 0.45% voids creep resistance at 600°C and triggers full-batch rejection under ASTM A335.
Sourcing chromium-molybdenum alloy pipe for high-temperature service carries a risk most buyers discover too late: the mill test certificate looks complete, but spectrochemical analysis at destination reveals molybdenum content below specification. I have seen entire container loads of P11 pipe held at port because the chromium-to-molybdenum ratio failed to meet the 1.25Cr-0.5Mo nominal requirement. The consequence is not just material rejection — it is project delay claims, weld procedure requalification, and in some cases structural redesign. [NEED_CITE: ASTM A335 chemical composition requirements for P11 grade]
How Heavy-Wall SCH160 Configuration Matches High-Pressure Steam Systems
The ASTM A335 P11 seamless alloy steel pipe in SCH160 wall thickness — reaching up to 300 mm — addresses the pressure containment demands of superheater circuits and main steam headers where standard schedule pipes fall short. The seamless manufacturing process eliminates the weld seam vulnerability that becomes a failure point under cyclic thermal loading at elevated temperatures. Beveled ends conform to ASME B36.10M, allowing direct butt-welding into P11 fitting assemblies without transition machining. Our production covers outer diameters from 21.3 mm to 1420 mm, meaning instrument lines and main steam headers can be sourced from a single mill order with consistent heat treatment history.
Engineering Compliance and Material Traceability for Regulated Service
High-temperature alloy piping in power and petrochemical plants must comply with ASME B31.1 power piping code and ASME B31.3 process piping code, both of which reference ASTM A335 as the governing material specification. The P11 grade requires normalizing and tempering heat treatment to achieve the microstructural stability needed for creep service — a requirement that must be documented on the mill test certificate with actual heat treatment temperatures and hold times. [NEED_CITE: ASME B31.1 material requirements for ferritic alloy steel pipe] For projects in the European market, equivalent material designation under EN 10216-2 (13CrMo4-5) may apply, and proper cross-referencing between ASTM and EN designations prevents procurement errors at the specification stage. Third-party inspection by SGS or BV before shipment provides independent verification of chemistry and mechanical properties, which is often a contractual requirement for EPC projects in the Middle East and Southeast Asia.
Chromium-Molybdenum Alloy Metallurgy and Seamless Process Advantages
The 1.25Cr-0.5Mo composition of A335 P11 provides solid-solution strengthening and carbide stability at temperatures up to approximately 600°C, where carbon steel grades lose significant creep strength. The chromium content enhances oxidation resistance at the pipe outer surface, while molybdenum maintains lattice strength under sustained high-temperature loading. The seamless extrusion process produces a uniform equiaxed grain structure without the longitudinal weld line present in ERW alternatives — a critical distinction for applications involving thermal cycling and internal pressure fluctuation. Wall thickness tolerance of ±1% ensures that minimum wall requirements under ASME B31.1 pressure design calculations are met without excessive weight penalty. The slightly oiled surface treatment provides short-term corrosion protection during storage and ocean transit without interfering with subsequent welding or coating operations.
Hidden Costs of Unverified Alloy Pipe Procurement
Purchasing ASTM A335 P11 seamless alloy steel pipe without independent chemistry verification exposes the project to failure modes that only manifest under operating temperature. Molybdenum depletion below specification does not cause immediate rejection during visual inspection or dimensional checks — it surfaces during service when creep deformation exceeds design allowances, potentially years after installation. [NEED_CITE: creep failure mechanisms in Cr-Mo alloy steel at elevated temperature] Certification gaps — missing heat numbers, incomplete heat treatment records, or MTCs that do not match the shipped material — trigger customs holds in regulated markets and can result in full-batch rejection even if the pipe chemistry is actually compliant. The cost of re-procurement, re-welding, and schedule delay typically exceeds the original material cost by a significant multiple.
Procurement Confidence Through In-House Testing and Full Documentation
Every heat of ASTM A335 P11 seamless alloy steel pipe undergoes spectrochemical analysis in our physical and chemical laboratory before release, confirming chromium and molybdenum content against ASTM A335 requirements. We maintain ISO 9001:2015 certified quality management across production, and our mill test certificates include full chemical composition, tensile properties, and heat treatment records traceable to individual heat numbers. For projects requiring independent verification, we arrange SGS, BV, or Lloyd’s inspection at our facility prior to shipment — at no additional coordination burden to the buyer. Our production lines cover over 2,800 specifications across seamless, welded, and galvanized products, allowing consolidation of alloy pipe with structural sections and standard carbon pipe in a single shipment to reduce freight cost and simplify customs clearance. Professional container loading with anti-damage measures protects beveled ends and pipe surfaces during ocean transit, and we supply complete export documentation including certificate of origin for destination-country customs requirements.
Documentation & Compliance
- Mill test certificate documenting A335 P11 chemical composition including chromium 1.00-1.50% and molybdenum 0.45-0.65% per ASTM A335, with tensile and hardness results
- Heat treatment record confirming normalizing and tempering cycle with actual temperatures and hold times for each heat number
- CE certificate under EN 10210 for equivalent grade supply to European-regulated projects
- ISO 9001:2015 quality management certificate covering seamless alloy pipe production processes
- SGS or BV third-party inspection report available for pre-shipment chemistry and dimensional verification
- Material traceability documentation linking each pipe to its heat number, with test reports cross-referenced to mill production records
Packaging, Loading & Delivery

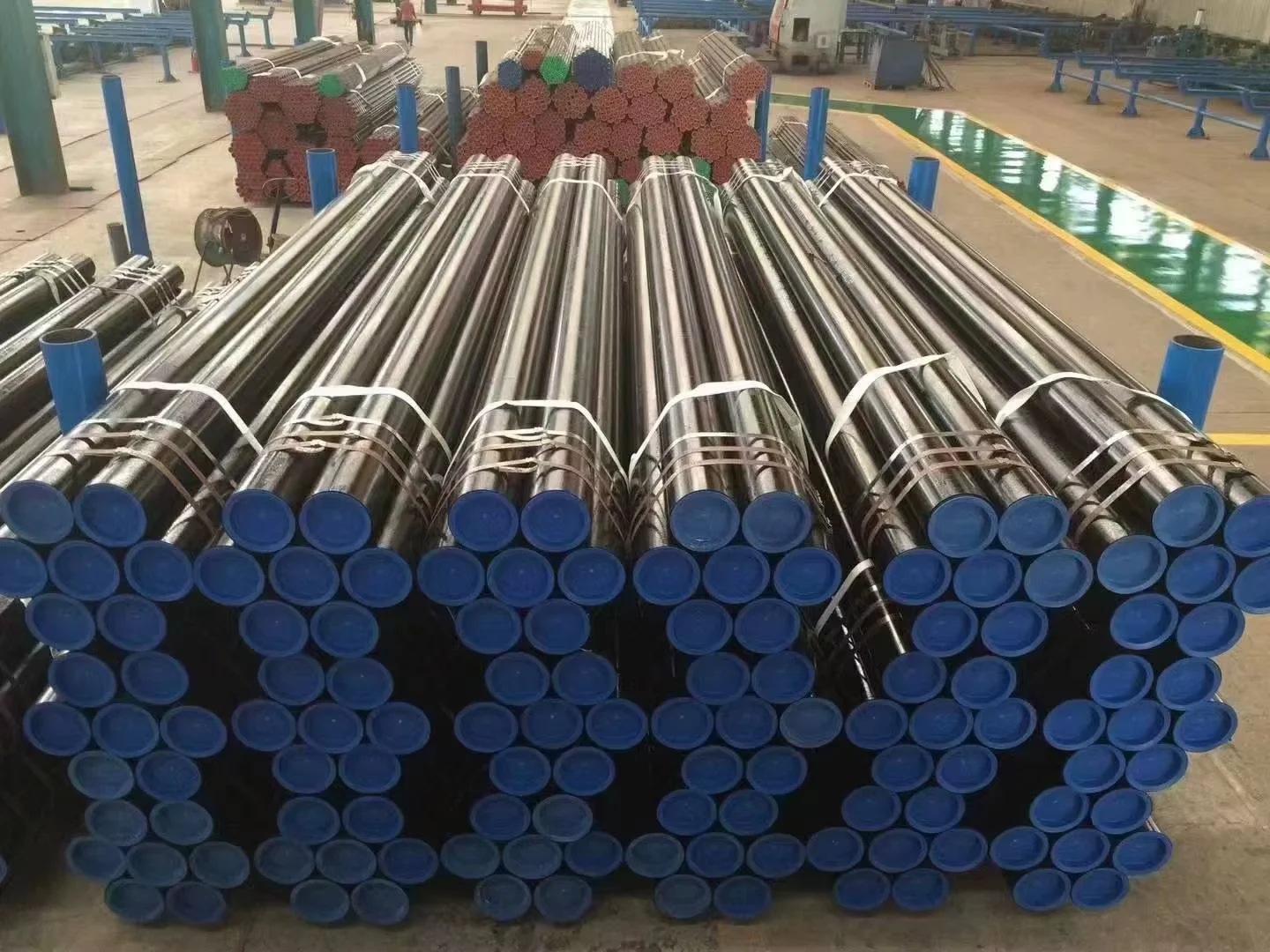

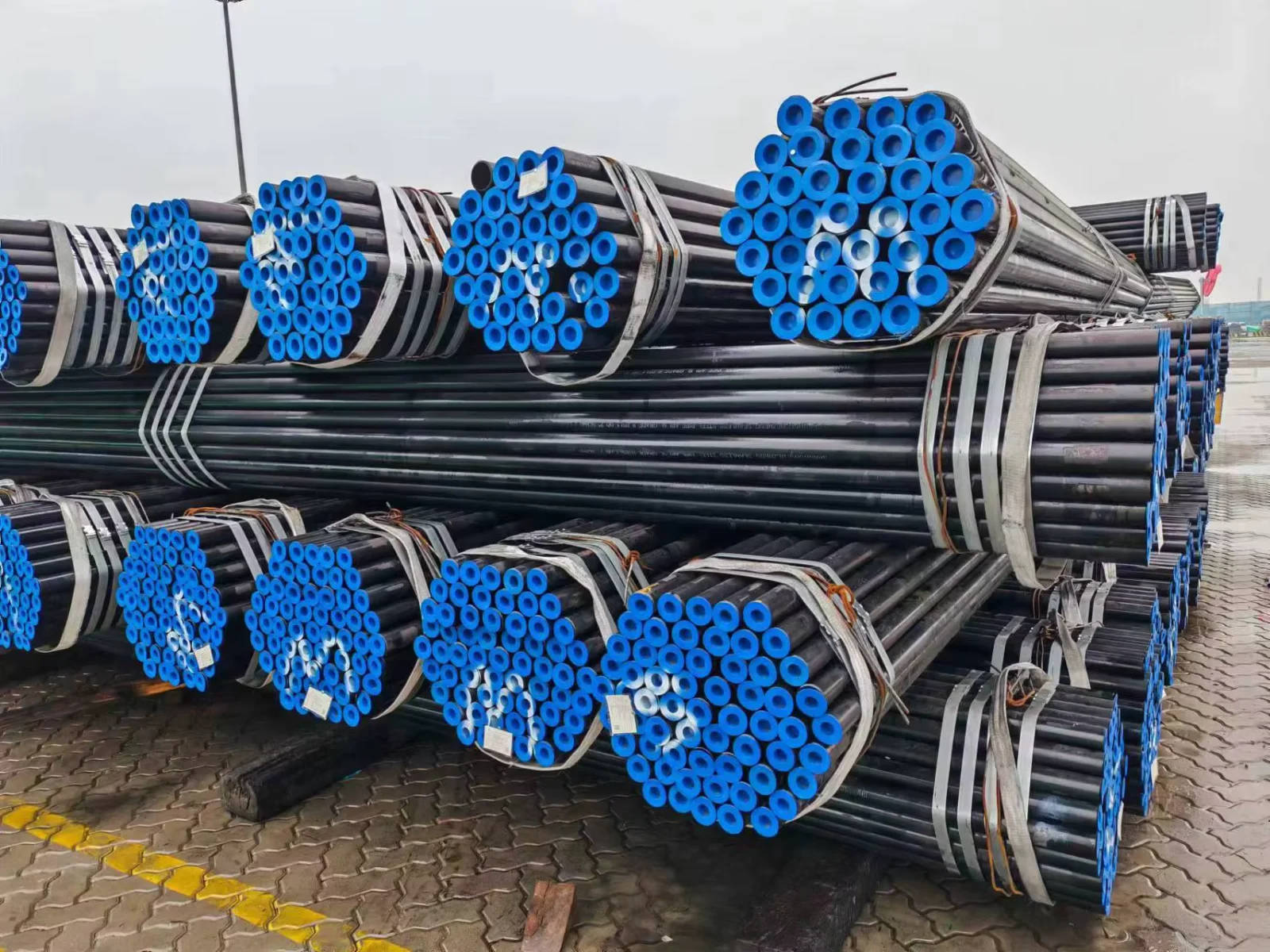

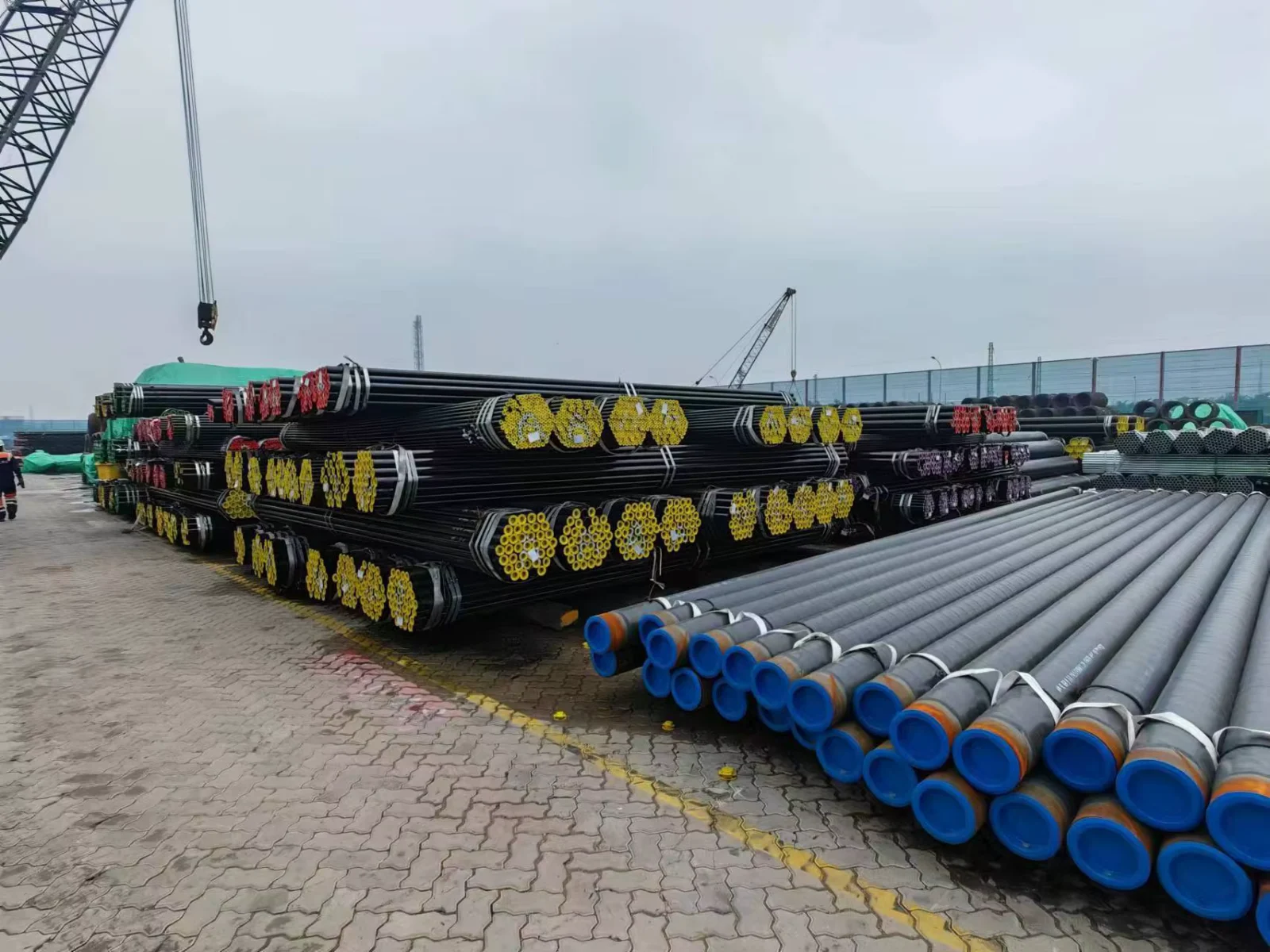

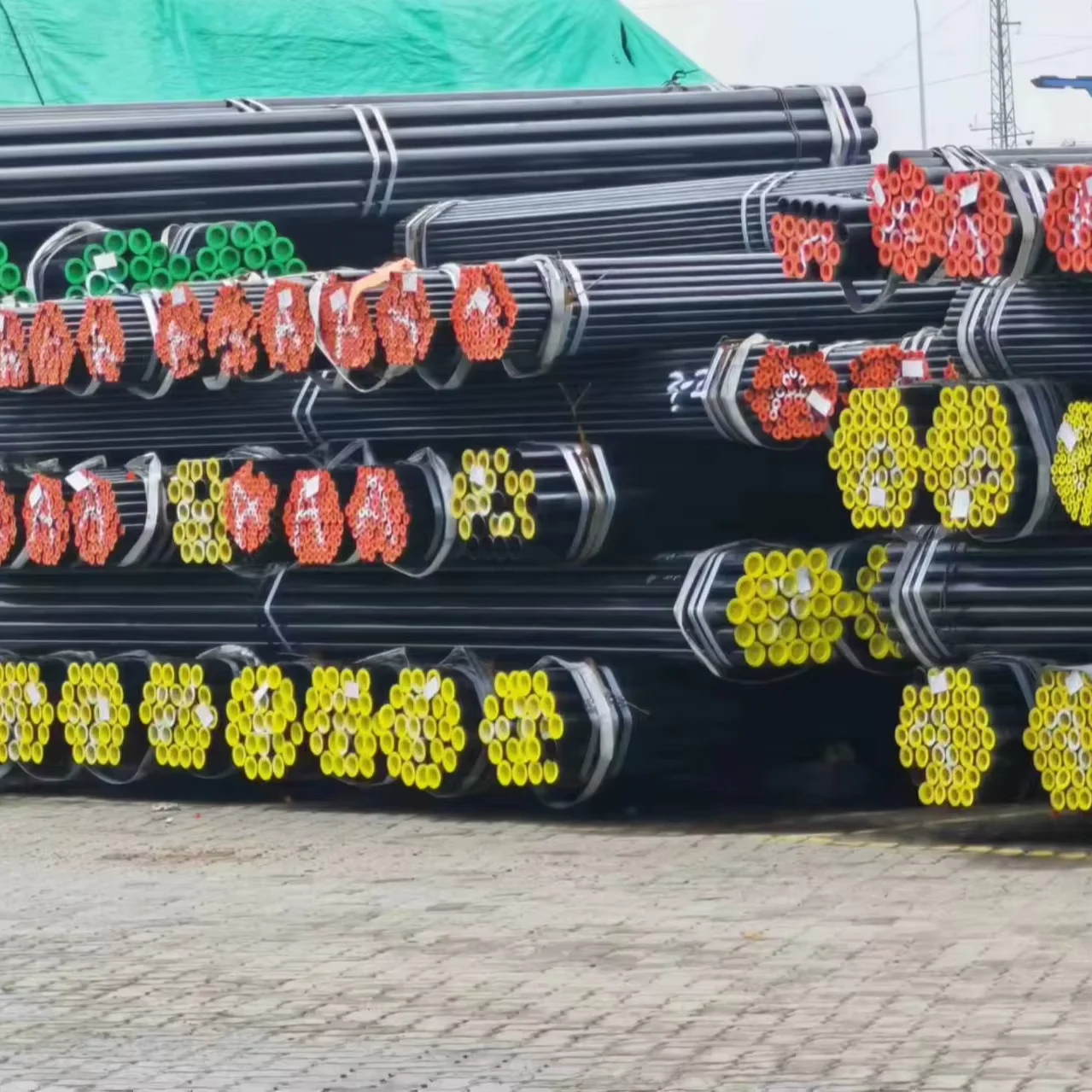

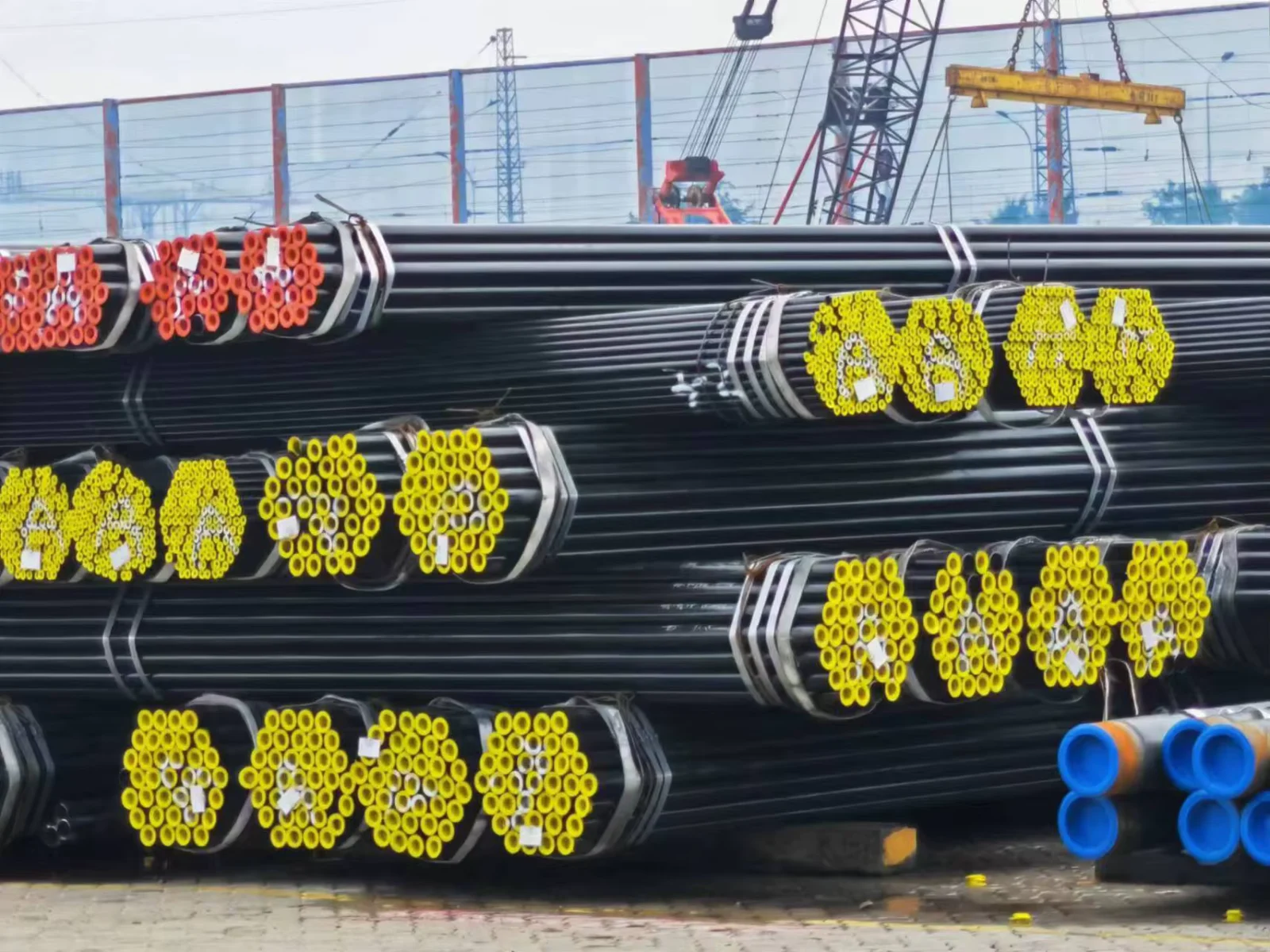

- Slightly oiled ASTM A335 P11 seamless alloy steel pipe bundled with steel strips and edge protectors to prevent surface damage and maintain oil film integrity during ocean transit
- Beveled ends fitted with plastic protectors to preserve welding preparation geometry for SCH160 heavy-wall pipe in 12 m lengths
- Container loading optimized for 6 m and 12 m lengths with timber chocking and steel cradle support to prevent ovality deformation in large-diameter pipe above 500 mm OD
- Heat number stenciled on each pipe end alongside steel grade designation A335 P11 for positive identification at site
- FOB, CIF, and DDP shipping terms available with complete customs documentation including packing list, bill of lading, and certificate of origin
- Custom cutting to non-standard lengths available for project-specific spool fabrication requirements
Securing Verified Alloy Pipe Supply for Your Project
Submit your ASTM A335 P11 seamless alloy steel pipe requirements including outer diameter, wall thickness schedule, total quantity, and destination port to receive a detailed quotation with mill test certificate sample and production lead time. For projects requiring SCH160 heavy-wall configuration or non-standard dimensions, our engineering team provides technical review and feasibility confirmation within 12 hours. Third-party inspection arrangements and certification documentation can be confirmed at inquiry stage to align with your project procurement specifications.
Frequently Asked Questions
Q: What is the difference between A335 P11, P22, and P91 for high-temperature service?
A: A335 P11 contains 1.25Cr-0.5Mo and serves temperatures up to approximately 600°C. P22 increases chromium to 2.25Cr-1Mo for higher temperature and improved oxidation resistance. P91 is a 9Cr-1Mo-V-Nb martensitic grade designed for temperatures up to 620°C with significantly higher creep strength. Grade selection depends on design temperature, pressure, and service environment per ASME B31.1 or B31.3.
Q: Can you provide mill test certificates with full chemical composition for A335 P11?
A: Yes, every heat of ASTM A335 P11 seamless alloy steel pipe is tested in our in-house laboratory and supplied with EN 10204 3.1 mill test certificates documenting full chemical composition including chromium, molybdenum, carbon, manganese, silicon, sulfur, and phosphorus content, along with tensile test results and hardness values.
Q: Do you offer non-standard wall thickness and outer diameter combinations?
A: Yes, our production covers outer diameters from 21.3 mm to 1420 mm with wall thickness up to 300 mm. Custom non-standard dimensions are available with low minimum order quantities. Technical review confirms feasibility based on your specific size requirements.
Q: What heat treatment condition is supplied for A335 P11 pipe?
A: ASTM A335 P11 requires full annealing, or normalizing and tempering, or subcritical annealing heat treatment. We supply P11 pipe in normalized and tempered condition as standard, with actual heat treatment parameters documented on the mill test certificate.
Q: Is third-party inspection available before shipment?
A: Yes, we arrange third-party inspection by SGS, BV, or Lloyd’s at our facility prior to shipment. Inspection scope includes visual examination, dimensional verification, spectrochemical analysis, and mechanical testing as required by your purchase order or project specification.
