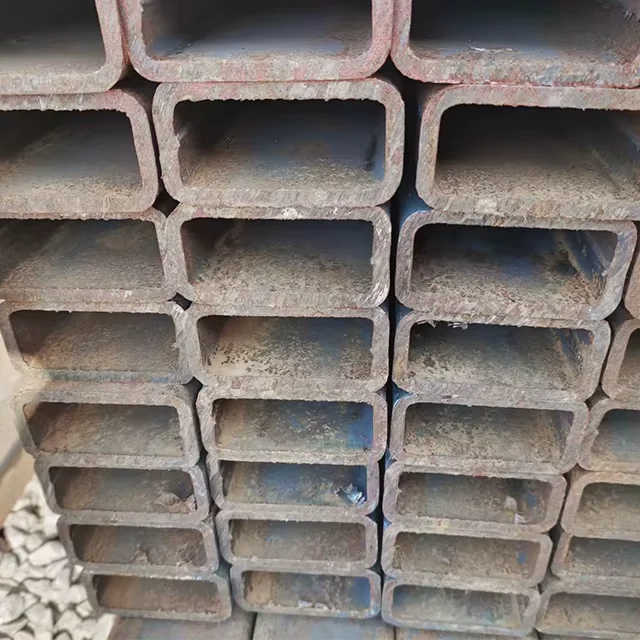

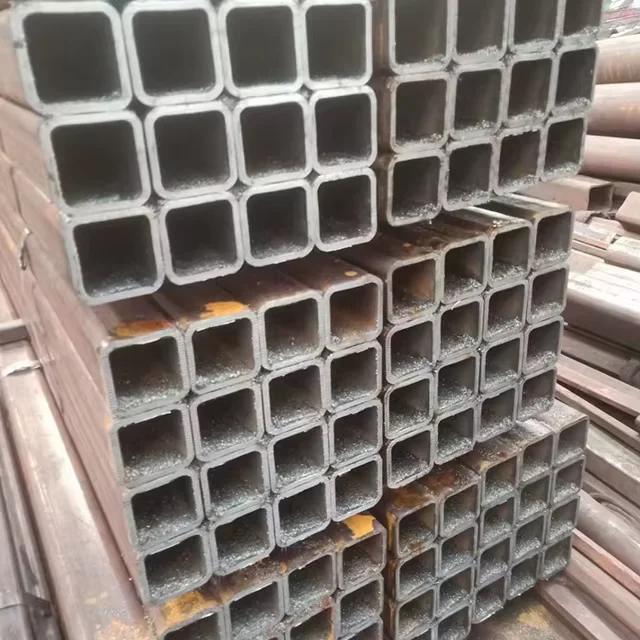

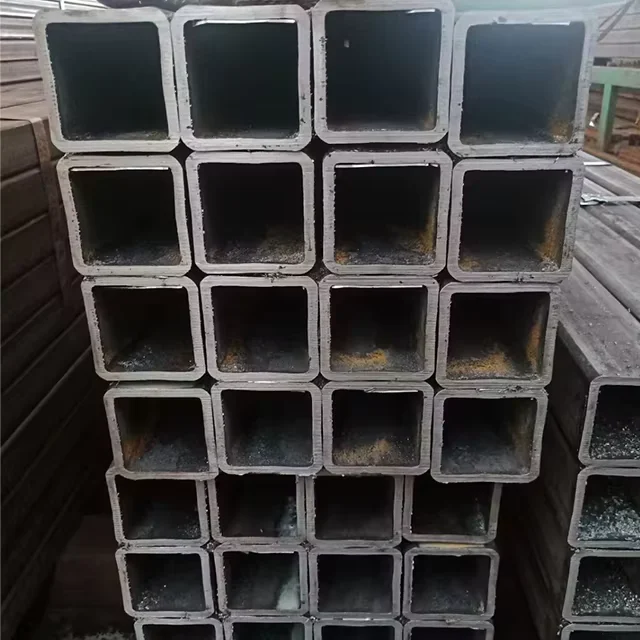

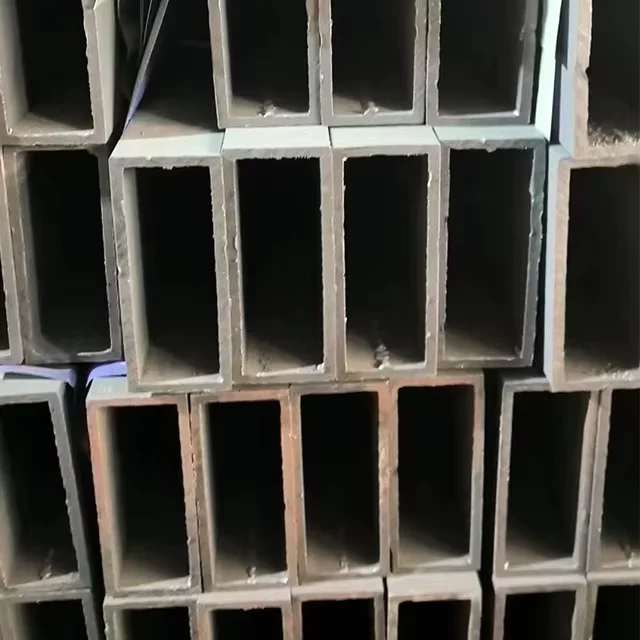

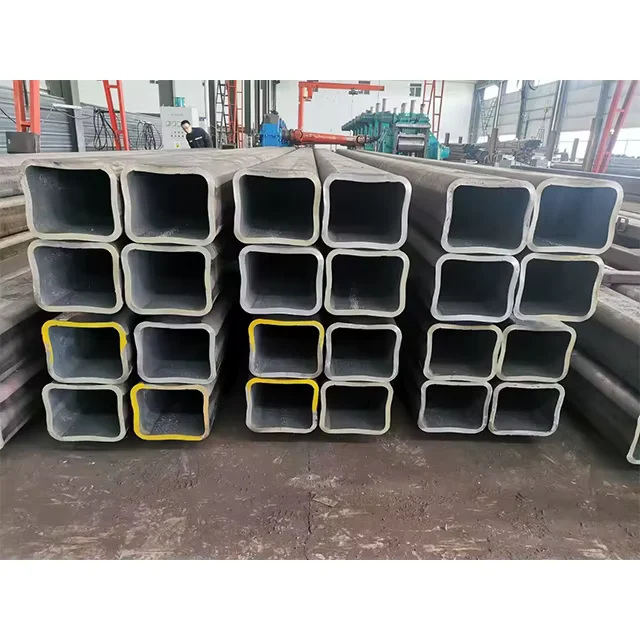

S235 S355 Welded Square Steel Tube 10×10-600x600mm CE Certified Supplier

Description

Direct Mill Supply for S235 S355 Welded Square Steel Tube — Every batch undergoes in-house laboratory testing for wall thickness and mechanical properties before release, ensuring ±1% dimensional tolerance on ERW welded square steel tubes from 10×10 to 600×600mm.

Technical Specifications

Application Suitability

What Wall-Thickness Tolerance Costs on a Structural Frame Order

A 0.5mm negative deviation on a 30-ton frame order means rejected inspection, rework delays, and potential structural recalculation.

I once saw a batch of 200×200×8 square tubes arrive on-site where third-party measurement showed actual wall thickness at 6.8mm — well beyond acceptable negative tolerance. The entire shipment was rejected, and the project schedule slipped two weeks. For S235 S355 welded square steel tube orders destined for load-bearing frames, dimensional accuracy is not a specification detail — it is the difference between passing inspection and scrapping cargo. When buyers source from mills without in-house testing, they inherit the risk of every unmeasured piece [NEED_CITE: EN 10219 cold-formed welded structural hollow section dimensional tolerance requirements].

How ERW Welded Square Tubes Match Structural Frame Requirements

The ERW welding process produces a continuous longitudinal seam that, when properly controlled, delivers consistent strength across the entire tube length. For S235 S355 welded square steel tube applications in steel structures and machinery frames, the flat side surfaces and precise 90° corner geometry allow direct bolted or welded connections without additional gusset plates. Our production lines cover 2,800+ specifications, meaning a single order can combine multiple sizes for a complete building frame without splitting procurement across suppliers.

Meeting Engineering Codes and Export Compliance

Structural hollow sections used in EU construction must conform to EN 10219 for cold-formed welded profiles, while North American projects typically reference ASTM A500. The S235 S355 welded square steel tube we produce carries CE certification under EN 10219/10210, allowing direct customs clearance across European ports. For projects in Southeast Asia and the Middle East, equivalent grade mapping between Q-series and S-series standards prevents material substitution errors during engineering approval [NEED_CITE: steel grade equivalence mapping between GB EN and ASTM standards for structural hollow sections].

Steel Grade Selection and ERW Process Fundamentals

S235 and S355 represent increasing yield strength levels within the European structural steel system — S355 delivers higher load-bearing capacity for heavy structural frames, while S235 serves general construction and scaffolding applications. The Chinese Q235 and Q345 grades follow a parallel classification under GB standards, with Q345 closely matching S355 in mechanical performance. ERW welding forms the square profile from coiled strip through progressive forming rolls and high-frequency resistance welding, producing a clean internal seam suitable for structural use without the cost premium of seamless alternatives. Surface treatment options — pre-galvanized for indoor or mild environments, hot-dipped galvanized for outdoor or corrosive conditions — extend service life without additional field coating. Wall thickness tolerance of ±1% ensures that theoretical weight calculations match actual delivered weight, preventing cost disputes on tonnage-based invoicing [NEED_CITE: ERW versus seamless versus SSAW steel pipe manufacturing process comparison].

Hidden Costs of Procuring Without Verified Tolerance

Ordering S235 S355 welded square steel tube from unverified sources introduces three categories of hidden cost. First, excessive negative tolerance reduces actual load-bearing capacity below engineering design assumptions, triggering failed third-party inspection at destination. Second, missing or incorrect CE documentation blocks EU customs clearance, generating demurrage charges and project delays. Third, inconsistent steel grade delivery — receiving Q195 material when S355 was specified — compromises structural integrity and forces costly on-site replacement. Engineering codes reference specific grade properties; substituting without documentation voids design certification [NEED_CITE: consequences of steel grade mismatch in structural construction projects].

Why Buyers Source S235 S355 Welded Square Steel Tube From Our Mill

We operate three dedicated production lines covering square and rectangular tubes from 10×10 to 600×600mm with wall thickness up to 30mm, eliminating the need to consolidate orders across multiple mills. Every batch passes through our in-house physical and chemical laboratory before shipment — wall thickness, yield behavior, and chemical composition are verified against the purchase specification, not sampled by assumption. Our 41 invention patents include China’s original sharp-corner rectangular tube technology, delivering true 90° edges for architectural facade applications where standard rounded-corner tubes fail aesthetically. Full international certification — ISO 9001:2015, Lloyd’s CE under EN 10219/10210, Singapore FPC, and SGS/BV verification — supports customs clearance in 50+ export destinations. Custom non-standard sizes are available with low MOQ, and professional container loading with anti-damage measures prevents the bending and surface scratches that trigger rejection at destination ports.

Documentation & Compliance

• Mill Test Certificate documenting S235 or S355 chemical composition and mechanical properties per EN 10219, traceable by heat number
• CE certificate under EN 10219/10210 for cold-formed welded structural hollow sections, required for EU market entry
• ISO 9001:2015 quality management certificate covering the full production and inspection process
• SGS or BV third-party inspection report available upon request, covering dimensional verification and visual examination
• Material traceability linking each tube to its heat number and production batch for engineering audit compliance
• Complete customs documentation including packing list, bill of lading, and certificate of origin for the destination country

Packaging, Loading & Delivery

• Welded square steel tubes bundled with steel strips and edge protectors, preserving pre-galvanized or hot-dipped galvanized coating during ocean transit
• Bare or oiled tubes packed in seaworthy bundles with moisture barriers to prevent surface oxidation during container shipping
• Container loading optimized for 5.7m and 6m lengths, maximizing payload per 20ft and 40ft units while preventing tube deformation
• Custom cut-to-length service available for non-standard project dimensions, with cut ends deburred and protected
• Heat number and steel grade stenciled on each bundle for on-site identification and inspection traceability
• Shipping terms available as FOB, CIF, or DDP with full export documentation and tracking through delivery

Start Your S235 S355 Welded Square Steel Tube Inquiry

Submit your required dimensions, steel grade, surface treatment preference, quantity, and destination port — we respond within 12 hours with a detailed quotation including unit pricing, production lead time, and applicable certifications. For non-standard sizes or sharp-corner architectural requirements, our engineering team provides custom feasibility assessment and sample arrangement before order confirmation.

Request Your Quotation and Mill Test Certificate

Send your specifications to admin@sdxjypipe.com or contact us via WhatsApp at +86 188 5315 7756 for pricing, certification review, and delivery scheduling.
