Description
Full-Range Channel Steel Sourcing Under One Roof — From 5# to 40# in Q235B and Q345B grades, hot rolled to GB and JIS dimensions with galvanized, painted, or black finish options ready for structural and solar projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B U/C Channel Steel |
| Product Type | U Channel / C Channel |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | GB, JIS, AISI, ASTM, BS, DIN, EN |

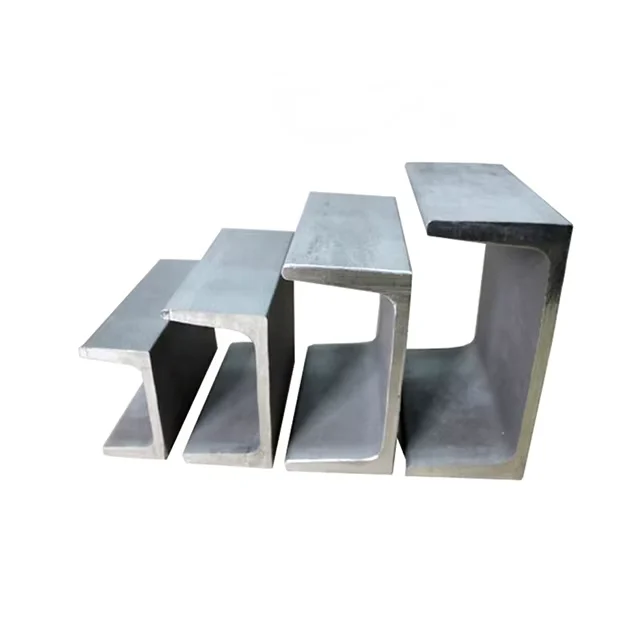

| Section Shape | U Shape / C Shape |
| Size Range | GB: 100×48mm (5#) – 400×102mm (40#); JIS: 50×25mm – 250×90mm |
| Length | 1–12m / Customized |
| Technique | Hot Rolled |
| Surface Treatment | Black / Bright / Galvanized / Painted |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structures, vehicle manufacturing, industrial structures, solar mounting brackets |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Steel frame bracing, purlin systems, mezzanine floor supports paired with I-beam |
| Solar Energy | C-channel mounting rails and U-channel base brackets for ground-mount and rooftop PV systems |
| Industrial Fabrication | Conveyor frames, equipment platforms, machine base structures |
| Vehicle Manufacturing | Chassis reinforcement members, trailer cross-members |
| Infrastructure | Bridge walkway supports, utility pole base frames |
What Happens When Channel Steel Arrives at Site With the Wrong Grade
Grade substitution on a structural frame order triggers re-inspection, re-welding, or outright rejection by the supervising engineer.
I once watched a solar EPC crew in Southeast Asia unload a container of C-channel only to find the mill test certificate listed a commercial grade instead of the specified structural grade. The entire batch had to be quarantined while the project engineer demanded proof of equivalence. Two weeks of delay, air-freighted replacement material, and a damaged relationship with the main contractor — all because nobody verified the grade mapping before the ship left port [NEED_CITE: steel grade equivalence mapping between GB, JIS, and EN standards]. When you source Q235B Q345B U C channel steel supplier materials for load-bearing frames, the paperwork must match the physical product exactly, or customs and site inspectors will not let it pass.
How Hot Rolled Channels Match Structural and Solar Load Requirements
Hot rolled U and C channels in Q235B and Q345B grades carry the dimensional consistency that solar mounting rails and building purlin systems demand. The ±1% tolerance on leg length and web height means bracket connections seat flush without field grinding, while the 1–12m length range covers standard bay spacing without intermediate splicing. For solar projects in coastal or high-humidity zones, the galvanized finish option resists salt spray corrosion over a 25-year design life, while black or painted finishes serve indoor industrial structures where appearance and cost take priority over corrosion resistance. As a Q235B Q345B U C channel steel supplier, we roll each batch to verified GB and JIS dimensional profiles so that your structural calculations hold true from design to installation.
Engineering Compliance and Certification Pathways
Structural channel steel entering the EU market must carry CE marking under EN 10210 or EN 10219, with a Declaration of Performance referencing the correct execution class [NEED_CITE: EN 10210 hot finished structural hollow section certification requirements]. For projects governed by AISC or AWS standards, the Q345B grade maps closely to ASTM A572 Gr.50 in yield behavior, but the mill test certificate must explicitly state the governing standard — a generic “equivalent” notation will not satisfy a rigorous QA inspector. In Southeast Asia and the Middle East, JIS-dimension channels in SS400 grade remain the default specification for industrial sheds and pipe rack supports. Our in-house physical and chemical laboratory tests every heat for composition, tensile strength, and dimensional accuracy before release, ensuring that the certificate traveling with the cargo matches the steel in the container.
Understanding Q235B vs Q345B vs SS400 for Your Project

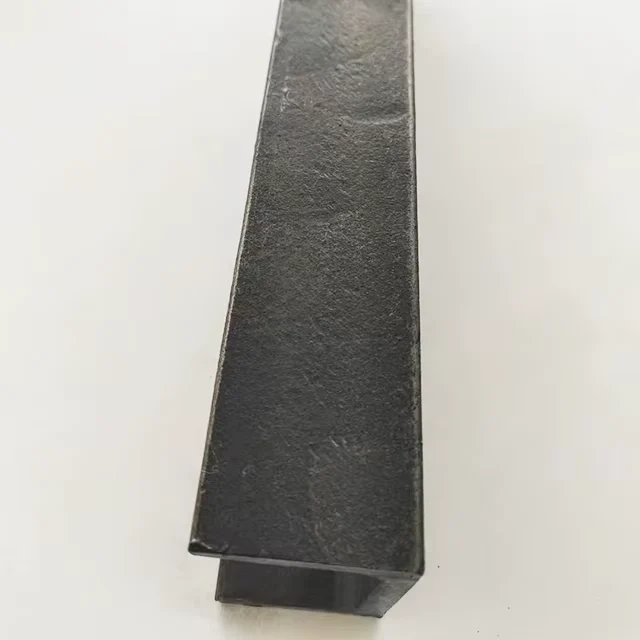

The Q-series grading system under GB/T 700 and GB/T 1591 assigns yield strength tiers: Q235B provides adequate strength for non-critical bracing, purlins, and light-duty solar rails, while Q345B delivers higher yield for primary load-bearing members where deflection limits are tighter. SS400 under JIS G 3101 occupies a similar general-purpose structural tier, widely accepted across Japan-influenced specifications in Southeast Asia. The hot rolling process produces a mill scale surface on black finish channels, which accepts shop primer or galvanizing without additional surface preparation. When wall thickness and leg dimensions fall within the ±1% tolerance band, the theoretical weight per meter stays consistent — critical for shipping cost estimation and structural dead-load calculations. Selecting the correct grade is not just a paperwork exercise; it determines whether your frame passes the engineer’s first inspection or gets flagged for re-testing.
The Hidden Cost of Unverified Channel Steel Procurement
Ordering channel steel without confirmed grade equivalence or certified mill test documentation creates a cascade of downstream costs. A shipment arriving at the destination port with mismatched certificates faces customs holds, third-party re-inspection fees, and potential rejection by the project owner’s QA team [NEED_CITE: import documentation requirements for structural steel in EU and GCC markets]. Negative tolerance abuse — where actual wall thickness falls below the specified minimum — reduces load capacity and voids the structural engineer’s design assumptions, forcing costly reinforcement or complete member replacement. On solar mounting projects, even minor dimensional deviation in C-channel rails causes clamp misalignment, slowing installation and increasing labor costs across thousands of connection points.
Why Project Teams Source Q235B Q345B U C Channel Steel From Us
Our production covers the full GB range from 5# through 40# and JIS dimensions from 50×25mm to 250×90mm, meaning your structural bill of materials can be fulfilled from a single heat-traceable source rather than pieced together from multiple mills. We maintain ISO 9001:2015 certification, Lloyd’s CE marking under EN 10210/EN 10219, and Singapore FPC approval — documents that clear customs in regulated markets without supplementary paperwork battles. Every order ships with a mill test certificate generated from our own laboratory’s chemical and mechanical test results, not a forwarded document from a trading desk. For non-standard lengths or custom punching patterns, we process in-house rather than subcontracting, keeping lead times predictable and quality traceable. Professional container loading with anti-damage measures prevents the bending and surface scoring that plagues long-length channel shipments.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB/T 700 or GB/T 1591
- CE certificate under EN 10210/EN 10219 for shipments entering EU and EEA member states
- ISO 9001:2015 quality management system certificate covering hot rolled channel production
- SGS or BV third-party inspection report available upon request for pre-shipment verification
- Heat number traceability linking each bundle to its original ladle analysis and rolling record
- Full customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot rolled black finish Q235B and Q345B channels bundled with steel strips and padded edge protectors to prevent surface scoring during ocean transit
- Galvanized C-channel and U-channel packed with waterproof interleave separators to preserve zinc coating integrity across 1–12m lengths
- Container loading optimized for 5#–20# channels in 6m and 12m lengths, maximizing payload per 20ft and 40ft open-top or flat-rack units
- Custom cut-to-length service available for solar mounting projects requiring precise rail lengths with punched hole patterns
- Heat number and grade stenciled on each bundle tag for site-level material identification and QA traceability
- FOB, CIF, and DDP shipping terms supported with door-to-door logistics coordination to 50+ countries
Start Your Channel Steel Procurement With Verified Documentation
Submit your bill of materials specifying channel type (U or C), GB or JIS size designation, steel grade, surface treatment preference, total tonnage, and destination port — we return a detailed quotation with unit pricing, production timeline, and available mill test certificate formats within 12 hours. For non-standard dimensions or custom processing requirements, our engineering team provides a feasibility assessment and sample arrangement before you commit to a production order.
Request Your Quotation and Mill Test Certificate Today
Send your specifications to admin@sdxjypipe.com or reach us via WhatsApp at +86 188 5315 7756 to begin your Q235B Q345B U C channel steel supplier inquiry with full documentation support.
Frequently Asked Questions
Q: What is the difference between Q235B and Q345B for channel steel applications?
A: Q235B is a general-purpose structural grade suitable for bracing, purlins, and light-duty supports, while Q345B offers higher yield strength for primary load-bearing members where deflection control is critical. Both grades are hot rolled and available in U and C profiles across the full GB size range.
Q: Can you supply channel steel in JIS dimensions for Southeast Asian projects?
A: Yes, we produce both GB standard channels from 5# to 40# and JIS standard channels from 50×25mm to 250×90mm. Mill test certificates reference the governing standard, and we can provide grade equivalence mapping between JIS SS400, GB Q235B, and EN S235JR upon request.
Q: What surface treatment options are available for outdoor solar mounting applications?
A: We offer galvanized finish for long-term corrosion resistance in coastal and high-humidity environments, painted finish for color-matched architectural requirements, and black or bright finish for indoor industrial structures where corrosion exposure is minimal.
Q: Do your channel steel products carry CE certification for EU import?
A: Yes, our hot rolled section steel carries Lloyd’s CE marking under EN 10210/EN 10219, supported by ISO 9001:2015 quality certification and Singapore FPC approval. Full Declaration of Performance and mill test certificates are provided with every EU-bound shipment.
Q: What is the minimum order quantity for custom-length channel steel?
A: Standard sizes in Q235B and Q345B grades ship from stock with flexible quantities. Custom cut-to-length orders and non-standard dimensions are produced to order with typical production lead times; contact us with your specifications for exact MOQ and timeline confirmation.
