Description

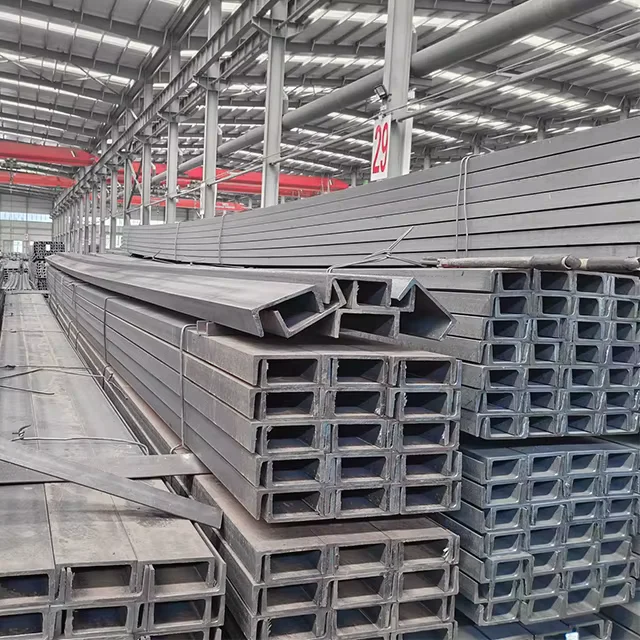

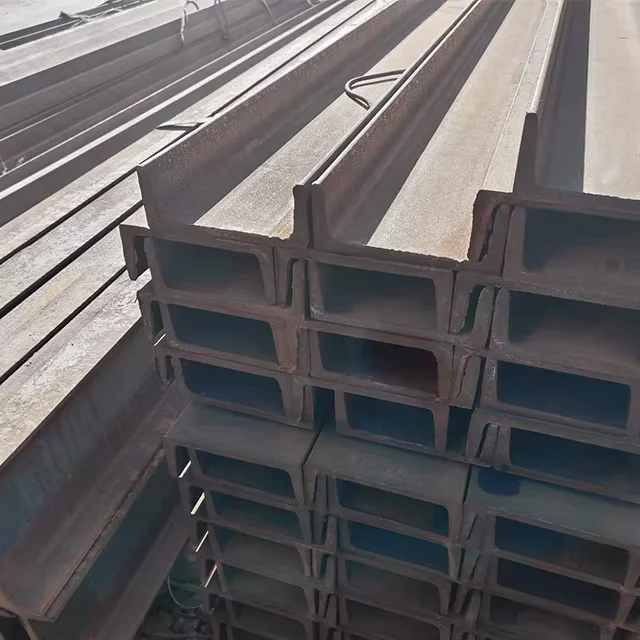

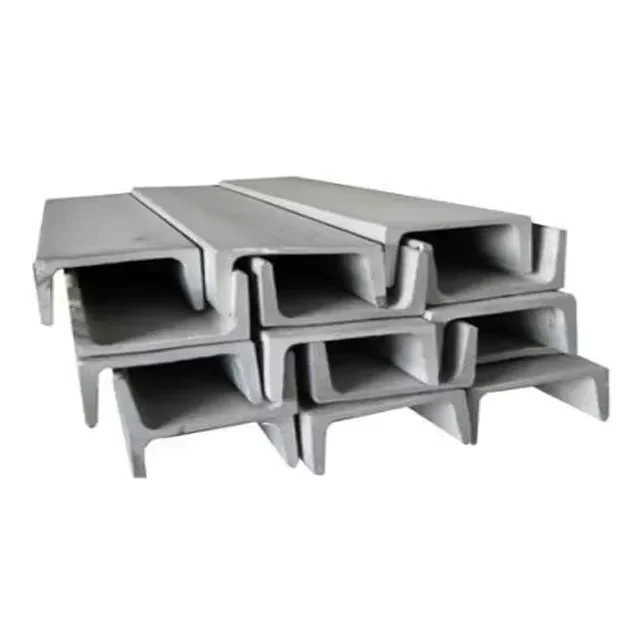

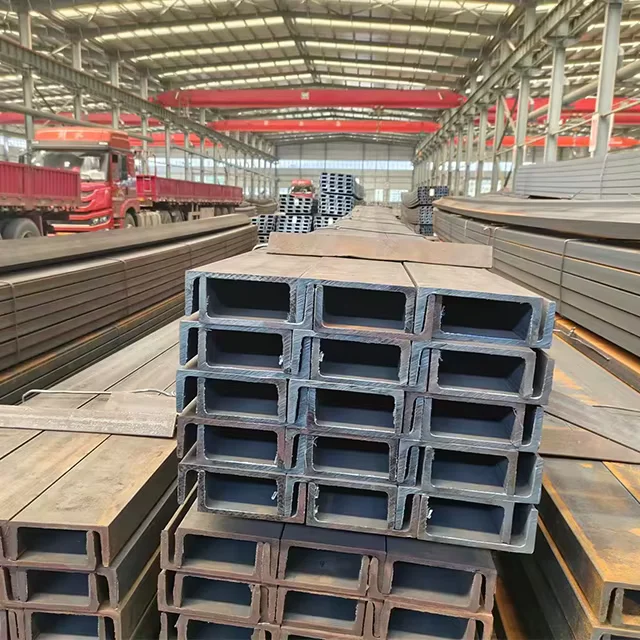

Factory-Direct U Channel Steel — Hot rolled Q235B and Q345B profiles shipped with mill test certificates and third-party inspection reports for every container.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q345B U Channel Steel |
| Product Type | U Channel Steel |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | GB, JIS, AS/NZS 3679 |
| Section Shape | U Channel |
| Size Range | GB: 10#–40# (100×48 mm – 400×102 mm); JIS: 50×25 mm – 250×90 mm |
| Length | 6 m, 12 m, or customized 1–12 m |
| Technique | Hot Rolled |
| Surface Treatment | Black, Bright, Galvanized, Painted |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structures, vehicle manufacturing, industrial structures |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Column bracing, secondary framing, purlin supports paired with I-beams |
| Vehicle Manufacturing | Chassis cross-members, cargo bed frames, trailer structural rails |
| Industrial Structures | Equipment support bases, conveyor stringers, mezzanine edge protection |
| Infrastructure | Cable tray supports, walkway stringers, pipe rack bracing |
Why Off-Standard U Channel Dimensions Create Customs and Structural Risks
Mixing GB and JIS profiles on one project without documented equivalence invites rejection at inspection.
Sourcing hot rolled U channel steel from multiple mills often means inconsistent flange widths and web thicknesses that fail dimensional checks on-site. When a Q345B channel arrives with flange dimensions that do not match the JIS drawing, the entire batch faces re-measurement, rework, or outright rejection — delaying crane schedules and triggering liquidated damages. [NEED_CITE: dimensional tolerance requirements for hot rolled steel channels in structural codes]
Matching U Channel Profiles to Structural Frame Requirements
Hot rolled U channel steel in Q235B and Q345B grades covers the strength range needed for secondary framing and bracing in mid-rise buildings and industrial sheds. The 10#–40# GB range pairs directly with standard I-beam depths, while JIS 50×25 mm through 250×90 mm profiles serve equipment skids and lighter gauge structures. Custom cut-to-length between 1 m and 12 m eliminates on-site welding for non-standard bay spacing, and the ±1% tolerance keeps bolt-hole alignment within acceptable limits for pre-fabricated connections.
Structural Compliance and Surface Protection Selection
Load-bearing calculations for U channel bracing must reference the applicable design code — GB 50017 for domestic projects, EN 1993 for European-spec structures, or AS/NZS standards for Oceania-bound shipments. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series for structural design] Galvanized finish is specified for outdoor exposure or humid industrial environments where black or bright finish would corrode within months. Painted surfaces suit indoor applications where appearance matters, while black finish remains the default for structural members that will receive fireproofing or additional coating on-site. Third-party inspection by SGS or BV before shipment confirms chemical composition and dimensional accuracy against the purchase order. [NEED_CITE: hot rolled steel channel surface treatment selection for corrosion environments]
Steel Grade Selection and Hot Rolling Process
Q235B serves general structural applications where moderate strength suffices — walkways, light bracing, and non-critical supports. Q345B delivers higher yield strength for primary framing, heavy equipment bases, and seismic-zone construction where load capacity drives section selection. SS400 bridges the gap for Japanese-spec projects common in Southeast Asia and the Middle East. Hot rolling produces the U channel profile at temperatures above recrystallization, ensuring uniform grain structure through the web and flanges. The ±1% dimensional tolerance reflects standard hot rolled practice; tighter tolerances require cold forming, which changes the product category entirely. Negative tolerance within acceptable limits reduces theoretical weight for invoicing while maintaining minimum section modulus for structural calculations.
Hidden Costs of Incorrect Grade or Missing Certification
Ordering Q235B when the structural engineer specified Q345B means the channel cannot carry the design load — requiring complete replacement, not just supplementary reinforcement. Missing mill test certificates block customs clearance in regulated markets, holding containers at port while demurrage accumulates. [NEED_CITE: customs documentation requirements for structural steel imports] Undocumented negative tolerance beyond code limits reduces actual section properties below design assumptions, creating liability exposure that surfaces only during structural audit or after a failure event.
Procurement Confidence from a Certified Single Source
Every hot rolled U channel steel shipment leaves our Jinan facility with in-house laboratory test results covering chemical composition and mechanical properties. We produce GB 10#–40# and JIS standard profiles from stock, and manufacture non-standard dimensions to order — eliminating the need to source standard and off-spec channels from separate suppliers. ISO 9001:2015 certification governs production and inspection workflows, while Lloyd’s CE marking and Singapore FPC clearance support EU and regulated-market imports. Professional container loading with timber dunnage and steel strip bundling prevents transit damage to galvanized surfaces and maintains dimensional accuracy. Export documentation including certificate of origin, packing list, and bill of lading is prepared in-house for every shipment to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591
- CE certificate covering EN 10210/EN 10219 compliance for EU market customs clearance
- ISO 9001:2015 quality management system certificate for production and inspection traceability
- SGS or BV third-party inspection report confirming dimensional accuracy and surface treatment quality before shipment
- Material traceability by heat number linking each bundle to its original steelmaking batch
- Full customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Hot rolled Q235B and Q345B U channels bundled with steel strips and edge protectors to prevent flange deformation during ocean transit

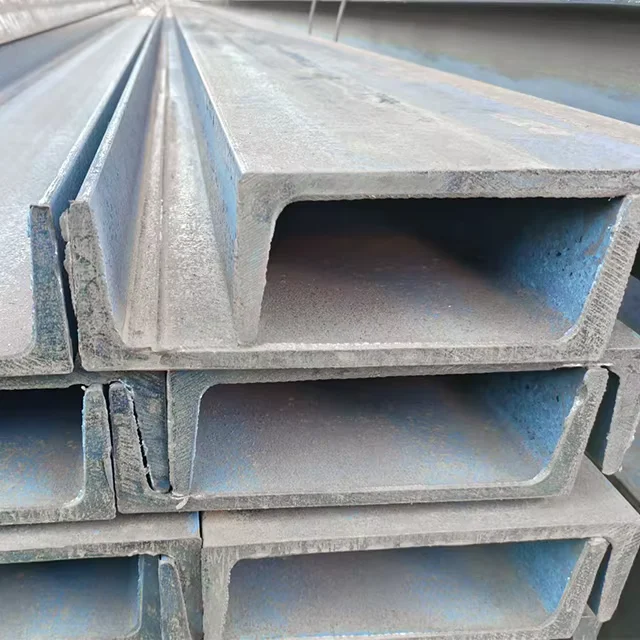

- Galvanized U channel steel packed with waterproof wrapping and separated spacers to preserve zinc coating integrity
- Custom cut-to-length channels between 1 m and 12 m loaded with timber dunnage to optimize container space and prevent shifting
- Heat number and steel grade stenciled on each bundle for on-site identification and traceability during installation
- FOB, CIF, and DDP shipping terms available with professional loading plans for 6 m and 12 m standard lengths
Start Your U Channel Steel Procurement
Submit your required steel grade, section dimensions, length, surface treatment, and destination port to receive a detailed quotation with mill test certificate samples and third-party inspection options. Non-standard sizes and custom processing including bending, welding, and punching are quoted separately with production lead times confirmed before order placement.
Request Quotation with Mill Test Certificate
Send your U channel steel specifications and quantity to receive pricing, certification documentation, and delivery timeline within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjypipe.com
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Tel: +86 531 8573 6315
Frequently Asked Questions
Q: How do Q235B, Q345B, and SS400 compare to EN S235JR/S355JR and ASTM A36/A572?
A: Q235B generally corresponds to S235JR and ASTM A36 in yield strength range. Q345B aligns with S355JR and ASTM A572 Grade 50. SS400 is a Japanese industrial standard grade with similar tensile properties to Q235B. We provide mill test certificates showing actual chemical composition and mechanical properties so your engineer can verify equivalence for your specific design code.
Q: Can you produce U channels outside GB/JIS standard ranges, and what is the MOQ?
A: Yes, we manufacture non-standard U channel dimensions including custom flange widths, web heights, and thicknesses beyond the 10#–40# GB and JIS 50×25 mm–250×90 mm ranges. Minimum order quantity depends on the specific non-standard profile and production setup. Submit your drawing or dimension sheet for a custom quotation.
Q: When should I specify galvanized versus black or painted finish?
A: Galvanized finish is recommended for outdoor exposure, coastal environments, or humid industrial settings where corrosion protection extends service life. Black finish suits indoor structural applications or members that will receive fireproofing or additional field coating. Painted finish is specified when appearance matters for visible architectural elements or when a specific color scheme is required.
Q: Do your U channels carry CE marking for EU import, and what documentation is provided?
A: Our facility holds Lloyd’s CE certification covering EN 10210 and EN 10219 standards. Every shipment to EU markets includes CE declaration of conformity, mill test certificates, and full customs documentation. Third-party inspection by SGS or BV can be arranged before shipment to verify compliance with your purchase order specifications.
Q: How is invoicing calculated — theoretical weight or actual weight?
A: Invoicing can be based on theoretical weight calculated from standard section dimensions and steel density, or on actual weighed weight at our facility before shipment. The ±1% dimensional tolerance affects theoretical weight calculations. We confirm the invoicing method in the proforma invoice before production begins so there are no surprises at delivery.
