Description

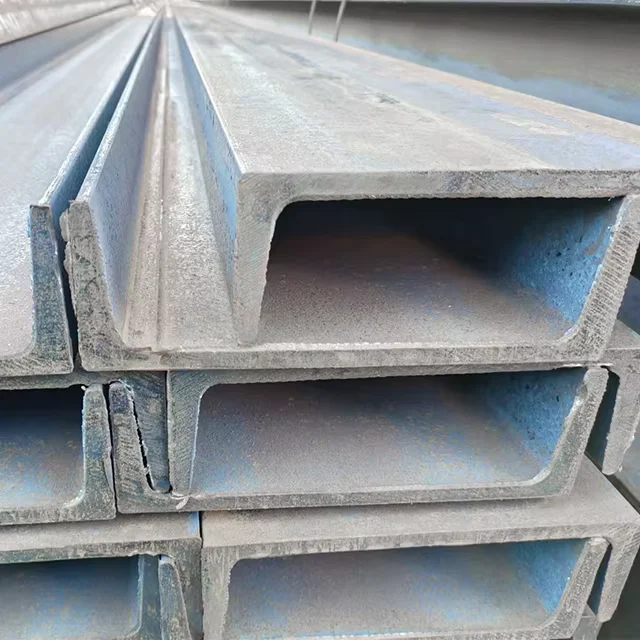

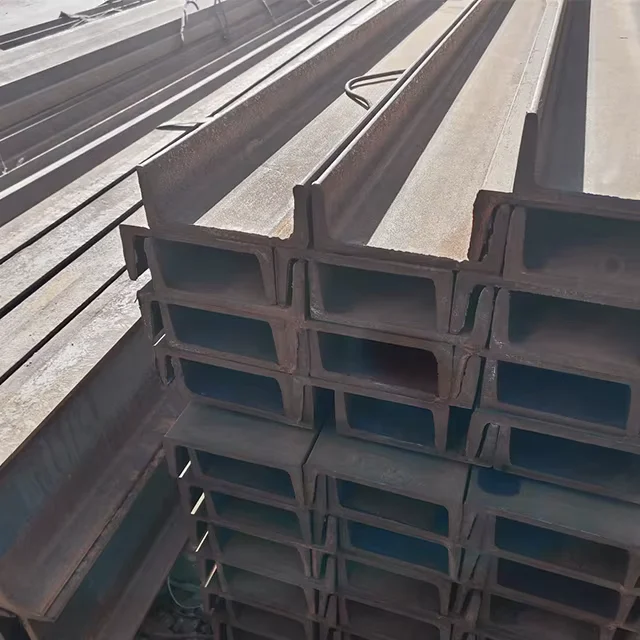

Factory-Direct Channel Steel Supply — Q235B and Q345B hot dip galvanized U/C channels rolled and galvanized in-house, shipped with full mill test certificates and third-party inspection support.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Hot Dip Galvanized U Channel Steel |
| Product Type | U Channel / C Channel |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | GB, JIS, ANSI, ASTM, BS, DIN, EN, AISI |
| Section Shape | U Channel / C Channel |
| Size Range | ANSI Unistrut type 41×41 mm; GB standard 100×48 mm – 400×102 mm; JIS standard 50×25 mm – 250×90 mm |
| Length | 1–12 m (customizable) |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized / Black / Painted |
| Tolerance | ±1% |
| Ends | Plain cut / as required |
| Processing Service | Bending, Welding, Punching, Cutting |
| Application | Building structures / Vehicle manufacturing / Industrial structures / Support framing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Structural framing for warehouses, industrial sheds, and mezzanine platforms |
| Infrastructure & EPC | Support brackets for cable trays, pipeline racks, and equipment foundations |
| Vehicle Manufacturing | Chassis sub-frames, cargo bed supports, and trailer cross-members |
| Industrial Structures | Conveyor support frames, platform stringers, and machinery mounting bases |
Mixed-Standard Sourcing Still Causes Customs Delays on Channel Steel Orders
Grade equivalence confusion across GB, JIS, and ANSI standards remains the top reason for shipment rejection at destination customs.
When a project specifies Q235B but the mill test certificate references SS400 or A36 without a formal equivalence statement, inspectors flag the material as non-conforming. I have seen entire container loads of channel steel held at port because the paperwork did not explicitly link the Chinese grade to the ASTM or JIS equivalent — even though the chemistry and mechanical performance matched. For a Q235B hot dip galvanized U channel steel supplier, issuing certificates that cross-reference EN 10204 3.1 format and declare grade mapping is not optional; it is the difference between a two-day clearance and a three-week demurrage bill. [NEED_CITE: steel grade equivalence documentation requirements for international customs]
How Hot Dip Galvanizing Extends Service Life in Structural Framing
Hot dip galvanizing deposits a metallurgically bonded zinc-iron alloy layer that outperforms paint or electroplated coatings in outdoor and industrial corrosion environments. For Q235B hot dip galvanized U channel steel used in building frames, pipeline supports, and vehicle structures, the zinc layer sacrificially protects the base steel even at cut edges and punch holes — critical when channels are drilled or welded on-site. Our in-house physical and chemical laboratory verifies coating thickness and adhesion before every shipment, ensuring the galvanized layer meets project specifications and avoids the re-galvanizing delays I witnessed firsthand on a Southeast Asian infrastructure job.
Structural Compliance and Certification for Channel Steel in Regulated Markets
Engineering norms such as EN 1993 (Eurocode 3) and AISC 360 require documented material traceability and verified mechanical properties for load-bearing channel steel. When Q235B or Q345B channels are exported to EU or North American projects, the absence of Lloyd’s CE certification or incorrect EN standard references on the mill test certificate can block installation approval. Our Q235B hot dip galvanized U channel steel ships with ISO 9001:2015 quality management documentation and Lloyd’s CE (EN 10210/10219) certification, ensuring compliance for structural framing in regulated markets. Dimensional tolerance at ±1% and in-house lab verification before dispatch further reduce the risk of on-site fit-up issues. [NEED_CITE: EN 10210 structural hollow section compliance requirements]
Steel Grade Selection and Hot Dip Galvanizing Process for Channel Applications
Q235B offers adequate yield strength for general structural framing and support applications, while Q345B provides higher load-bearing capacity for heavy-duty industrial structures and vehicle chassis components. The hot dip galvanizing process involves immersing the hot-rolled channel in molten zinc, creating a coating that typically ranges from 45 to 85 microns depending on immersion time and steel chemistry — thicker coatings deliver longer corrosion resistance in marine or chemical plant environments. SS400, the JIS equivalent of Q235B, is frequently specified for Japanese-standard projects in Southeast Asia, and our mill test certificates explicitly document this equivalence to prevent ordering errors. The ±1% dimensional tolerance ensures that channels cut to 6 m or 12 m lengths maintain consistent fit-up when welded or bolted into structural assemblies.
Hidden Costs of Sourcing Channel Steel Without Verified Coating and Documentation
Ordering Q235B hot dip galvanized U channel steel without independent coating thickness verification often results in zinc layers below project specifications — leading to premature corrosion, re-galvanizing costs, and project delays. Similarly, missing or incomplete mill test certificates force engineers to order replacement material or hire third-party testing at destination, adding significant cost and time. For a Q235B hot dip galvanized U channel steel supplier, providing EN 10204 3.1 format certificates with chemical composition, mechanical properties, and coating thickness data is essential to avoid these hidden costs. [NEED_CITE: consequences of non-compliant galvanized coating thickness in structural steel]
Why Project Teams Source Channel Steel from Xin Jiyuan
Our factory operates three dedicated production lines covering 2,800+ specifications, including Q235B and Q345B hot dip galvanized U/C channels in GB, JIS, and ANSI standards with lengths up to 12 m. Every shipment is tested in our in-house physical and chemical laboratory for dimensional accuracy, coating thickness, and chemical composition before release. We hold ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verification — ensuring that channel steel exported to EU, North America, or Middle East projects clears customs without documentation disputes. Custom non-standard sizes, bending, punching, and cutting services are available with low MOQ, and our professional container loading team uses edge protectors and anti-damage measures to preserve the galvanized coating during ocean transit. We export to 50+ countries, serving construction companies, machinery manufacturers, and steel structure firms who require reliable supply with full certifications.
Documentation & Compliance
- Mill test certificate (EN 10204 3.1 format) documenting Q235B chemical composition, yield strength, and hot dip galvanized coating thickness per batch
- Lloyd’s CE certificate (EN 10210/10219) confirming compliance for structural channel steel exported to EU markets
- ISO 9001:2015 quality management system certificate covering hot rolling and galvanizing processes
- SGS or BV third-party inspection report available upon request for coating thickness and dimensional verification
- Material traceability by heat number, with steel grade (Q235B/Q345B/SS400) and standard (GB/JIS/ANSI) clearly marked on each channel
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery
- Hot dip galvanized Q235B U/C channels bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection: galvanized channels shipped without additional oiling; black or painted channels receive anti-rust coating as specified
- Container loading optimized for 6 m and 12 m lengths, with anti-damage measures to prevent bending and surface scratches
- Custom cutting to project-specific lengths (1–12 m) available, with cut ends deburred and marked with heat number and steel grade
-唛头 and identification: each bundle labeled with steel grade (Q235B/Q345B), standard (GB/JIS/ANSI), size, length, and heat number
- Shipping terms: FOB, CIF, or DDP to 50+ countries, with professional loading and tracking until arrival
Ready to Source Q235B Hot Dip Galvanized U Channel Steel?
Submit your specifications — including steel grade (Q235B/Q345B/SS400), size, length, surface treatment, quantity, and destination port — and receive a detailed quotation with mill test certificate sample and lead time within 12 hours. We also provide custom non-standard sizes, bending, punching, and cutting services, with third-party inspection (SGS/BV) available before shipment.
Frequently Asked Questions
Q: What is the steel grade equivalence between Q235B, SS400, and A36?
A: Q235B (GB standard) is chemically and mechanically equivalent to SS400 (JIS standard) and A36 (ASTM standard). Our mill test certificates explicitly document this equivalence to prevent ordering errors and customs delays.
Q: How do you verify hot dip galvanized coating thickness?
A: Our in-house physical and chemical laboratory tests coating thickness using magnetic induction gauges on every batch before shipment. Third-party inspection (SGS/BV) is also available for independent verification.
Q: Can you supply custom non-standard sizes for U/C channels?
A: Yes, we produce custom non-standard sizes with low MOQ. Our 2,800+ specification range includes GB, JIS, and ANSI standards, and we offer bending, punching, and cutting services to project requirements.
Q: What certifications do your channel steel products carry?
A: Our channel steel is certified under ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verified. Mill test certificates are provided in EN 10204 3.1 format for every shipment.
Q: How do you ensure galvanized coating is not damaged during shipping?
A: We bundle galvanized channels with steel strips and edge protectors, and use professional container loading techniques to prevent bending and surface damage during ocean transit.
