Description

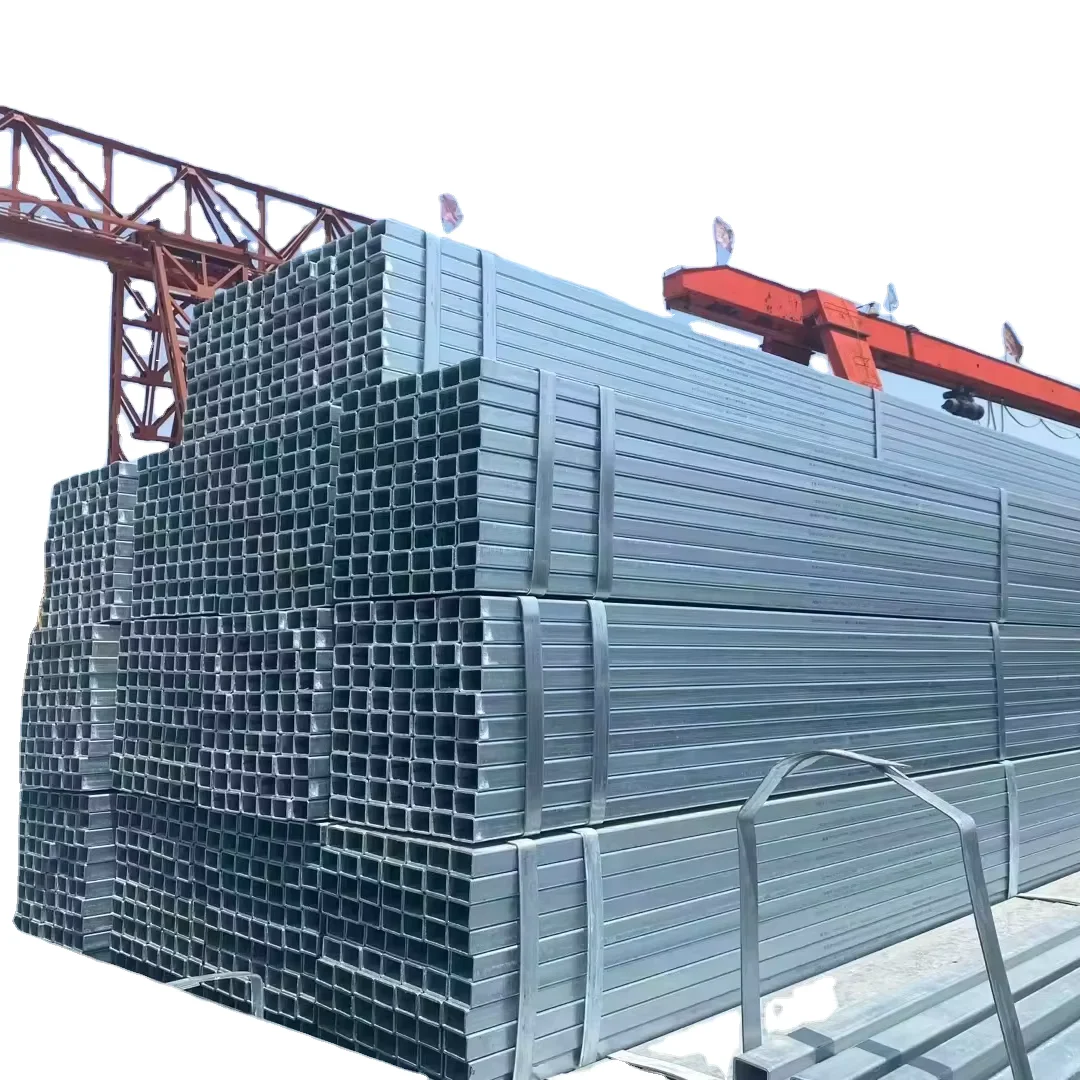

Factory-Direct Galvanized Tube Supply — Every galvanized square and rectangular steel tube we ship is verified in-house for coating thickness before container loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Square / Rectangular Hollow Section |
| Steel Grade | Q195, Q215, Q235, Q235B, Q275, Q345B, S235, S235JR, S355, S355JR, SS400, SS330, SPHC, St37, St52, A53 |
| Standard | GB/T 3091, BS 1387, ASTM A53, GB/T 14980, JIS G3444, AISI, DIN, EN 10219, EN 10210 |
| Section Shape | Square / Rectangular |
| Size Range | 15×15 mm – 4000×4000 mm |
| Wall Thickness | 0.5 mm – 40 mm |
| Length | 100 – 16000 mm |
| Technique | Hot Rolled, ERW (Welded), Seamless |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Greenhouse construction, Structural frames, Construction, Fluid transport, Fencing, Scaffolding |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Agriculture | Greenhouse framing, irrigation support structures, crop trellis systems |
| Construction | Building columns, beam-to-column connections, facade support frames |
| Infrastructure | Scaffolding uprights, fencing posts, guardrail systems |
| Utilities | Gas distribution lines, water supply mains, compressed air piping |
Where Galvanized Coating Thickness Decides Project Longevity
A 45-micron zinc layer in a humid greenhouse environment fails within one rainy season.
I once inspected a 40ft container of galvanized round pipes in Lagos where the zinc coating barely reached 45 microns. The SGS inspector rejected the entire shipment. Within months, rust had consumed the structural frames. That failure exposed a recurring gap: mills issue certificates, but few verify actual coating thickness before loading. When sourcing a galvanized square and rectangular steel tube supplier for agricultural or coastal projects, the difference between 60 microns and 40 microns determines whether the structure lasts five years or one. [NEED_CITE: hot-dip galvanized coating thickness requirements for corrosive environments]
Matching Greenhouse and Structural Frame Requirements
Greenhouse construction demands galvanized square and rectangular steel tube profiles that resist constant humidity while maintaining dimensional accuracy for glass or polycarbonate panel alignment. The hot-dip galvanizing process coats both interior and exterior surfaces, protecting against condensation-induced corrosion that pre-galvanized sheets cannot prevent. Our production lines cover wall thicknesses up to 40mm, allowing heavy-duty greenhouse ridge beams to carry snow loads without intermediate supports. The ±1% tolerance ensures that cut-to-length frames fit together on-site without forced alignment that compromises structural integrity.
Engineering Compliance and Certification Pathways
Structural frames for commercial buildings require compliance with EN 10219 for cold-formed welded structural hollow sections or EN 10210 for hot-finished profiles, depending on the manufacturing process. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements] For projects in the European Union, CE marking under these standards is mandatory for customs clearance. North American buyers typically specify ASTM A53 or A500 grades, which require different mill test certificate formats. We supply galvanized square and rectangular steel tube products with full documentation packages that match destination-country certification requirements, preventing port holds and re-inspection delays. Steel grade equivalence between Q235B, S235JR, and SS400 must be confirmed in the procurement specification to avoid material substitution disputes during final inspection.
Steel Grade Selection and Manufacturing Process
The Q-series grades (Q195 through Q345B) follow the Chinese GB standard system, where the number indicates minimum yield strength in MPa. Q235B is the most widely specified grade for general structural applications, offering adequate strength for greenhouse frames and light-duty scaffolding. The S-series (S235JR, S355JR) follows EN standards, with S355JR providing higher yield strength for heavy structural frames requiring reduced section sizes. ASTM A53 covers standard pipe grades for fluid transport applications. ERW welded tubes are cost-effective for standard sizes and wall thicknesses, while seamless options serve high-pressure fluid transport where weld integrity is critical. Hot-dip galvanizing after forming ensures complete coverage of weld seams and internal surfaces, unlike pre-galvanized strip which leaves cut edges and weld zones exposed.
Hidden Costs of Incorrect Material Specification
Ordering galvanized square and rectangular steel tube products without verified coating thickness leads to premature corrosion in humid environments, requiring complete frame replacement within months. Specifying the wrong steel grade—such as Q195 when S355JR is required—forces on-site reinforcement or full material replacement, multiplying procurement costs. Missing CE certificates or incorrect EN standard references on mill test documents trigger customs holds at EU ports, delaying project timelines and incurring storage fees. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] Negative tolerance stacking on wall thickness reduces actual load-bearing capacity below design calculations, creating structural safety risks that only surface during final inspection.
Why Procurement Teams Choose Our Supply Chain
We operate three production lines covering 2,800+ specifications, eliminating the need to source galvanized square and rectangular steel tube products from multiple suppliers for different size ranges. Our in-house physical and chemical laboratory tests every heat number for coating thickness, dimensional accuracy, and mechanical properties before shipment—no mill certificate is accepted without internal verification. Full international certifications include ISO 9001:2015, Lloyd’s CE marking under EN 10210 and EN 10219, and Singapore FPC approval. We hold 41 invention patents including China’s first sharp-corner rectangular tube technology, providing clean 90-degree corners for architectural facades where standard rounded-corner tubes create visual gaps. Third-party inspection through SGS or BV is arranged on request, with complete documentation packages prepared before container loading. Professional loading teams use edge protectors and anti-damage measures to preserve galvanized coatings during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235B or S235JR chemical composition and yield strength per GB/T 3091 or EN 10219
- CE certificate under EN 10210 for hot-finished or EN 10219 for cold-formed galvanized hollow sections
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report verifying galvanized coating thickness and dimensional tolerance
- Material traceability by heat number linking each bundle to original mill test data
- Customs documents including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Galvanized square and rectangular steel tube bundles secured with steel strips and edge protectors to prevent zinc coating damage during handling
- Seaworthy packaging with waterproof wrapping for ocean freight, protecting galvanized surfaces from salt spray exposure
- Container loading optimized for 6m and 12m lengths to maximize payload while maintaining weight distribution
- Cut-to-length service available for 100–16000 mm requirements, reducing on-site waste and labor costs
- Heat number and steel grade stenciled on each bundle for site identification and inspection traceability
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to 50+ countries
Initiating Your Procurement Process
Submit your specification sheet including section dimensions, wall thickness, steel grade, surface treatment requirements, and destination port to receive a detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates and coating thickness verification reports before container loading. Non-standard sizes and custom lengths are available with low minimum order quantities.
Request Quotation and Material Certification
Send your galvanized square and rectangular steel tube requirements to admin@sdxjypipe.com or contact via WhatsApp at +86 188 5315 7756 for technical consultation and pricing within 12 hours.
Frequently Asked Questions
Q: How do Q235B, S235JR, and SS400 compare across GB, EN, and JIS standards?
A: These grades represent equivalent yield strength levels across different standard systems. Q235B (GB) and S235JR (EN) both specify minimum 235 MPa yield strength, while SS400 (JIS) indicates minimum 400 MPa tensile strength with comparable yield properties. We provide cross-standard equivalence documentation in mill test certificates to support customs clearance and engineering approval.
Q: Can you provide Mill Test Certificates and arrange third-party inspection?
A: Yes, every shipment includes EN 10204 3.1 mill test certificates documenting chemical composition and mechanical properties by heat number. SGS or BV third-party inspection is arranged on request before container loading, with inspection reports provided alongside shipping documents.
Q: What is the minimum order quantity for custom dimensions beyond standard ranges?
A: We produce custom non-standard sizes with low MOQ requirements, covering wall thicknesses up to 40mm and lengths from 100mm to 16000mm. Specific MOQ depends on section dimensions and production scheduling—submit your requirements for detailed quotation.
Q: What is the difference between hot-dip galvanized and pre-galvanized coatings for greenhouse use?
A: Hot-dip galvanizing coats the finished tube after forming, providing complete coverage of weld seams and internal surfaces with typical coating thickness of 60-80 microns. Pre-galvanized tubes are formed from already-coated strip, leaving cut edges and weld zones with reduced protection. For greenhouse applications with constant humidity, hot-dip galvanizing provides superior long-term corrosion resistance.
Q: How are galvanized tubes packed to prevent surface damage during ocean freight?
A: Bundles are secured with steel strips and protected with edge guards to prevent zinc coating abrasion. Waterproof wrapping shields surfaces from salt spray during transit. Container loading uses wooden chocks and anti-slip measures to prevent bundle movement, preserving galvanized finish until destination.
