Description
Direct Factory Supply — Hot-dip galvanized square steel tubes produced in-house with full mill test certificates and export-ready packaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195/Q235 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB |
| Section Shape | Square |
| Size Range | 30×30mm – 914×914mm |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±5% |
| Length | Customer’s Request |
| Invoicing | By Theoretical Weight |
| Application | Steel structures / Construction frames / Scaffolding / Machinery / Furniture / Fencing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Building frames, scaffolding systems, structural columns for commercial and industrial projects |
| Steel Structure Fabrication | Load-bearing columns, beam-to-column connections, portal frame members |
| Machinery Manufacturing | Equipment frames, conveyor support structures, machine base platforms |
| Infrastructure | Fencing posts, guardrail supports, lighting pole foundations |
| Furniture & Interior | Display racks, shelving units, decorative structural elements |
Why Coating Thickness Decides Whether Your Galvanized Square Steel Tube Passes Inspection
A zinc coating that measures 45 microns instead of the specified 80 microns means the entire shipment gets rejected at destination — and re-galvanizing delays your project by months.
I learned this the hard way on a curtain wall project in Vietnam. The supplier quoted 80-micron hot-dip galvanizing for 30×30 and 40×40 small-section tubes. When the goods arrived, the third-party inspector measured 45 microns across the batch. The client rejected everything. Re-galvanizing locally cost more than the original tubes, and the two-month delay nearly killed the project timeline. [NEED_CITE: hot-dip galvanizing coating thickness standards per ISO 1461] Since then, every galvanized tube leaving our facility gets checked with a coating thickness gauge before loading — root by root. Inconsistent coating is not just a quality issue; it is a project risk that multiplies costs across logistics, labor, and schedule.
Matching Galvanized Square Tubes to Structural and Corrosion Demands
Galvanized square steel tubes in Q195 through Q345 grades cover a wide spectrum of structural requirements. Q195 and Q215 serve light-duty applications such as fencing, furniture frames, and non-load-bearing scaffolding where formability matters more than strength. Q235 handles mainstream construction framing and machinery bases. Q345 steps into heavier structural work — portal frames, crane support beams, and load-bearing columns. The hot-dip galvanizing process coats both exterior and interior surfaces with a metallurgically bonded zinc layer, providing corrosion protection that outlasts pre-galvanized alternatives in humid, coastal, or industrial environments. [NEED_CITE: corrosion protection performance comparison between hot-dip and pre-galvanized coatings]
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must comply with dimensional tolerance and material traceability requirements. For projects following GB standards, Q235 and Q345 grades provide clearly defined yield strength categories recognized across domestic and Belt & Road infrastructure projects. When the destination market requires EN or ASTM equivalence, proper mill test certificates documenting chemical composition and mechanical properties become essential for customs clearance and engineering approval. [NEED_CITE: steel grade equivalence mapping between GB Q-series and international standards] The ±5% dimensional tolerance on our ERW-produced galvanized square steel tubes ensures predictable fit-up during fabrication, reducing on-site rework. Custom cut-to-length services eliminate secondary cutting at the job site, preserving the zinc coating at cut edges when proper touch-up procedures are followed.
Understanding Steel Grades and the ERW Galvanizing Process
The Q-series grading system follows Chinese national standards where the number indicates minimum yield strength in MPa — Q195 yields at approximately 195 MPa, Q235 at 235 MPa, and Q345 at 345 MPa. This progressive strength hierarchy lets engineers select the minimum grade that satisfies structural calculations without over-specifying material costs. ERW (Electric Resistance Welded) forming creates the square profile from flat strip stock through continuous forming and high-frequency welding, producing consistent wall thickness and tight corner geometry. Hot-dip galvanizing then immerses the finished tube in molten zinc, creating a series of zinc-iron alloy layers bonded to the steel substrate. This metallurgical bond delivers coating adhesion that survives bending, cutting, and normal handling without flaking — a critical advantage over electro-galvanized alternatives where the zinc sits as a surface layer. [NEED_CITE: metallurgical bond formation in hot-dip galvanizing process] The combination of ERW precision and hot-dip durability makes these tubes suitable for both exposed architectural applications and buried or submerged structural elements.
The Hidden Costs of Buying the Wrong Galvanized Square Steel Tube
Specifying the correct steel grade and verifying coating quality before shipment prevents failures that surface only after the tubes reach the job site. Material that fails to meet the specified grade triggers engineering rejection — the entire batch becomes unusable for structural purposes regardless of whether the physical dimensions look correct. Missing or incomplete mill test certificates block customs clearance in regulated markets, stranding containers at the port while paperwork gets sorted. Coating thickness below specification accelerates corrosion in the field, leading to premature maintenance costs and potential structural safety concerns. [NEED_CITE: consequences of non-compliant steel materials in structural applications] These are not theoretical risks. They are recurring problems in international steel procurement that turn small per-ton savings into large project losses.
Procurement Confidence Through Verified Factory Capabilities
As the original inventor of sharp-corner rectangular steel tubes in China with 41 invention patents, Shandong Xin Jiyuan Special Steel Tube Co., Ltd operates three dedicated production lines covering over 2,800 specifications with wall thicknesses up to 40mm. Our in-house physical and chemical laboratory tests every production batch for dimensional accuracy, coating thickness, chemical composition, and mechanical properties before release. Full international certifications including ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verification support exports to over 50 countries. Custom non-standard sizes, cut-to-length services, and professional container loading with anti-damage measures ensure that your galvanized square steel tube order arrives in specification and on schedule. We serve as a designated supplier for major state-owned enterprises and listed companies, providing the documentation and quality assurance that project owners and engineering consultants require.
Documentation & Compliance
- Mill test certificate documenting Q195/Q235/Q345 chemical composition and mechanical properties per GB standards for each production heat
- CE certificate conforming to EN 10219 cold-formed structural hollow sections for European market compliance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for coating thickness verification and dimensional checks
- Material traceability linked to heat numbers stamped on each tube for project-level quality tracking
- Complete customs documentation including packing list, bill of lading, and certificate of origin for smooth destination clearance
Packaging, Loading & Delivery

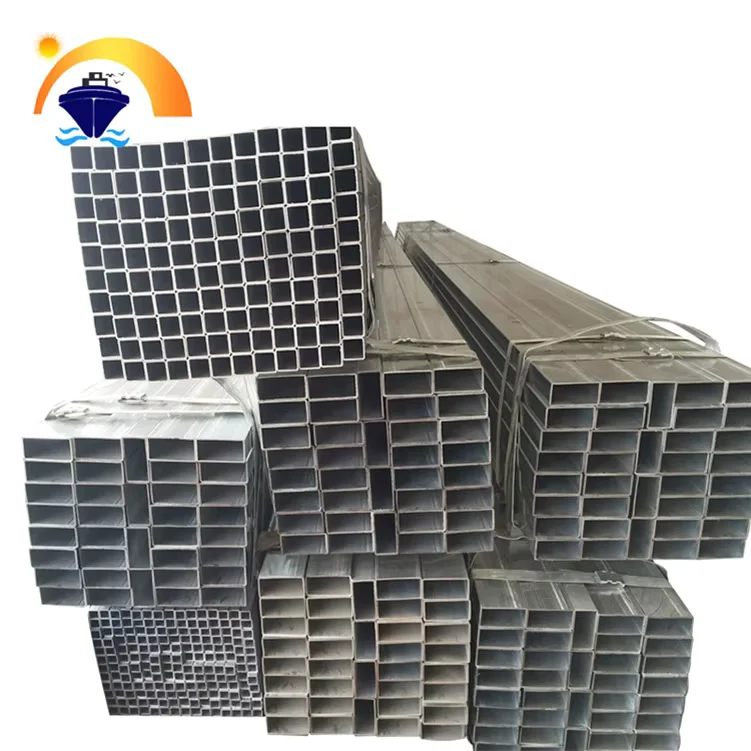

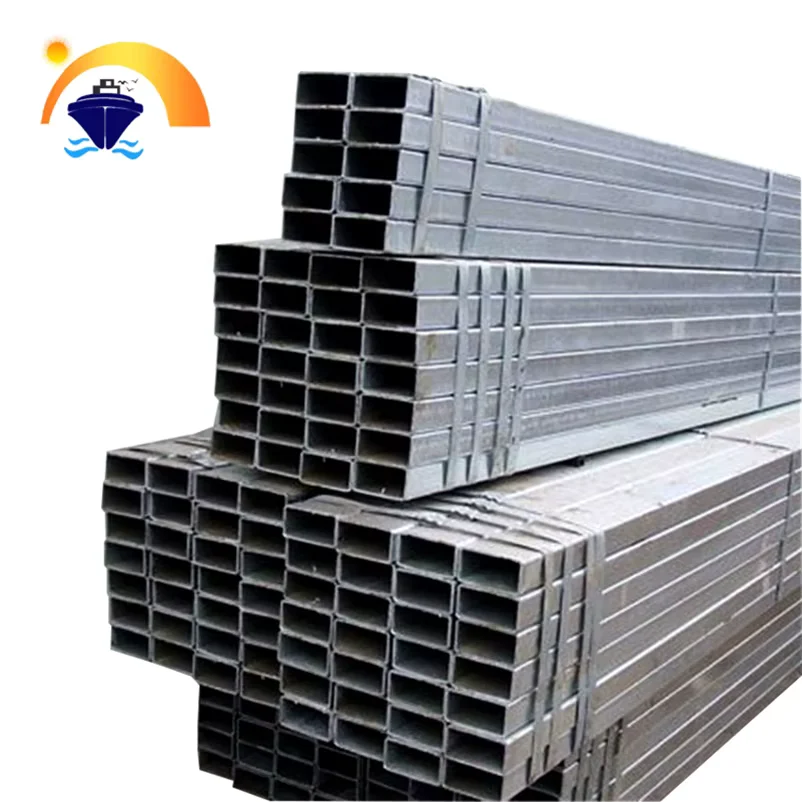

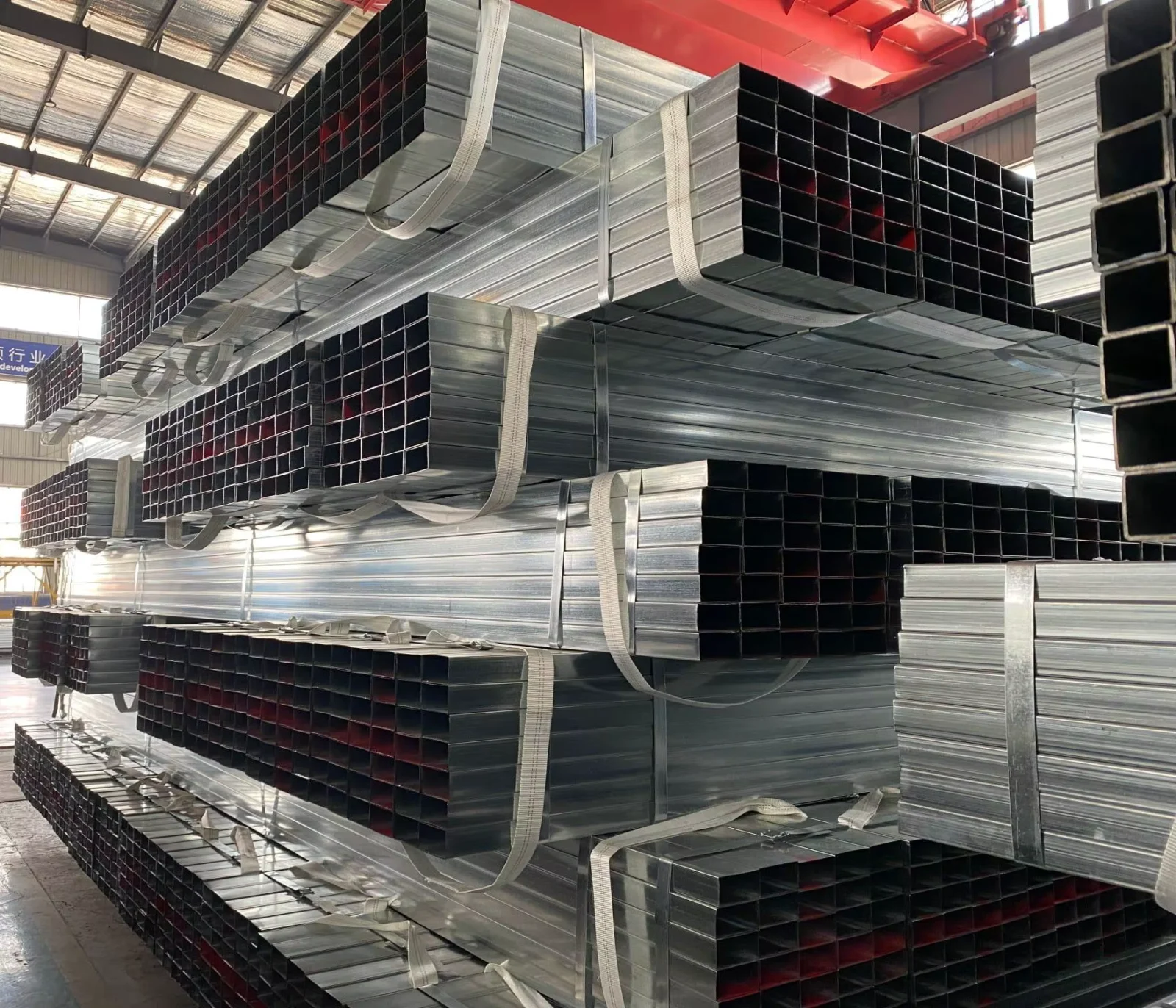

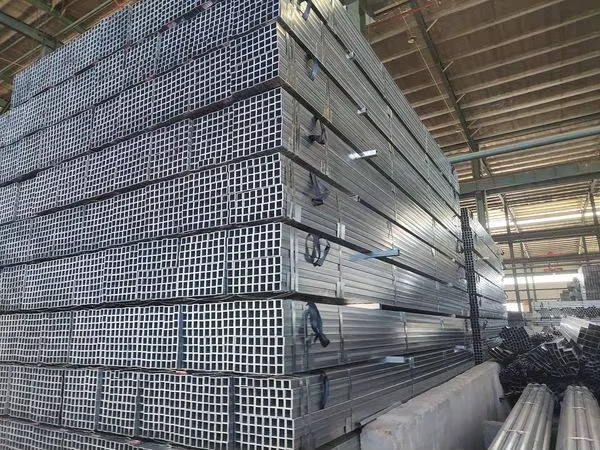

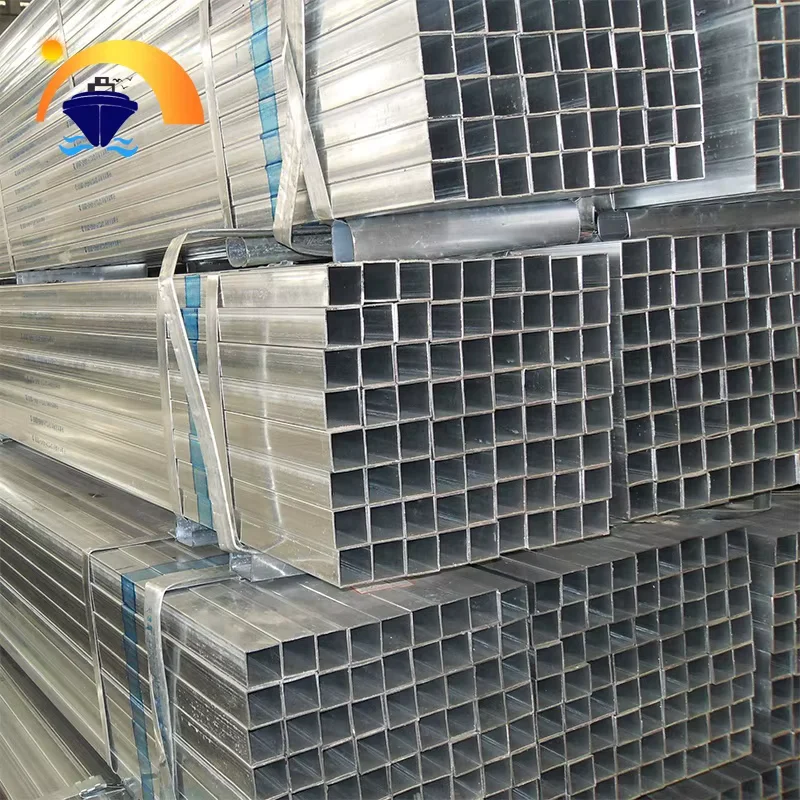

- Hot-dip galvanized square steel tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Custom cut-to-length tubes packaged separately with end caps to prevent coating damage at cut edges
- Container loading optimized by size range — 30×30 and 40×40 small sections nested efficiently to maximize payload per 20ft or 40ft container
- Heat number and steel grade markings stenciled on each bundle for on-site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional export documentation and tracking until arrival
- Anti-rust treatment applied before bundling for galvanized tubes stored or shipped in high-humidity conditions
Starting Your Galvanized Square Steel Tube Procurement
Submit your required dimensions, steel grade, surface treatment preference, quantity, and destination port to receive a detailed quotation within 12 hours. Our team provides mill test certificates, coating thickness reports, and third-party inspection coordination before shipment. Custom sizes and cut-to-length services are available with typical production lead times for non-stock specifications.
Request Your Galvanized Square Steel Tube Quote Today
Send your specifications and quantity requirements to receive pricing, mill test certificates, and delivery schedules.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgically bonded coating that covers both exterior and interior surfaces with superior adhesion and corrosion resistance. Pre-galvanized tubes are made from already-coated strip steel, leaving the welded seam and interior surfaces with thinner or incomplete zinc coverage. For structural and outdoor applications, hot-dip galvanizing delivers longer service life and better protection at cut edges and connection points.
Q: How do you ensure coating uniformity and adhesion on galvanized tubes?
A: Each batch undergoes coating thickness measurement with a calibrated gauge before shipment. The hot-dip process creates zinc-iron alloy layers bonded to the steel substrate, providing adhesion that survives normal handling, bending, and cutting. Our in-house laboratory performs adhesion and coating weight tests per relevant standards, and third-party inspection by SGS or BV is available for buyer verification.
Q: Can you provide custom lengths and cutting services for galvanized square tubes?
A: Yes. We offer cut-to-length services based on your project requirements. Custom-cut tubes are packaged with end protection to preserve the zinc coating at cut edges. Standard stock lengths are available for immediate dispatch, while custom sizes enter production with typical lead times communicated at quotation stage.
Q: What certifications do you offer for EU and international market compliance?
A: We hold Lloyd’s CE certification conforming to EN 10210 and EN 10219 standards for structural hollow sections, ISO 9001:2015 quality management certification, Singapore FPC certification, and SGS/BV verification. Mill test certificates documenting chemical composition and mechanical properties accompany every shipment. These certifications support customs clearance and engineering approval across European, Middle Eastern, and Southeast Asian markets.
Q: How do you calculate theoretical weight vs actual weight for galvanized tubes?
A: Our galvanized square steel tubes are invoiced by theoretical weight calculated from the specified dimensions and wall thickness per GB standards. The zinc coating adds a predictable weight increment based on coating class. Actual weight may vary within the ±5% dimensional tolerance, but billing follows the theoretical calculation for transparent and consistent pricing across orders.
