Description

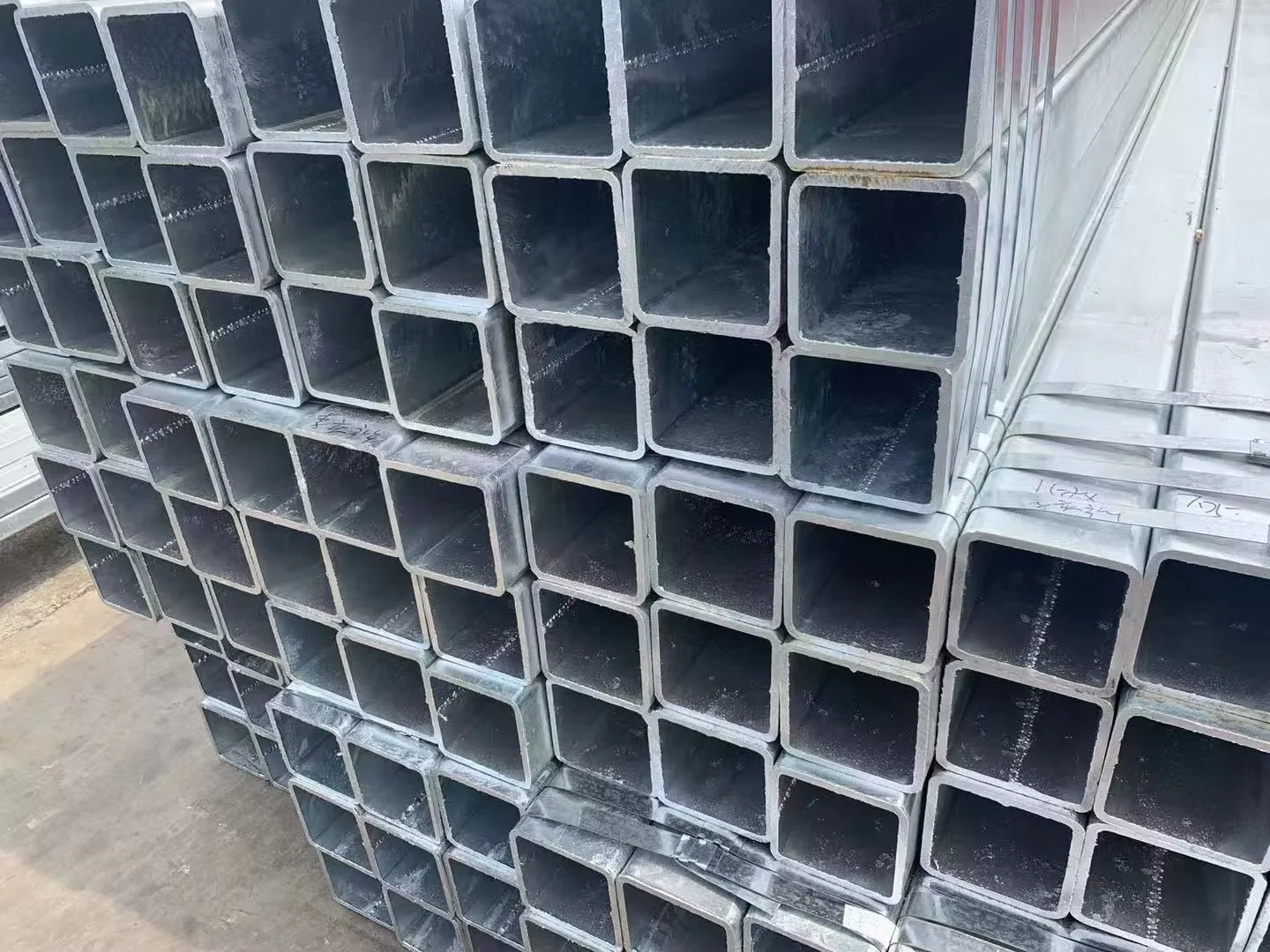

Factory-Direct Galvanized Square Steel Tube Supply — Hot-dip galvanized square tubes produced on 3 dedicated lines covering 2,800+ specifications with wall thickness up to 40 mm, shipped with full CE and ISO documentation to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS 1387, EN 10255, ISO 65, ANSI C80, DIN 2440, JIS G3444, GB/T 3091, GB/T 13793 |
| Section Shape | Square |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm standard; customized up to 40 mm available |
| Length | 5.8 m / 6 m / 11 m or as customer needs |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Ends | Plain ends, Beveled ends, Threaded ends, Grooved ends |
| Processing Service | Punching, Cutting, Bending |
| Application | Municipal water & gas transmission, oil/gas/water fluid transportation, construction, hydraulic & precision machinery, power, boiler, petrochemical |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Underground water distribution mains, gas transmission pipelines, fire hydrant risers |
| Construction & Structural | Building column frames, scaffolding uprights, curtain wall steel framing |
| Petrochemical & Power | Boiler feedwater lines, cooling water circuits, steam condensate return piping |
| Machinery & Hydraulic | Hydraulic cylinder barrels, precision machine frames, conveyor support structures |
| Agricultural & Irrigation | Large-diameter irrigation mains, drainage culverts, livestock facility water lines |
Where Zinc Coating Thickness Decides Municipal Project Acceptance
Inconsistent galvanizing is the single most common reason galvanized square steel tube shipments fail third-party inspection at destination.
On a municipal water transmission project in West Africa, a batch of square tubes arrived with zinc coating measured at 45 microns against a contractual minimum of 65 microns. The entire lot was rejected, re-galvanized locally at triple the original cost, and the project schedule slipped by two months. The root cause was not the galvanizing process itself, but the absence of in-house coating thickness verification before loading. For galvanized square steel tube destined for underground or high-humidity service, coating uniformity is not a cosmetic concern — it directly determines service life and project acceptance. Buyers sourcing from traders without physical laboratories face this risk repeatedly, as coating weight is rarely validated until a third-party inspector arrives at the port of discharge. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural hollow sections]
How Hot-Dip Galvanizing Matches Underground Municipal Service Conditions
Municipal water and gas networks demand continuous corrosion protection across decades of buried service life. The hot-dip galvanizing process bonds a metallurgical zinc-iron alloy layer to the steel substrate of each galvanized square steel tube, providing sacrificial protection even at coating scratches or cut edges. Side lengths from 21.3 mm to 660 mm with wall thickness up to 40 mm cover the full range from branch distribution lines to high-pressure transmission mains. Threaded and grooved end finishes allow direct field connection without welding, preserving the zinc coating integrity at joints — a critical advantage over welded alternatives in gas distribution networks where spark-free assembly is mandatory.
Structural Compliance and Certification Requirements for Gas Transmission Networks
Municipal gas transmission pipelines must conform to dimensional and mechanical requirements under EN 10255 or ASTM A53/A795 depending on the destination market. For European projects, CE marking per EN 10219 is mandatory for customs clearance and engineering approval — a documentation gap that routinely causes container holds at Rotterdam and Hamburg ports. [NEED_CITE: EN 10219 cold-formed structural hollow section CE marking requirements] Steel grade selection directly affects pressure rating: A500 Grade C provides higher yield strength than Grade B for the same wall thickness, allowing either reduced weight or increased pressure capacity. Wall thickness tolerance of ±1% ensures that theoretical weight calculations match actual delivered weight, preventing disputes during project cost reconciliation. Custom lengths of 5.8 m, 6 m, or 11 m reduce field welding joints and accelerate installation on linear pipeline routes.
Steel Grade Equivalence and Hot-Dip Galvanizing Process Explained
Procurement teams working across multiple standards systems frequently encounter grade confusion between ASTM, EN, JIS, and GB designations. A53 Grade B corresponds broadly to S235JR in yield strength category, while A500 Grade C aligns with S355JR — but exact chemical composition limits differ, and substitution without engineering approval can void project insurance. [NEED_CITE: steel grade equivalence between ASTM A500 and EN 10219 standards] The hot-dip galvanizing process involves immersing fabricated square tubes in molten zinc at approximately 450°C, forming a series of zinc-iron alloy layers bonded to the steel surface. This metallurgical bond provides superior adhesion compared to electro-galvanizing and ensures coating continuity even during the bending and punching operations offered as downstream processing services. Wall thickness up to 40 mm requires extended immersion and controlled withdrawal rates to achieve uniform coating on both external and internal surfaces of galvanized square steel tube sections.
Hidden Costs of Procuring Galvanized Tubes Without Verified Documentation
Ordering galvanized square steel tube based on price alone, without requiring mill test certificates or third-party inspection, exposes projects to material substitution risk. Tubes manufactured to negative tolerance beyond standard limits may pass visual inspection but fail under pressure testing, forcing complete pipeline replacement after burial. Missing CE documentation blocks customs clearance in EU markets, generating demurrage charges that exceed the original product cost. [NEED_CITE: consequences of non-compliant steel imports in regulated markets] Re-galvanizing rejected shipments at destination costs three to five times the original galvanizing expense and delays project commissioning. These hidden costs consistently exceed any initial price savings from unverified suppliers.
Why Engineering Procurement Teams Source Galvanized Square Steel Tube From Our Facility
Our facility operates 3 dedicated production lines covering 2,800+ specifications with wall thickness reaching 40 mm — eliminating the specification gaps that force buyers to split orders across multiple suppliers. We hold 41 invention patents including China’s original sharp-corner rectangular tube technology, and our in-house physical and chemical laboratory performs dimensional, mechanical, and coating thickness testing on every production batch before release. Full international certifications — ISO 9001:2015, Lloyd’s CE per EN 10219/10210, Singapore FPC, and SGS/BV verification — ensure customs clearance across regulated markets without documentation disputes. Custom non-standard sizes, cutting, punching, and bending services reduce fabrication time at destination, while professional container loading with anti-damage measures preserves galvanized coating integrity during ocean transit. As factory-direct supplier exporting to 50+ countries, we eliminate intermediary markups while maintaining single-source accountability from mill test certificate through final delivery.
Documentation & Compliance
- Mill test certificate documenting A500 Grade B/C chemical composition and mechanical properties per ASTM A500 for each heat number
- CE certificate per EN 10219 confirming conformity for galvanized square steel tube exported to European Union markets
- ISO 9001:2015 quality management system certificate covering hot-dip galvanizing and dimensional inspection processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance before container loading
- Material traceability documentation linking each bundle to heat number, steel grade, and production date
- Export customs documents including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

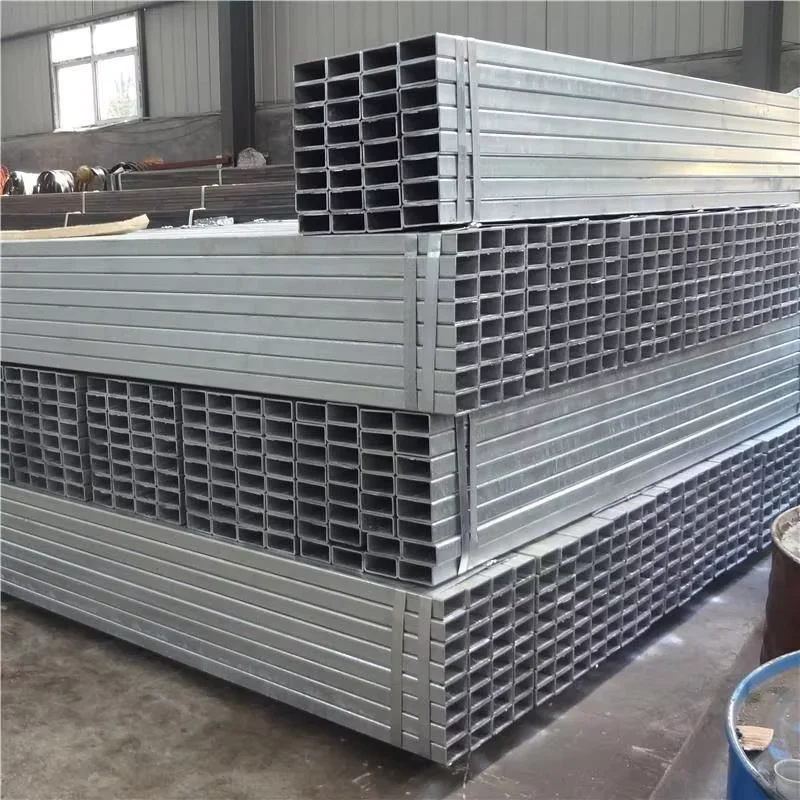

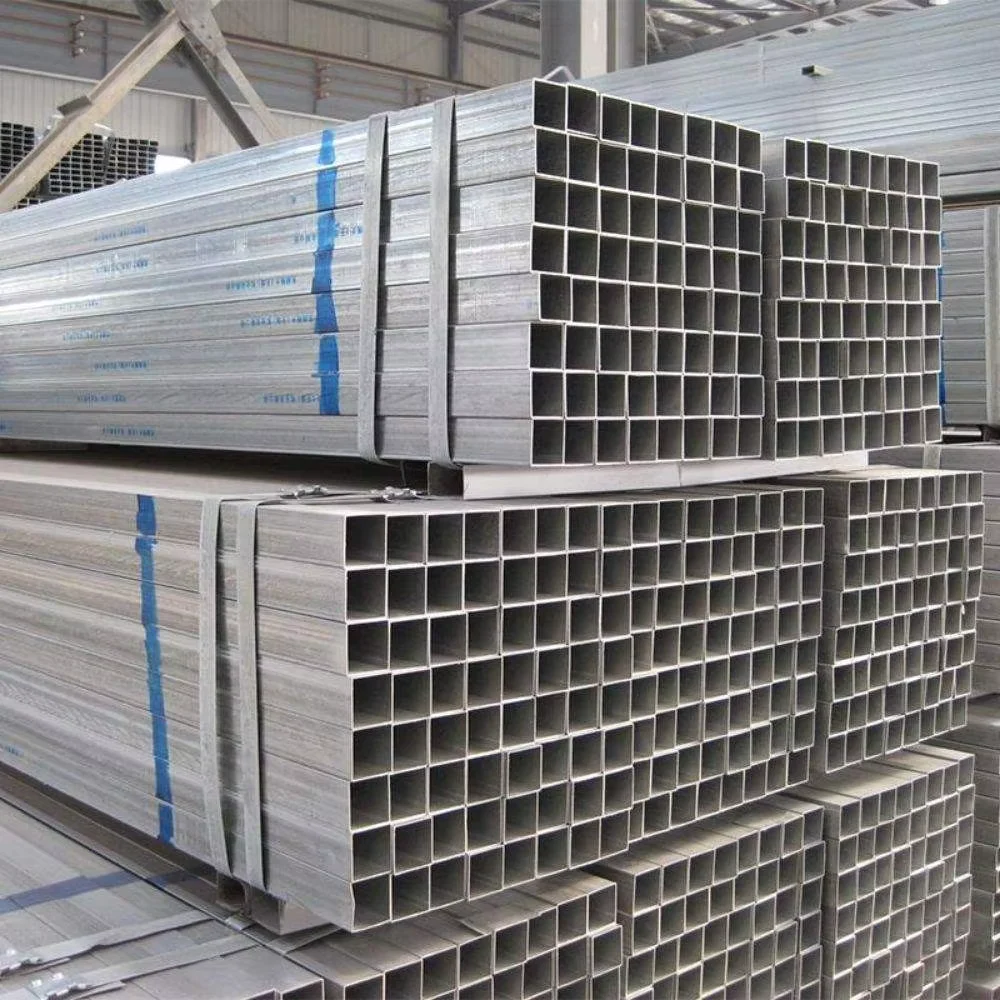

- Galvanized square steel tube bundled with steel strips and edge protectors to preserve zinc coating during ocean transit and prevent bundle shift
- Plastic end caps installed on all tube ends to prevent moisture ingress and internal corrosion during storage and shipping
- Woven bag wrapping with waterproof lining applied to each bundle for hot-dip galvanized surface protection against salt spray exposure
- Container loading optimized for 5.8 m and 6 m lengths to maximize 20ft and 40ft柜 utilization with anti-damage wooden separators between layers
- Heat number and steel grade marked on each tube per bundle for site identification and traceability during municipal pipeline installation
- FOB, CIF, and DDP shipping terms available with professional loading supervision and tracking through final destination arrival
How to Initiate Procurement for Municipal Pipeline Projects
Submit your required side length, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation including unit price, production lead time, and shipping terms within 12 hours. We provide mill test certificates and coating thickness reports for quality confirmation, with third-party inspection by SGS or BV available upon request before container loading. For non-standard sizes or custom end finishes, our engineering team reviews dimensional requirements and confirms feasibility with production schedule.
Request Quotation with Mill Test Certificate
Provide specifications, steel grade, quantity, and destination port to receive pricing and documentation package.
