Description
One-Stop Galvanized Square Tube Supply — Hot-dip galvanized square steel pipes in 20#, S235, S275, and SS400 grades, covering custom sizes with ±1% tolerance and full CE certification for structural and fluid applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | 20#, S235, S275, SS400 |
| Standard | JIS, API (ASTM A53) |
| Section Shape | Square |
| Size Range | Customized sizes available |
| Length | 6m / 12m (5.8m, 11m also available) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Application | Hydraulic systems / Fluid transport / Machine parts / Structural frames |
| MOQ | 1 Ton |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, curtain wall supports, scaffolding structures |
| Machinery Manufacturing | Hydraulic cylinder housings, conveyor frames, equipment bases |
| Fluid & Piping Systems | Water supply lines, irrigation networks, low-pressure fluid transport |
| Steel Structure Fabrication | Column sections, beam connections, bracing members |
What Coating Thickness Inconsistency Costs on Galvanized Tube Projects
Inconsistent zinc coating is the silent budget killer on galvanized square tube orders.
When procurement teams receive hot-dip galvanized pipes with uneven coating thickness, the consequences ripple through the entire project timeline. Local re-galvanizing at destination ports adds unplanned costs, while coating failures in corrosive environments lead to premature rust and structural degradation. Third-party inspectors flagging coating deficiencies can halt customs clearance entirely, leaving containers stranded at port with daily demurrage charges accumulating. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
Matching Galvanized Square Tubes to Structural and Fluid Applications
Galvanized square steel tubes serve dual roles in modern construction and industrial projects. For structural frames and curtain wall supports, the square profile provides flat bearing surfaces for bolted connections while the zinc coating protects against atmospheric corrosion. In hydraulic and fluid transport systems, the internal zinc layer resists water-induced scaling and maintains flow efficiency over decades of service. As a Galvanized Square Steel Pipe Supplier with 2,800+ specification options, we match tube dimensions to exact load calculations and connection requirements, eliminating on-site cutting waste.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with recognized engineering frameworks. European projects require CE marking per EN 10219 for cold-formed welded hollow sections, while North American specifications often reference ASTM A500 or A53 standards. The hot-dip galvanizing process must meet minimum coating thickness requirements—typically 80 microns for structural exposure—to ensure long-term corrosion protection. Mill test certificates documenting chemical composition and mechanical properties become mandatory for customs clearance and engineering approval. [NEED_CITE: EN 10219 certification requirements for structural hollow sections]
Steel Grade Selection and Hot-Dip Galvanizing Process
The choice between 20#, S235, S275, and SS400 grades reflects different structural demands. S235 offers adequate strength for general construction frames, while S275 provides higher yield capacity for loaded beam applications. SS400, conforming to JIS standards, serves projects specifying Japanese material requirements. The hot-dip galvanizing process immerses fabricated tubes in molten zinc at approximately 450°C, creating a metallurgical bond that provides cathodic protection even if the coating is scratched. This process ensures uniform coverage on all surfaces, including internal corners of square sections where spray-coating methods fail to reach.
Hidden Costs of Procurement Errors in Galvanized Tube Supply
Ordering galvanized square tubes without verified coating specifications creates downstream risks. Tubes with substandard zinc thickness pass initial inspection but corrode prematurely in humid or coastal environments, requiring expensive replacement or rehabilitation. Material grade mismatches—receiving S235 when S275 was specified—compromise structural integrity under design loads, potentially triggering engineering failures. Missing or incorrect mill test certificates delay customs clearance, stranding shipments at destination ports while project schedules slip. [NEED_CITE: consequences of incorrect steel grade certification in structural projects]
Why Source from a Verified Galvanized Square Steel Pipe Supplier
Our Jinan facility operates three dedicated production lines covering 2,800+ specifications with wall thicknesses up to 40mm. Every galvanized square tube undergoes coating thickness verification in our in-house laboratory before shipment, eliminating the surprise of inadequate zinc layers at destination. We hold Lloyd’s CE certification for EN 10210/EN 10219 standards, Singapore FPC approval, and ISO 9001:2015 registration—documentation that clears customs in EU and regulated markets without delay. Our 41 invention patents include China’s original sharp-corner rectangular tube technology, providing architectural projects with true right-angle aesthetics that standard rounded-corner tubes cannot achieve. Professional container loading with anti-damage measures ensures galvanized coatings arrive intact after ocean transit.
Documentation & Compliance
- Mill test certificate documenting 20#, S235, S275, or SS400 chemical composition and mechanical properties per applicable standards
- CE certificate confirming EN 10219 compliance for cold-formed welded structural hollow sections
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report verifying coating thickness and dimensional tolerance before shipment
- Material traceability documentation linking each tube to heat number and production batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

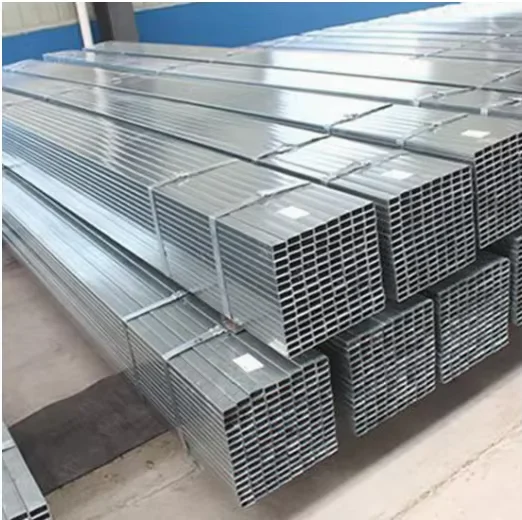

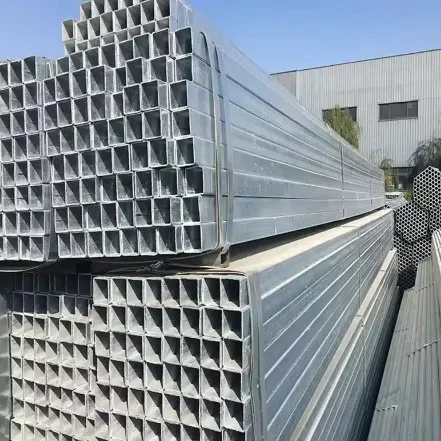

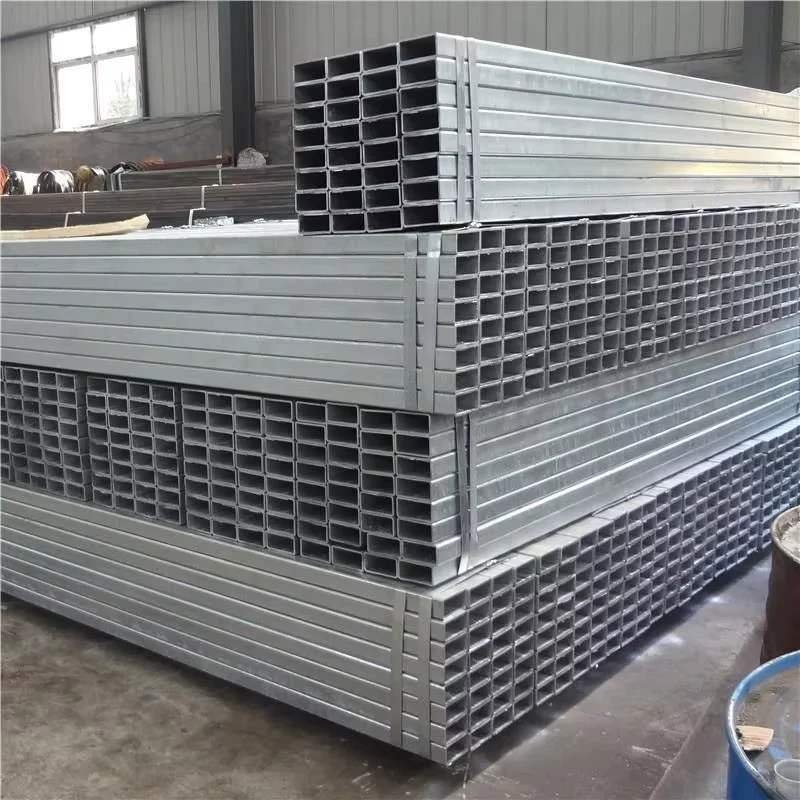

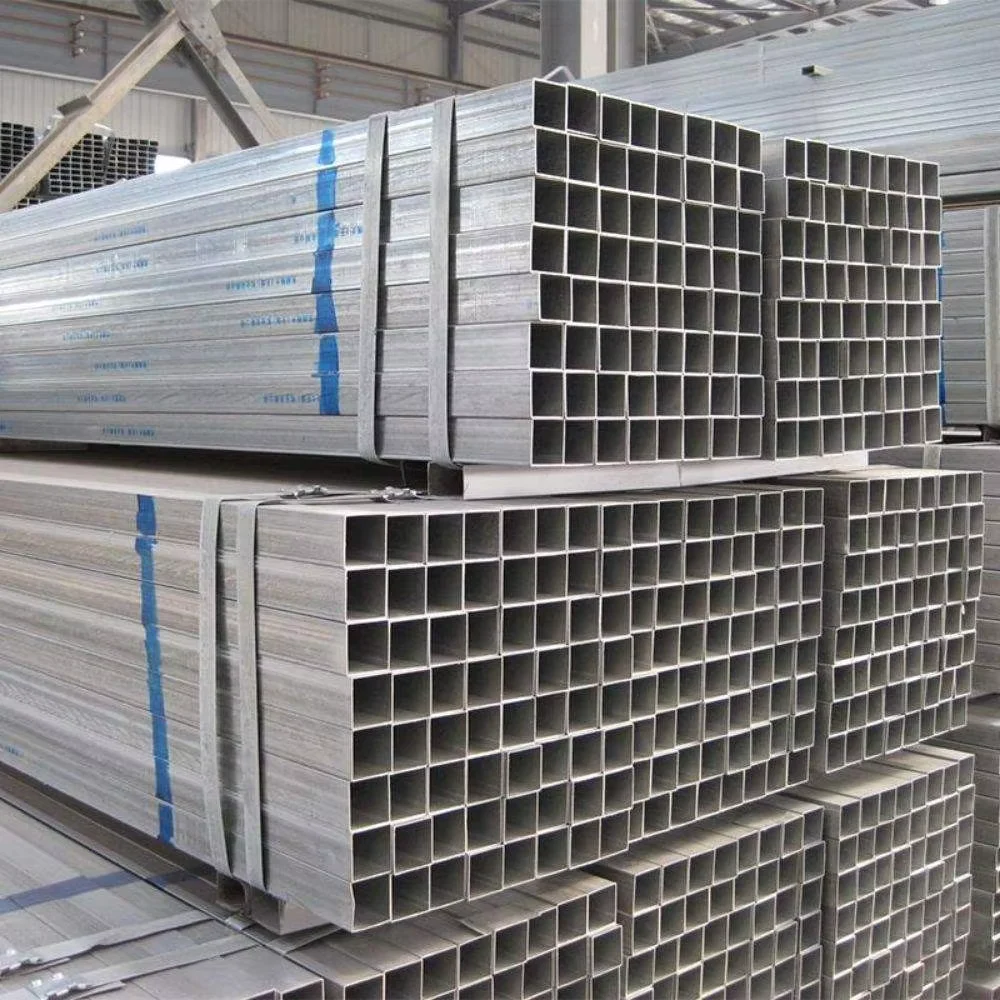

- Galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during handling and ocean transit
- Surface protection maintained through proper stacking separation, preventing coating damage from tube-to-tube contact
- Container loading optimized for 6m and 12m lengths, maximizing payload while maintaining weight distribution
- Custom cutting to 5.8m, 6m, or 11m lengths available to match project specifications and reduce on-site waste
- Heat number and steel grade markings clearly stenciled on each tube for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional export documentation and tracking until arrival
Requesting Quotations and Technical Documentation
Submit your specifications including tube dimensions, steel grade preference, surface treatment requirements, quantity, and destination port to receive detailed pricing within 12 hours. Our technical team provides mill test certificate samples and coating thickness verification reports for quality confirmation. For non-standard dimensions or custom lengths, we outline production timelines and minimum order quantities based on your project schedule.
Frequently Asked Questions
Q: How do 20#, S235, S275, and SS400 steel grades compare across different standards?
A: These grades represent different national standards but serve similar structural functions. 20# follows Chinese GB standards, S235 and S275 conform to European EN specifications with increasing yield strength, while SS400 meets Japanese JIS requirements. We provide equivalence documentation and material certifications for customs clearance in your destination market.
Q: Can you provide third-party inspection reports for EU customs clearance?
A: Yes, we arrange SGS or BV inspection before shipment, verifying coating thickness, dimensional tolerance, and mechanical properties. Our CE certification under EN 10210/EN 10219 standards ensures compliance for European construction projects, and all documentation is prepared for smooth customs processing.
Q: What is the minimum order quantity for custom sizes?
A: Our MOQ is 1 ton for standard specifications. For non-standard dimensions or custom lengths outside our regular range, we provide specific MOQ requirements and production lead times based on your project needs during the quotation process.
Q: How do you ensure galvanized coating quality during container loading?
A: We use professional loading techniques with edge protectors and proper separation between tubes to prevent coating damage. Each shipment undergoes coating thickness verification in our laboratory before dispatch, and our loading procedures are designed to maintain zinc layer integrity throughout ocean freight.
Q: What end options are available for galvanized square tubes?
A: We offer plain ends for standard connections, beveled ends for welding preparation, threaded ends for mechanical coupling, and grooved ends for quick-connect fittings. Specify your connection method requirements when requesting quotations, and we confirm available options for your selected dimensions.
Get Your Galvanized Square Tube Quotation with Full Certification
Send your specifications—dimensions, steel grade, quantity, and destination—to receive pricing and mill test certificate samples within 12 hours.
