Description

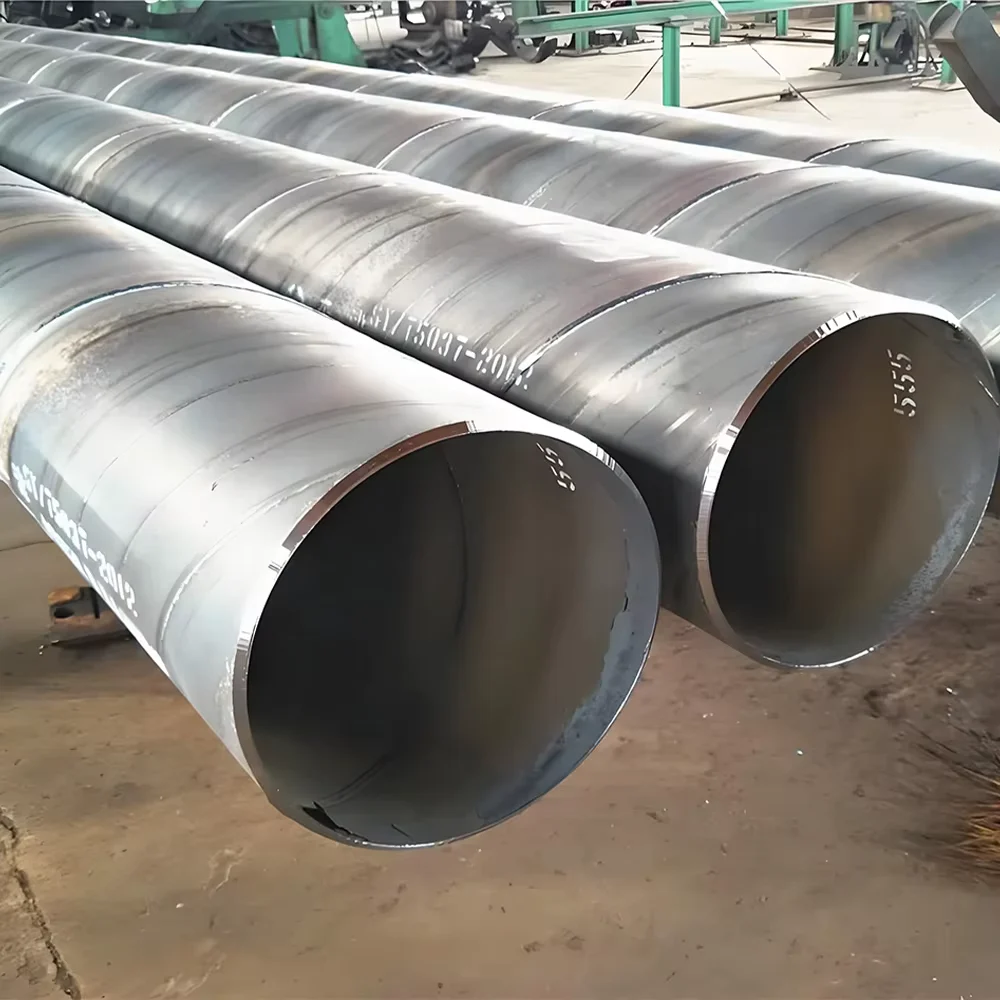

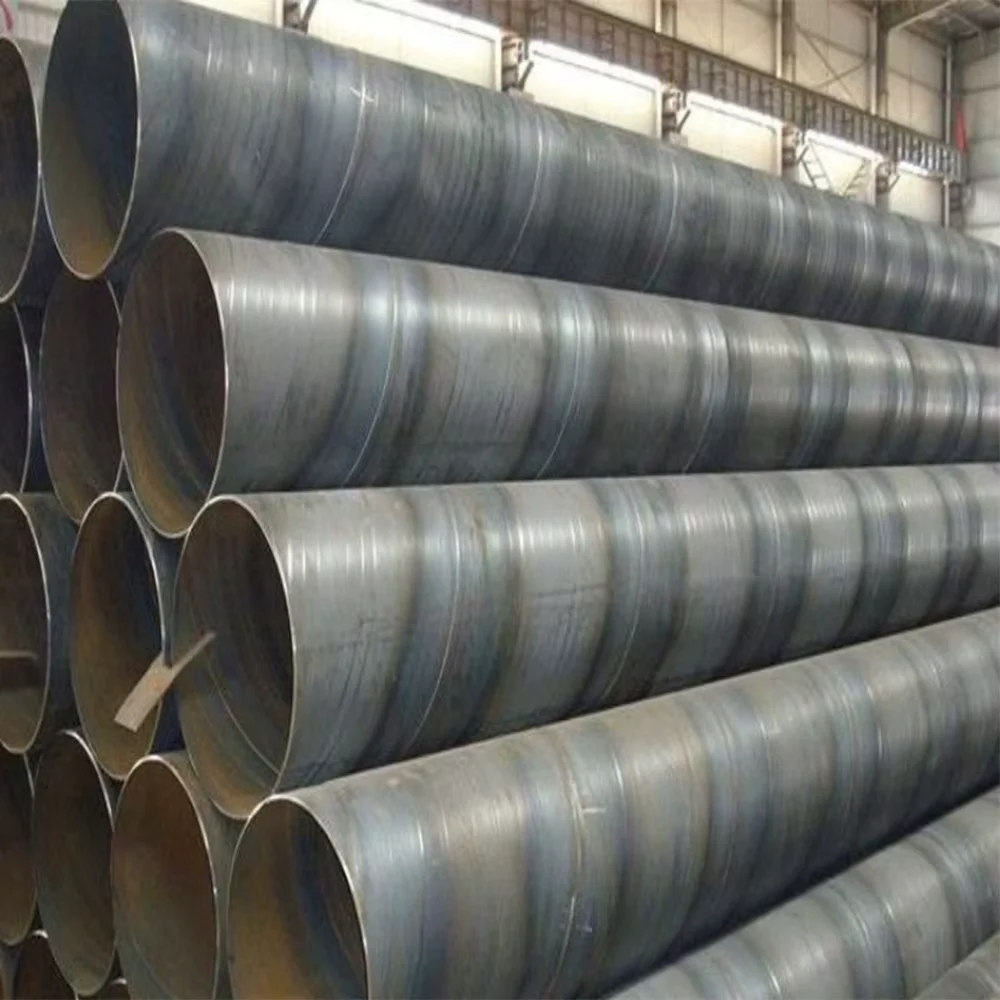

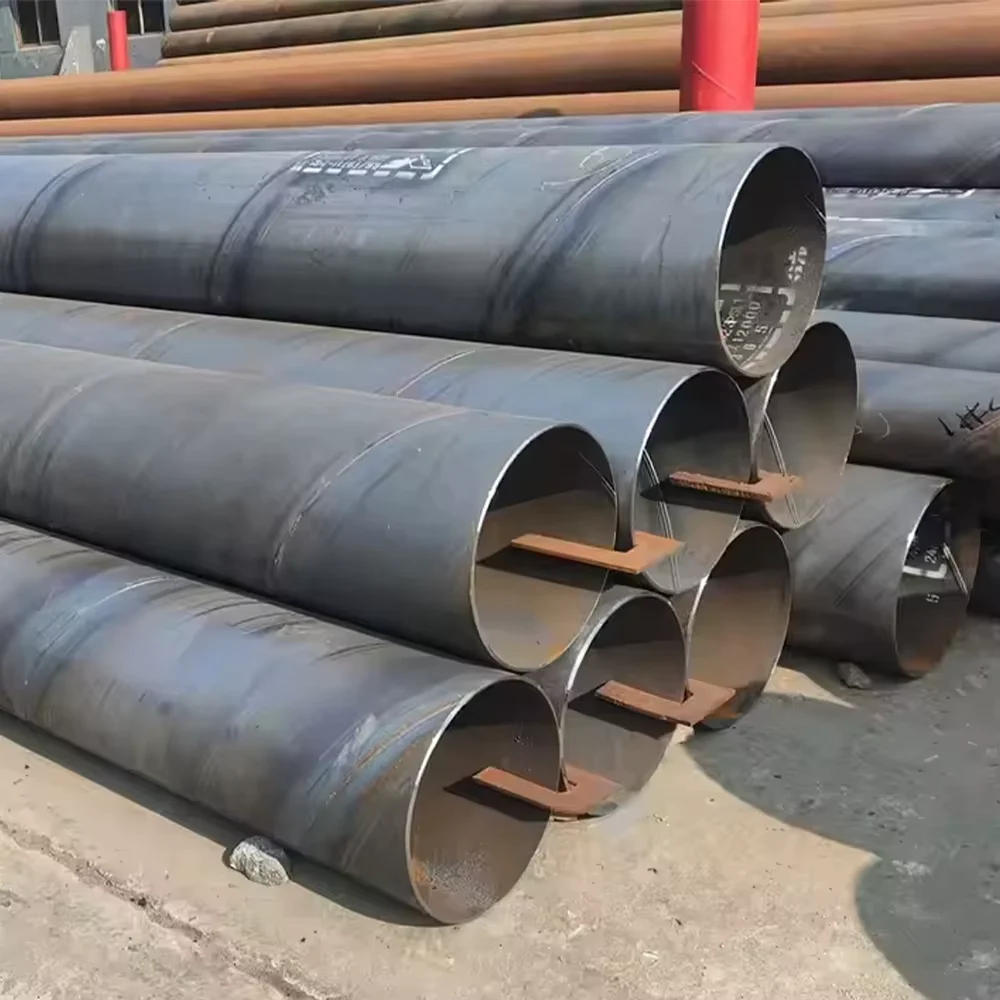

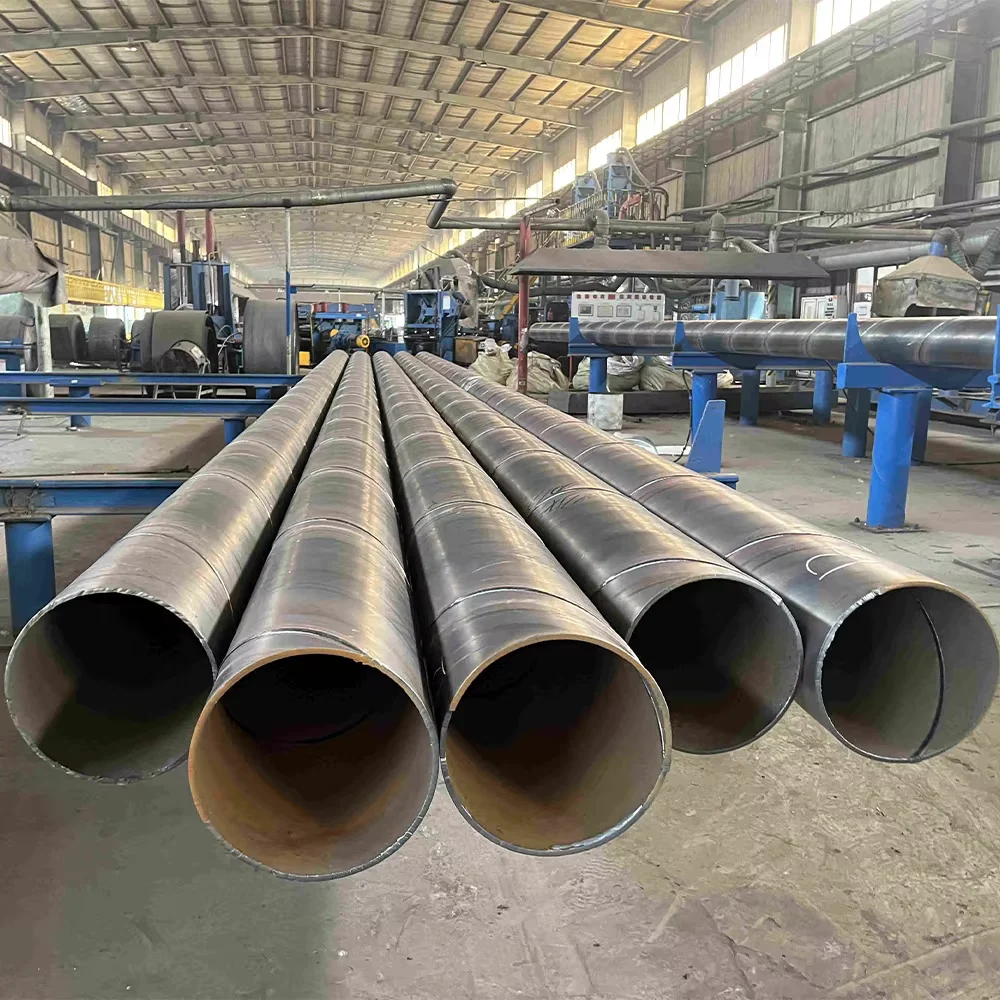

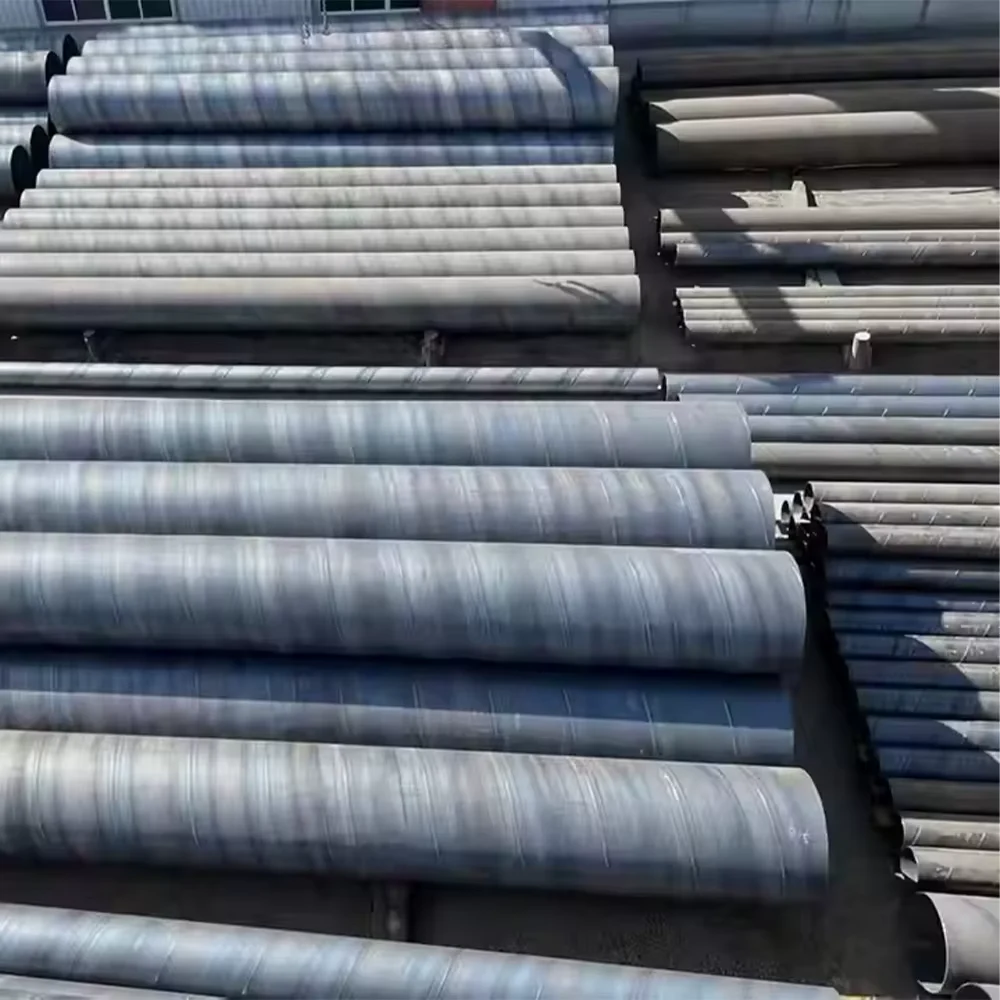

Direct Mill Supply for SSAW Piling Pipes — Hot-dip galvanized spiral welded steel pipes produced in-house with wall thickness up to 50mm, shipped with full mill test certificates and professional container loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Hot-Dip Galvanized Spiral Welded Steel Pipe |
| Product Type | SSAW (Spiral Submerged Arc Welded) Round Steel Pipe |
| Steel Grade | Q195, Q235A, Q235B, Q345A, Q345B, Q345C, Q345D, Q345E, 20#, 10#, 16Mn, ASTM A36, ASTM A53, ASTM A106, ASTM A500, SS400, St37, St52, S235JR, S355TRH |
| Standard | ASTM A53, ASTM A106, ASTM A500, GB/T 3091-2001, GB/T 13912-2002, BS 1387, ASTM F1083 |
| Section Shape | Round |
| Outer Diameter | 10–1000 mm |
| Wall Thickness | 2–50 mm |
| Length | 6–12 m (customizable) |
| Technique | Spiral Welded (SSAW) |
| Surface Treatment | Hot-Dip Galvanized / Black Painting |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Construction piling, foundation support, structural columns, fluid delivery, greenhouse structures, fence posts, curtain wall framing, machinery parts |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Foundation piling for high-rise buildings, bridge abutment support, retaining wall anchoring |
| Steel Structure | Load-bearing columns, portal frame legs, mezzanine support posts |
| Municipal Engineering | Water and gas pipeline networks, pump well casing, drainage structures |
| Agriculture & Fencing | Greenhouse frame structures, perimeter fencing posts, livestock enclosure supports |
Why Coating Thickness Verification Matters Before Container Loading
Galvanized layer consistency is the single most common rejection reason at destination ports for spiral welded pipes.
Buyers sourcing Hot-Dip Galvanized Spiral Welded Steel Pipe for piling and structural columns often discover coating thickness shortfalls only after third-party inspection at the discharge port. A batch arriving with 45-micron zinc when the contract specifies 80 microns minimum triggers full rejection, return re-galvanizing, and freight losses that dwarf the original material cost. Beyond coating inconsistency, missing CE documentation blocks EU customs clearance, and improper container stacking causes bending damage that surfaces only during offloading [NEED_CITE: hot-dip galvanizing coating thickness requirements per ISO 1461].
Matching Piling and Foundation Requirements
Hot-Dip Galvanized Spiral Welded Steel Pipe in OD 10–1000mm and wall thickness up to 50mm addresses the dual demands of structural bearing capacity and long-term underground corrosion resistance. The SSAW process produces continuous spiral seams suitable for large-diameter piling where seamless alternatives become cost-prohibitive, while hot-dip galvanizing provides sacrificial zinc protection extending service life in soil and marine environments. Our production lines cover 2,800+ specifications, allowing contractors to source both standard piling diameters and non-standard sizes from a single mill rather than splitting orders across multiple suppliers.
Structural Compliance and Certification Pathways
Engineering specifications for piling and structural columns typically reference EN 1993 or AISC frameworks requiring documented material traceability and verified mechanical properties. Hot-Dip Galvanized Spiral Welded Steel Pipe in grades Q235B, Q345B, and S355JR meets these structural demands when accompanied by EN 10204 3.1/3.2 mill test certificates. For EU market projects, Lloyd’s CE certification under EN 10210/10219 is mandatory for structural hollow sections — a certification gap that causes customs holds and project delays [NEED_CITE: CE marking requirements for structural steel under EN 10210]. Custom lengths up to 12m reduce on-site welding joints, while beveled ends prepare pipes for direct pile driving or welded connections.
Steel Grade Selection and SSAW Process Fundamentals
The Q-series carbon structural steels (Q195–Q345) dominate domestic Chinese piling specifications, with Q235B offering adequate yield strength for standard foundation work and Q345B providing higher load capacity for heavy structural applications. International projects typically specify ASTM A53 for general structural use or ASTM A500 for cold-formed structural tubing, while EN-designated S235JR and S355TRH serve European and Commonwealth markets. The SSAW spiral submerged arc welding process creates a helical seam that distributes stress more evenly than longitudinal ERW seams, making it suitable for large-diameter pipes where circumferential welding becomes impractical. Hot-dip galvanizing immerses the finished pipe in molten zinc, forming metallurgical bonds that provide cathodic protection — superior to paint coatings for underground and splash-zone applications. Wall thickness tolerance of ±1% ensures theoretical weight calculations remain reliable for structural engineering load assessments.
Hidden Costs of Incorrect Material Procurement
Specifying Q235B when project drawings require Q345B creates structural safety liabilities that surface during engineering inspection, potentially requiring complete pile replacement. Missing CE documentation for EU-bound Hot-Dip Galvanized Spiral Welded Steel Pipe results in customs detention, demurrage charges, and project schedule overruns that exceed material value. Negative tolerance beyond contractual limits reduces actual load-bearing capacity while maintaining theoretical weight billing, creating disputes during final settlement [NEED_CITE: dimensional tolerance requirements for structural steel pipes per EN 10219].
Procurement Confidence Through Verified Capabilities
As the original manufacturer, we eliminate trading company markups while maintaining direct quality control from steel coil to finished galvanized pipe. Our in-house physical and chemical laboratory tests every heat number for dimensional accuracy, mechanical properties, and zinc coating thickness before release — the same verification process that prevents coating shortfall disputes. Full international certifications including ISO 9001:2015, Lloyd’s CE (EN 10210/10219), and Singapore FPC satisfy procurement requirements across regulated markets. Professional container loading with anti-damage measures prevents the bending and surface scratches that trigger rejection at destination, while 2,800+ specification coverage allows single-source procurement for mixed-diameter piling packages. Custom non-standard sizes with 5-ton MOQ accommodate specialized foundation designs without requiring full mill production runs.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and yield strength per GB/T 3091-2001
- CE certificate under EN 10210/EN 10219 for structural hollow sections exported to European markets
- ISO 9001:2015 quality management system certificate covering SSAW production and galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each pipe to original steel coil test results
- Customs documents including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- Hot-dip galvanized SSAW pipes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through proper stacking separation preventing zinc layer abrasion between pipes
- Container loading optimized for 6–12m lengths with anti-damage measures preventing bending during transit
- Heat number and steel grade markings stenciled on each pipe end for site identification and traceability
- FOB/CIF/DDP shipping terms available with professional export documentation and tracking until arrival
- Custom length cutting available to reduce on-site waste and welding requirements for piling applications
Initiating Your Procurement Inquiry
Submit your Hot-Dip Galvanized Spiral Welded Steel Pipe specifications including outer diameter, wall thickness, steel grade, surface treatment preference, quantity, and destination port to receive detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates and third-party inspection coordination for quality confirmation before shipment. Custom non-standard sizes and lengths are available with 5-ton minimum order quantity for specialized piling and structural applications.
Frequently Asked Questions
Q: What steel grade equivalence exists between GB, ASTM, and EN standards for SSAW pipes?
A: Q235B corresponds to ASTM A36 and S235JR for general structural applications, while Q345B aligns with ASTM A572 Grade 50 and S355JR for higher strength requirements. We provide detailed grade equivalence documentation with mill test certificates to support customs clearance and engineering approval.
Q: What hot-dip galvanizing coating thickness can be achieved?
A: Hot-dip galvanizing per GB/T 13912-2002 and ISO 1461 standards typically achieves 80+ microns for pipes with wall thickness above 6mm, with thicker walls receiving proportionally heavier coatings. Each pipe undergoes coating thickness verification in our laboratory before shipment.
Q: Can third-party inspection be arranged before shipment?
A: SGS and BV third-party inspections are available upon request to verify dimensional tolerance, coating thickness, and mechanical properties. Inspection reports are provided alongside mill test certificates for complete quality documentation.
Q: What is the minimum order quantity for custom sizes?
A: Standard specifications ship from stock with 5-ton minimum order quantity. Custom non-standard diameters, wall thicknesses, and lengths enter production with typical lead times of 15–25 days depending on specification complexity.
Q: How are galvanized pipes protected during container loading?
A: Professional loading procedures include steel strip bundling with edge protectors, proper separation to prevent zinc coating abrasion, and anti-damage measures preventing bending during ocean transit. Loading photos are provided before vessel departure.
Request Your Hot-Dip Galvanized SSAW Pipe Quotation
Send specifications including OD, wall thickness, steel grade, quantity, and destination to receive pricing with mill test certificates within 12 hours.
