Description
Factory-Direct Hot Rolled Channel Steel — Mill-produced Q235B and Q345B U channel steel shipped without trader markup, backed by in-house chemical and mechanical testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B U Channel Steel |
| Product Type | U Channel |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | AISI, ASTM, BS, DIN, JIS, EN, GB |
| Section Shape | U / C Channel |
| Size Range | GB: 100×48mm–400×102mm / JIS: 50×25mm–250×90mm |
| Length | 6m, 12m, or customized |
| Technique | Hot Rolled |
| Surface Treatment | Black, Bright, Galvanized, Painted |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structure, vehicle manufacturing, industrial structure |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Building frames, structural supports, roof purlins paired with I-beams |
| Vehicle Manufacturing | Truck chassis frames, trailer cross-members, industrial vehicle platforms |
| Industrial Infrastructure | Conveyor support structures, equipment mounting bases, warehouse mezzanine frames |
| Steel Structure Fabrication | Column bracing, beam-to-column connections, portal frame components |
Why Dimensional Tolerance on Hot Rolled U Channel Steel Determines Site Fit-Up
A ±1% tolerance on a 400×102mm channel means the difference between bolt-hole alignment on first try and on-site re-drilling.
When structural channels arrive with inconsistent web widths or flange angles, fabricators waste hours reaming bolt holes or grinding connection plates. On high-rise steel frames where channels brace between I-beams, even slight dimensional drift forces welders to improvise fit-ups that compromise load transfer paths. Sourcing Q235B Q345B hot rolled U channel steel supplier with verified tolerance control eliminates this rework before the material reaches the fabrication shop. [NEED_CITE: dimensional tolerance requirements for hot rolled structural channels in GB/T 706]
How Q235B and Q345B Channel Steel Matches Structural Load Requirements
Hot rolled U channel steel in Q235B grade serves general-purpose framing where moderate load capacity suffices, while Q345B delivers higher yield strength for primary structural members carrying heavier point loads. The hot rolling process ensures uniform grain flow through the web-to-flange transition, which matters when channels bear lateral bracing forces in portal frames. For projects pairing channels with I-beams, matching steel grades across both profiles prevents galvanic concerns and simplifies weld procedure qualification. As a Q235B Q345B hot rolled U channel steel supplier, we roll each heat to order so chemical composition aligns with the specific grade called out on structural drawings.
Engineering Compliance and Surface Protection for Channel Steel
Structural channels in Q345B grade must meet the mechanical property requirements of GB/T 706 for domestic projects, while export orders to EU markets require equivalence documentation mapping Q345B to S355JR per EN 10025-2. [NEED_CITE: steel grade equivalence between GB Q345B and EN S355JR] For outdoor or corrosive environments, hot-dip galvanized finish provides decades of protection without maintenance, while painted systems suit indoor industrial structures where appearance matters less than cost. Hot rolled black finish remains the default for projects where channels will be welded immediately and painted as part of the final assembly — avoiding double surface treatment costs. Third-party inspection by SGS or BV confirms both dimensional compliance and coating thickness before shipment. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
Hot Rolling Process and Steel Grade Selection for U Channel
The hot rolling process heats billet stock above recrystallization temperature before passing it through shaped rolls that form the U profile in a single continuous pass. This produces channels with consistent mechanical properties throughout the cross-section, unlike cold-formed alternatives where bending introduces residual stresses at the web-flange corners. Q235B offers adequate strength for secondary structures and non-critical bracing at lower cost, while Q345B provides roughly 35% higher yield strength for primary load-bearing members — the selection depends entirely on structural engineer calculations. SS400 grade serves Japanese-standard projects where JIS G 3101 governs material acceptance. Surface treatment choice follows the service environment: galvanized for coastal or chemical exposure, painted for architectural visibility, black for immediate fabrication.
The Hidden Cost of Unverified Channel Steel Procurement
Ordering channel steel without mill test certificates means accepting that chemical composition remains unverified — a Q345B order could arrive with Q235B chemistry, passing visual inspection but failing structural load tests during final acceptance. [NEED_CITE: consequences of material substitution in structural steel construction] Missing or forged MTCs trigger customs holds on regulated markets, delaying projects by weeks while replacement documentation is obtained. Negative tolerance abuse — where actual wall thickness falls below the nominal minus tolerance — reduces load capacity without visible indication, creating latent structural risk that surfaces only under extreme loading events.
Why Source Q235B Q345B Hot Rolled U Channel Steel From Our Mill
Every bundle of Q235B Q345B hot rolled U channel steel leaving our facility carries a heat-number-traceable mill test certificate documenting chemical composition and mechanical properties from our in-house laboratory. We roll the full GB range from 100×48mm to 400×102mm plus JIS sizes from 50×25mm to 250×90mm on three dedicated production lines covering over 2,800 specifications across our product range. Custom lengths beyond standard 6m and 12m are cut to order, and non-standard profiles can be rolled when quantities justify mill setup. International certifications including ISO 9001:2015, Lloyd’s CE marking per EN 10210/10219, and Singapore FPC ensure smooth customs clearance across 50+ export destinations. Professional container loading with timber separators and steel strip bundling prevents the flange deformation and web buckling that damages channels during ocean transit — a lesson learned the hard way when an entire shipment of U channels arrived at a Southeast Asian port with crushed webs from improper stacking.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB/T 706, traceable by heat number
- CE certificate per EN 10210/EN 10219 for structural channel steel exported to EU member states
- ISO 9001:2015 quality management system certificate covering hot rolled section steel production
- SGS or BV third-party inspection report verifying dimensional tolerance and surface treatment thickness before shipment
- Material traceability report linking each bundle to its heat number, chemical analysis, and tensile test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- Hot rolled Q235B and Q345B U channel steel bundled with high-tensile steel strips at regular intervals to prevent web splaying during handling and transit

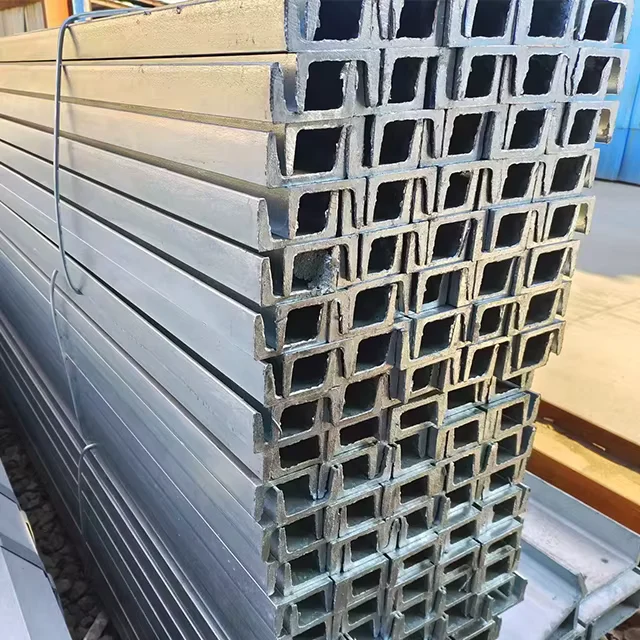

- Galvanized channel steel packed with edge protectors and separated by timber battens to preserve zinc coating integrity during ocean shipping
- 6m and 12m lengths loaded vertically in 20ft and 40ft containers with timber chocking to prevent longitudinal shifting and flange contact damage
- Custom-cut channel steel labeled with heat number, steel grade, and length on each piece for immediate site identification
-唛头 marking on each bundle showing steel grade (Q235B/Q345B), section dimensions, piece count, and net weight for customs and site receiving
- FOB, CIF, and DDP shipping terms available with professional container loading supervision to maximize payload while protecting surface finish
Ready to Procure Q235B Q345B Hot Rolled U Channel Steel?
Submit your required section dimensions, steel grade, surface treatment preference, quantity, and destination port to receive a detailed quotation with mill test certificate samples and production lead time. For custom lengths or non-standard profiles outside the GB and JIS ranges, share your fabrication drawings and we will confirm roll feasibility and minimum order quantities.
Request Your Channel Steel Quotation with Mill Test Certificate
Send specifications and quantity to receive pricing, MTC samples, and delivery schedule within 12 hours.
