Q235 Q345 S355 ERW Square Steel Tube 1-50mm Wall Thickness Manufacturer

Description

Direct Mill Supply for ERW Square Tubes — Every Q235 Q345 S355 ERW square steel tube ships with in-house lab test reports and CE-marked mill certificates, eliminating middleman markups and certification gaps.

Technical Specifications

Application Suitability

Where Grade Equivalence Gaps Cause Customs Rejection on ERW Square Steel Tube Orders

Mixing GB, EN, and ASTM designations without verified equivalence mapping is the single most common reason structural tube shipments get held at destination ports.

Procurement teams ordering Q235 Q345 S355 ERW square steel tube for projects spanning multiple regulatory zones frequently discover — after the container arrives — that the mill test certificate references a standard the local inspector does not recognize. A Q345B shipment bound for an EU site may carry a GB/T 6728 test report where the importer’s customs broker expects EN 10219 compliance notation. The material itself may be perfectly sound, but the documentation mismatch triggers a hold that costs weeks of demurrage and sometimes forces a full return shipment. [NEED_CITE: steel grade equivalence mapping between GB EN and ASTM standards for structural hollow sections]

Beyond documentation, actual chemistry and mechanical properties differ subtly between grades that appear interchangeable on a spec sheet. S355J2 requires Charpy impact testing at −20°C, while Q345B does not carry the same low-temperature requirement. Substituting one for the other without engineering approval creates latent structural risk in cold-climate installations.

Matching Wall Thickness and Grade to Structural Load Paths

An ERW square tube selected for a column in a mid-rise steel frame must satisfy both the axial load calculation and the lateral buckling criteria defined by the governing design code. The Q235 Q345 S355 ERW square steel tube range from 15mm × 15mm up to 800mm × 800mm with wall thickness from 1mm to 50mm covers everything from light-gauge purlin bracing to heavy-duty transfer girders. Thicker walls in S355J2 grade deliver higher moment capacity without increasing the outer dimension, which matters when architectural envelope clearances are fixed. Our in-house physical and chemical laboratory tests every production batch against the dimensional and mechanical requirements of the declared standard before release, so the certificate that travels with the shipment matches what actually arrives on site.

Engineering Compliance and Surface Protection for Field Conditions

Structural hollow sections used in load-bearing frames must conform to the dimensional tolerances of EN 10219 or EN 10210 depending on whether the section is cold-formed or hot-finished. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional and tolerance requirements] For projects in coastal Southeast Asia or Middle East industrial zones, the choice between black painted, hot-dip galvanized, or 3LPE coated surface treatment directly determines the maintenance interval before corrosion compromises the section modulus. Galvanized coating protects weld zones and internal surfaces that paint cannot reach, while 3LPE provides mechanical damage resistance during backfilling for buried structural applications. End preparation — plain, beveled, or threaded — must align with the site connection method, whether that involves full-penetration butt welding or bolted end-plate connections. Certification requirements also vary by destination: Lloyd’s CE marking under EN 10210/10219 is mandatory for EU structural imports, while ASTM A53 and A106 govern North American pipeline and structural applications.

Understanding ERW Welding, Grade Progression, and Tolerance Implications

The ERW (Electric Resistance Welded) process forms the tube from rolled steel coil by passing it through forming rolls and welding the seam through electrical resistance heating without filler metal. This produces a consistent weld zone suitable for structural applications where the seam is subject to the same load as the parent metal. The Q235 to Q345 to S355 grade progression represents increasing minimum yield strength across the GB and EN systems — Q235 serves general structural purposes, Q345 adds higher strength for heavily loaded members, and S355J2 delivers the highest yield in this range with mandatory sub-zero impact toughness. [NEED_CITE: yield strength progression and impact testing requirements across S235 S275 S355 grade families]

Wall thickness tolerance of ±1% means that a nominal 4mm wall can measure between 3.96mm and 4.04mm. While this appears narrow, cumulative negative tolerance across a large order affects theoretical weight calculations and therefore project cost estimation. Buyers ordering by theoretical weight should confirm with the mill whether actual weight or theoretical weight governs the commercial invoice. Surface treatment selection follows the service environment: oiled or varnished finishes suit indoor or temporary applications, hot-dip galvanizing targets outdoor exposed structures, and 3LPE/3LPP coating addresses buried or submerged conditions requiring both corrosion and abrasion resistance.

The Hidden Cost of Accepting Unverified Tolerance and Missing Certificates

Purchasing Q235 Q345 S355 ERW square steel tube at the lowest quoted price often means accepting wall thickness at the lower edge of the tolerance band — or worse, below the declared standard’s permitted range. When a 20mm wall section measures 17mm at multiple points, the section modulus drops below the structural engineer’s design assumption, forcing either costly reinforcement or complete replacement of installed members. [NEED_CITE: structural consequences of wall thickness deviation in cold-formed hollow sections] Missing or incorrect mill test certificates create a different but equally expensive failure mode: the shipment clears the port but fails the third-party inspection at the project site, leaving the buyer to absorb return freight, replacement production time, and schedule delay penalties. Certification gaps — such as a CE mark referencing the wrong EN standard number — can trigger customs holds that last weeks in regulated markets.

Why Project Procurement Teams Consolidate ERW Tube Orders Here

Every Q235 Q345 S355 ERW square steel tube produced on our three ERW lines undergoes dimensional, mechanical, and chemical testing in our own physical and chemical laboratory before shipment — no outsourced testing delays, no certificate mismatches. We hold 41 invention patents including China’s original sharp-corner rectangular tube technology, and our 2,800+ specification range covers every standard and non-standard size from 15mm square to 800mm square with wall thickness up to 50mm. Full international certification — ISO 9001:2015, Lloyd’s CE under EN 10210 and EN 10219, Singapore FPC, and SGS/BV third-party verification — means the documentation package satisfies customs and site inspection requirements across the EU, North America, Middle East, and Southeast Asia without supplementary paperwork. Custom non-standard sizes, cut-to-length, and specific end preparation are available with low minimum order quantities. Professional container loading with anti-damage measures prevents the bending and surface scratching that cause destination rejection, and we export to 50+ countries with complete export documentation including certificates of origin.

Documentation & Compliance

• Mill test certificate documenting Q235/Q345/S355 chemical composition and mechanical properties per EN 10219, ASTM A53, or GB/T 6728 as declared on the purchase order
• CE certificate issued under EN 10210 (hot-finished) or EN 10219 (cold-formed) for structural hollow sections destined for EU member states
• ISO 9001:2015 quality management system certificate covering the full ERW square tube production process from coil intake to final inspection
• SGS or BV third-party inspection report available upon request, covering dimensional verification, visual weld inspection, and coating thickness measurement for galvanized or 3LPE treated tubes
• Heat number traceability linking each bundle to its original coil test certificate and production batch record
• Customs documentation package including packing list, bill of lading, and certificate of origin formatted to the importing country’s requirements

Packaging, Loading & Delivery

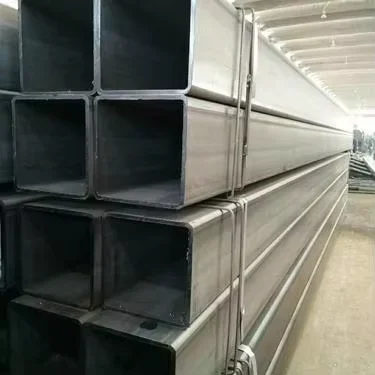

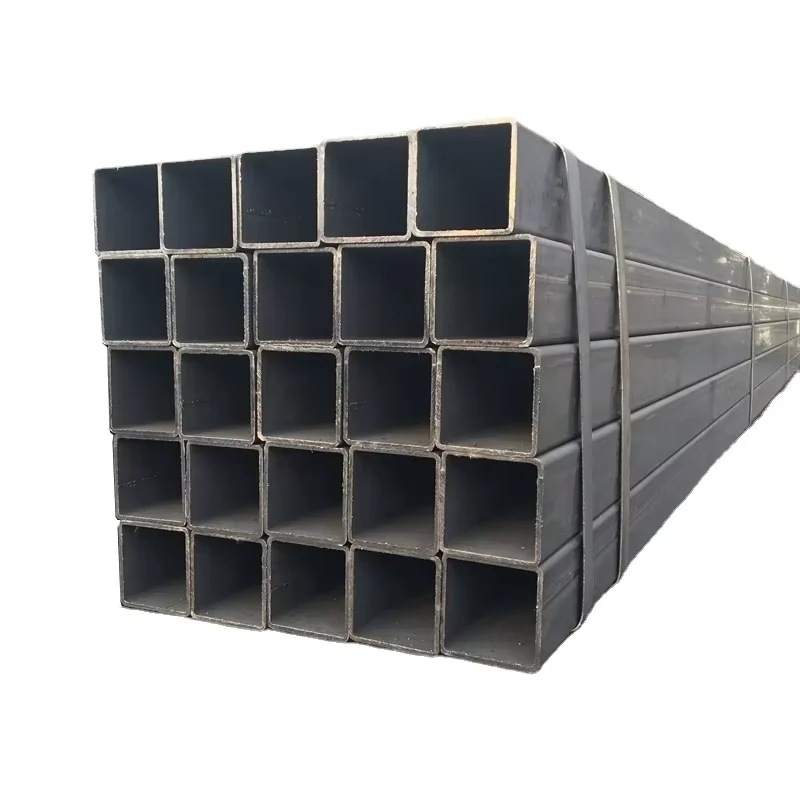

• ERW square and rectangular tubes bundled with high-tensile steel strips, separated by timber or rubber spacers to prevent surface damage to black painted or galvanized coatings during ocean transit
• Hot-dip galvanized tubes wrapped with edge protectors and waterproof sheeting to preserve zinc coating integrity and prevent white rust formation in humid container environments

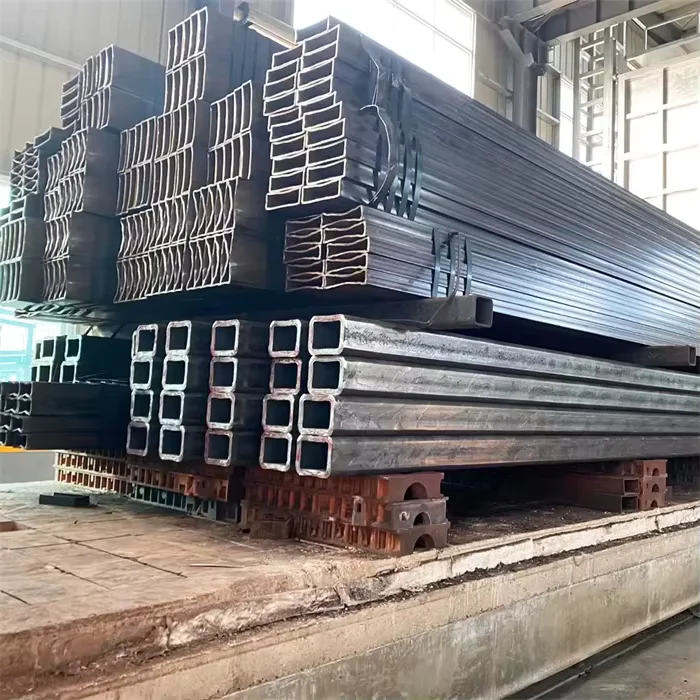

• Container loading optimized by nesting smaller-section tubes (15mm–100mm) inside larger sections (up to 800mm) to maximize payload per 20GP or 40HQ while maintaining weight distribution within port handling limits
• Cut-to-length service available for 6m and 12m standard lengths or custom dimensions, with saw-cut ends deburred and marked with heat number, steel grade, and size for site identification
• Shipping terms offered FOB, CIF, or DDP with full container tracking from Jinan port to destination, including professional lashing and bracing to prevent shift damage during rough-sea transit

Getting Your ERW Square Tube Order Quoted and Certified

Submit your required section size, wall thickness, steel grade (Q235/Q345/S355 or equivalent ASTM/EN designation), surface treatment preference, quantity, and destination port. We return a detailed quotation within 12 hours including unit price, production lead time, and shipping terms, along with sample mill test certificates for your quality team’s review. Third-party inspection by SGS or BV can be arranged before shipment for projects requiring independent verification.

Request Your ERW Square Steel Tube Quotation with Mill Test Certificates

Send your specification sheet — section size, wall thickness, grade, surface treatment, quantity, and destination — to receive a detailed quotation and sample test certificates within 12 hours.

Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd

Website: www.sdxjypipe.com

Tel: +86 531 8573 6315

Mobile/WhatsApp/WeChat: +86 188 5315 7756

Email: admin@sdxjypipe.com

Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China

Frequently Asked Questions

Q: How do Q235/Q345 (GB) grades map to S235JR/S355J2 (EN) and ASTM A53 equivalents?

A: Q235 corresponds broadly to S235JR in yield strength range and to ASTM A53 Grade A. Q345 aligns with S355JR/S355J2 in minimum yield strength, though S355J2 adds mandatory Charpy impact testing at −20°C that Q345B does not require. We provide a grade equivalence table with every quotation so your engineering team can confirm the correct substitution for your design code.

Q: Can you provide CE certification and third-party inspection for EU import?

A: Yes. Our Q235 Q345 S355 ERW square steel tube carries Lloyd’s CE marking under EN 10219 (cold-formed) and EN 10210 (hot-finished) as applicable. SGS or BV third-party inspection is available on request and covers dimensional checks, visual weld inspection, and coating thickness measurement before shipment.

Q: What is the minimum order quantity for custom non-standard sizes?

A: Standard sizes ship from stock with no minimum order constraint beyond one bundle. Custom non-standard sizes and cut-to-length orders are produced on our ERW lines with typical production lead times, and we accommodate low MOQ for project-specific requirements. Contact us with your exact dimensions for a tailored production quote.

Q: How should I choose between black painted, galvanized, and 3LPE surface treatment?

A: Black painted or oiled finish suits indoor structural applications or projects where the tube will be painted on site. Hot-dip galvanizing provides long-term corrosion protection for outdoor exposed structures and coastal environments. 3LPE or 3LPP coating is specified for buried or submerged applications requiring both corrosion resistance and mechanical protection against abrasion during backfilling.

Q: How is negative wall thickness tolerance handled in commercial weight calculation?

A: Our ERW square tube is produced to ±1% wall thickness tolerance per the declared standard. Orders can be invoiced by theoretical weight (calculated from nominal dimensions) or actual weight (measured at the mill). We recommend confirming the weight basis before contract signing to avoid disputes at delivery.
