Description
Factory-Direct Galvanized Tubes — Hot-dip galvanized rectangular steel tubes produced on our own ERW lines, shipped without trading markups to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Galvanized Rectangular Steel Tube |
| Product Type | Galvanized Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB, JIS, API, SNI, BIS |
| Section Shape | Rectangular |
| Size Range (Side Length) | 10–914 mm (0.39–35.98 in) |
| Length | Customer’s request |
| Technique | Welded (ERW) |
| Surface Treatment | Hot-Dip Galvanized Coated |
| Tolerance | ±1% |
| Invoicing | By Theoretical Weight |
| Packing | Customized Packing |
| Application | Construction frames / Steel structures / Scaffolding / Architectural facades / Curtain wall framing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Column frames, roof trusses, mezzanine supports, scaffolding uprights |
| Architectural Facades | Exposed curtain wall mullions, glass canopy brackets, decorative structural beams |
| Infrastructure & EPC | Bridge handrails, industrial platform framing, solar mounting structures, conveyor supports |
| Steel Fabrication | Welded portal frames, equipment skids, pipe rack supports |
Coating Uniformity Is What Separates Field-Ready GI Tubes from Site Rejections
A galvanized rectangular steel tube supplier that cannot guarantee consistent zinc thickness will cost you more in touch-up labor than you save on unit price.
On facade projects across the Gulf, I have seen entire batches pulled off the truck because the zinc coating was patchy — thick on the flat faces, nearly bare at the corners where the current density drops during galvanizing. The contractor’s inspector rejects it on the spot. Re-coating on site means grinding, priming, and re-galvanizing, which no hot-dip facility abroad can match in quality. Sourcing from a galvanized rectangular steel tube supplier with in-house coating control and third-party inspection avoids that cascade of delays. [NEED_CITE: hot-dip galvanizing coating thickness requirements for structural hollow sections]
Matching the Right Rectangular Profile to Curtain Wall and Scaffold Loads
A galvanized rectangular steel tube used in curtain wall framing must carry wind load and self-weight while maintaining straight edges for glass panel alignment. The rectangular section offers higher moment of inertia along the strong axis compared to round pipe, reducing deflection under lateral load. For scaffolding uprights, Q235 grade provides adequate yield strength for standard modular systems, while Q345 is specified where longer spans or heavier duty platforms are required. Our ERW welding process produces a clean internal seam that does not interfere with internal gusset plates or bolt-through connections commonly used in steel structure fabrication.
Structural Code Compliance and Corrosion Environment Selection
Load-bearing frames designed under EN 1993 or AISC 360 require verified material properties and traceable heat numbers. Hot-dip galvanizing delivers coating masses typically in the Z275–Z600 range, providing 20–50+ years of corrosion protection in C3–C4 atmospheric environments per ISO 12944. For coastal or industrial sites with higher chloride or SO₂ exposure, specifying Q345 grade with heavier coating class extends maintenance-free service life. Export shipments to EU markets must carry CE marking per EN 10219, while Middle East and Southeast Asia projects often accept GB or JIS equivalents — confirming the correct standard before order placement prevents customs holds. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections certification requirements]
Understanding Q-Grade Steel and ERW Welding for Structural Tubes
The Q-series designation (Q195, Q215, Q235, Q345) follows the Chinese GB/T 700 and GB/T 1591 standards, where the number indicates the minimum yield strength in MPa. Q235 is the workhorse grade for general construction — comparable in application scope to S235JR in EN or A36 in ASTM. Q345 offers higher strength for reduced section sizes, similar to S355JR or A572 Gr.50. ERW (Electric Resistance Welded) forming is the standard method for rectangular hollow sections in this size range: cold-rolled strip is formed through continuous rolls and welded by high-frequency current, producing a consistent seam with minimal heat-affected zone. After welding, the tube passes through the galvanizing bath, where the metallurgical zinc-iron bond forms on all surfaces — including the interior — providing full-spectrum corrosion protection that pre-galvanized (sheet-coated) tubes cannot achieve.
The Hidden Price of Buying GI Tubes Without Verified Coating and Mill Certs
Choosing the lowest-quoted galvanized rectangular steel tube supplier often means accepting thin or uneven zinc, unverified chemistry, or negative tolerance beyond the declared ±1%. When the coating falls below specification, the structure corrodes prematurely — rust bleeding through paint within two or three seasons on a facade. When chemistry or yield strength does not match the declared grade, the engineer’s calculation no longer holds, and the building inspector flags the entire batch. When tolerance is off, connections do not fit, forcing field cutting and re-welding that breaks the galvanized layer and invites corrosion at every joint. [NEED_CITE: consequences of non-conforming galvanized coating on structural steel service life]
Why Project Procurement Teams Specify Our Mill Direct
We operate three dedicated ERW lines covering 2,800+ rectangular and square specifications, so non-standard sizes do not require minimum order quantities that block small-batch facade orders. Our in-house physical and chemical laboratory tests every heat for composition, yield, tensile, and coating adhesion before release — the mill test certificate you receive is generated from actual production data, not a template. Full CE certification under EN 10210/EN 10219, Singapore FPC, and ISO 9001:2015 are maintained and available for every shipment, which clears EU and regulated-market customs without supplementary documentation requests. Our patented sharp-corner rectangular tube technology — holding 41 invention patents — delivers true 90-degree internal corners that standard rounded-corner tubes cannot, critical for glass curtain wall aesthetics and flush bolted connections. Professional container loading with edge protectors and anti-shift bracing preserves the galvanized surface through ocean transit, eliminating the corner-scraping damage that triggers port-side rejection.
Documentation & Compliance
- Mill Test Certificate documenting Q235 or Q345 chemical composition and mechanical properties per GB/T 700 or GB/T 1591, traceable to heat number
- CE Certificate confirming compliance with EN 10219 for cold-formed welded structural hollow sections, required for EU market entry
- ISO 9001:2015 Quality Management System certificate covering the full production and galvanizing process
- SGS or BV third-party inspection report verifying coating thickness, dimensional tolerance, and surface quality before shipment
- Material traceability report linking each bundle to its heat number, production date, and galvanizing batch
- Full customs documentation set including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

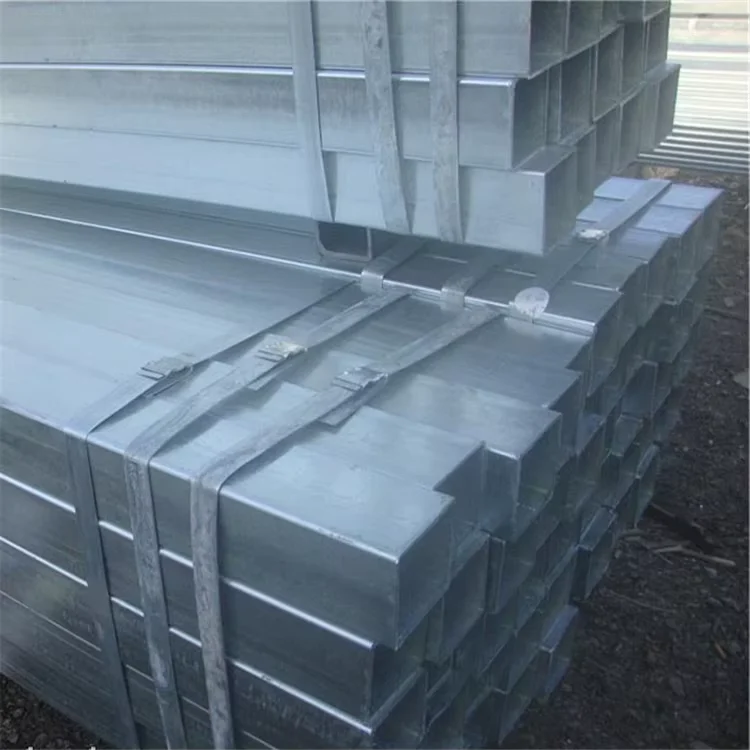

- Hot-dip galvanized rectangular tubes bundled with steel straps and fitted with plastic edge protectors to prevent zinc coating abrasion at corners during transit
- Seaworthy packaging with waterproof interleave paper between layers for long-length tubes (up to 12 m) to avoid moisture trapping that causes white rust on the galvanized surface
- Container loading optimized for 20ft and 40ft open-top or standard dry containers, with anti-shift timber bracing to prevent bundle movement in rough sea conditions — critical for preserving coating integrity
- Custom cut-to-length service available per project drawing, with heat number and steel grade stenciled on each piece for on-site traceability
- FOB, CIF, and DDP shipping terms supported, with professional tube-loading teams experienced in maximizing payload while protecting galvanized surfaces
- Door-to-door logistics coordination to Middle East, Southeast Asia, EU, and South American ports, with full tracking until discharge
Start Your Inquiry With Dimensions, Grade, and Destination
Submit your rectangular tube dimensions (width × height × wall thickness), steel grade (Q235 or Q345), total tonnage or piece count, and destination port — we respond within 12 hours with a detailed quotation including unit price, production lead time, and shipping terms. For non-standard sizes or sharp-corner requirements, our engineering team provides a custom drawing confirmation before production begins. Mill test certificates and CE documentation are confirmed in the proforma invoice, so your customs broker has everything needed before the vessel sails.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized rectangular tubes?
A: Hot-dip galvanizing immerses the finished welded tube in molten zinc, forming a metallurgical bond on all surfaces including the interior. Pre-galvanized tubes are made from already-coated steel strip, leaving the weld seam and cut edges unprotected. Hot-dip provides superior corrosion resistance for structural and outdoor applications.
Q: Can you produce non-standard rectangular sizes and what is the minimum order?
A: Yes. Our 2,800+ specification range covers custom width, height, wall thickness, and length combinations beyond standard catalog sizes. Minimum order quantities for non-standard sizes are flexible — contact us with your drawing for a specific MOQ quote.
Q: How do you ensure coating uniformity on the galvanized rectangular steel tube?
A: Each batch undergoes in-house coating thickness testing using magnetic gauges at multiple points per piece, with particular attention to corners where current density varies. Third-party inspection by SGS or BV is available upon request to verify coating mass and adhesion before shipment.
Q: What certifications do you provide for EU and international markets?
A: We hold CE certification per EN 10210/EN 10219 for EU structural hollow sections, Singapore FPC for Southeast Asian regulated projects, and ISO 9001:2015 for quality management. Mill test certificates, certificates of origin, and third-party inspection reports are provided with every export shipment.
Q: What is the typical production lead time and how do you handle export packing?
A: Standard sizes ship from stock; custom sizes and non-standard dimensions enter production with typical lead times of 15–25 days. All galvanized tubes are bundled with edge protectors, braced in containers to prevent shifting, and loaded by our specialized team to preserve the zinc coating through ocean freight.
