Description
Factory-direct Q235 galvanized square steel tube supply — 3 production lines covering 2,800+ specifications with wall thickness up to 80mm, shipped to 50+ countries with full CE and ISO documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, S235, SS400 |
| Standard | GB, EN 10219, EN 10210, ASTM A500 |
| Section Shape | Square / Rectangular / Round |
| Size Range | Customizable per inquiry |
| Wall Thickness | 0.5–80 mm |
| Length | 6 m (standard), customizable |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-dip Galvanized / Electrogalvanized |
| Zn Coating Thickness | 30–650 g/m² |
| Tolerance | ±1% |
| Ends | Plain |
| Packing | Export standard packing or customized |
| Application | Construction frames / Scaffolding / Steel structures / Machinery / Furniture / Bridge / Electrical installation |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, scaffolding systems, bridge support structures |
| Architectural Facades | Glass curtain wall framing, sharp-corner rectangular tubes for clean visual lines |
| Industrial Machinery | Conveyor structures, equipment frames, precision structural components |
| Electrical & Utilities | Cable tray supports, electrical installation frameworks, utility pole structures |
| Steel Fabrication | Raw material for welded assemblies, structural connectors, modular construction elements |
What Uneven Zinc Coating Costs on a Galvanized Square Steel Tube Order
Coating inconsistency triggers site rejection, re-galvanizing expenses, and project delays that far exceed the original material savings.
I still remember a 40-foot container of galvanized scaffold tubes we sent to a high-rise project in Dubai — the client’s inspector pulled out a coating thickness gauge right at the dock and the zinc layer read 45 microns instead of the 70 required by ASTM A123. The whole batch got rejected, re-galvanizing locally cost them triple, and I lost that account. That’s why I now personally check every galvanized pipe order against the spec sheet before it leaves Jinan.
Beyond coating thickness, rounded corners on standard rectangular tubes create aesthetic problems for facade applications where sharp visual lines are required. Missing CE certificates or incorrect EN standard references block EU customs clearance entirely. And improper container loading causes bending and zinc coating damage during ocean transit — defects that only become visible when containers open at destination. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
How Wall-Thickness Range Matches Structural Load Requirements
The 0.5–80mm wall thickness range of our galvanized square steel tube covers everything from light-duty furniture frames to heavy structural applications in bridges and high-rise construction. Thinner walls (0.5–3mm) suit non-load-bearing applications like electrical installations and furniture, while medium thickness (3–10mm) handles typical building frames and scaffolding. Heavy-wall sections (10–80mm) serve as primary structural members in industrial facilities and infrastructure projects where load capacity and corrosion resistance must coexist. The hot-dip galvanizing process with zinc coating up to 650 g/m² ensures long-term protection even in coastal or industrial environments where atmospheric corrosion accelerates.
Engineering Compliance and Certification Requirements
Structural applications require compliance with EN 1993 (Eurocode 3) for steel structures or AISC specifications in North America, which demand verified material properties and dimensional accuracy. Our galvanized square steel tube meets EN 10219 for cold-formed welded structural hollow sections and EN 10210 for hot-finished profiles, with full Lloyd’s CE certification for EU market access. The ±1% dimensional tolerance ensures predictable connection details and weld preparation on site. For projects requiring third-party verification, we arrange SGS or BV inspection before shipment, providing mill test certificates with chemical composition and mechanical properties per heat number. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances]
Steel Grade Selection and ERW Welding Process
Q235 remains the workhorse grade for general construction in China and markets accepting GB standards, offering adequate strength for most framing applications. S235 serves as the European equivalent, while SS400 covers Japanese industrial specifications — all three share similar yield strength ranges suitable for non-critical structural use. Q345 and higher grades provide increased load capacity for heavy-duty applications. The ERW (Electric Resistance Welded) process produces consistent weld seams with minimal heat-affected zone, maintaining base metal properties throughout the tube cross-section. Hot-dip galvanizing after forming ensures complete coverage including the weld zone, unlike pre-galvanized sheet which leaves the weld exposed to corrosion.
Hidden Costs of Incorrect Material Specification
Ordering the wrong steel grade or insufficient zinc coating creates cascading expenses: customs rejection due to missing CE documentation, structural inspection failures requiring material replacement, and accelerated corrosion in aggressive environments leading to premature maintenance. Negative tolerance abuse — where actual wall thickness falls below specified minimums — reduces load capacity while maintaining theoretical weight pricing, shifting cost to the buyer through structural redesign or safety factor increases. Material traceability gaps prevent proper documentation for regulated projects, blocking payment milestones and creating liability exposure. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards]
Why Source Your Galvanized Square Steel Tube From Us
Our 41 invention patents include China’s first sharp-corner rectangular tube technology, filling market gaps for architectural facades requiring clean 90-degree corners instead of rounded profiles. The in-house physical and chemical laboratory performs dimensional, mechanical, and coating thickness testing on every production batch, with full mill test certificates issued per heat number. We maintain 2,800+ specifications in stock for rapid dispatch while producing custom non-standard sizes with low MOQ requirements. Full international certifications — ISO 9001:2015, Lloyd’s CE (EN 10219/10210), Singapore FPC, and SGS/BV verification — ensure smooth customs clearance across 50+ export destinations. Professional container loading with anti-damage measures prevents bending and zinc coating scratches during ocean freight, while our designated supplier status for major state-owned enterprises demonstrates consistent quality delivery.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per GB standard, with heat number traceability
- CE certificate confirming EN 10219/EN 10210 compliance for structural hollow sections in EU markets
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report available upon request for projects requiring independent verification
- Material traceability documentation linking each bundle to specific heat numbers and production dates
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

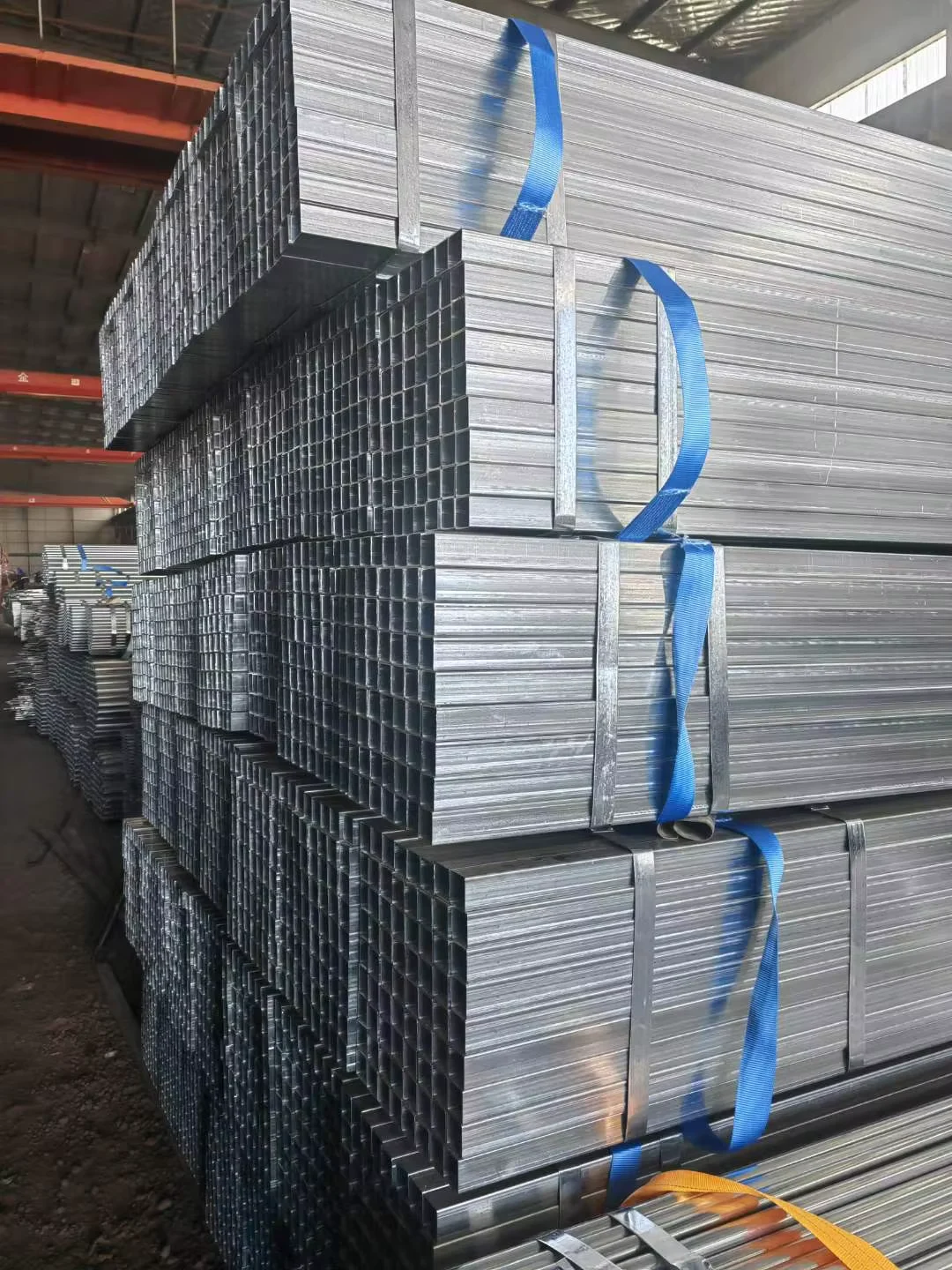

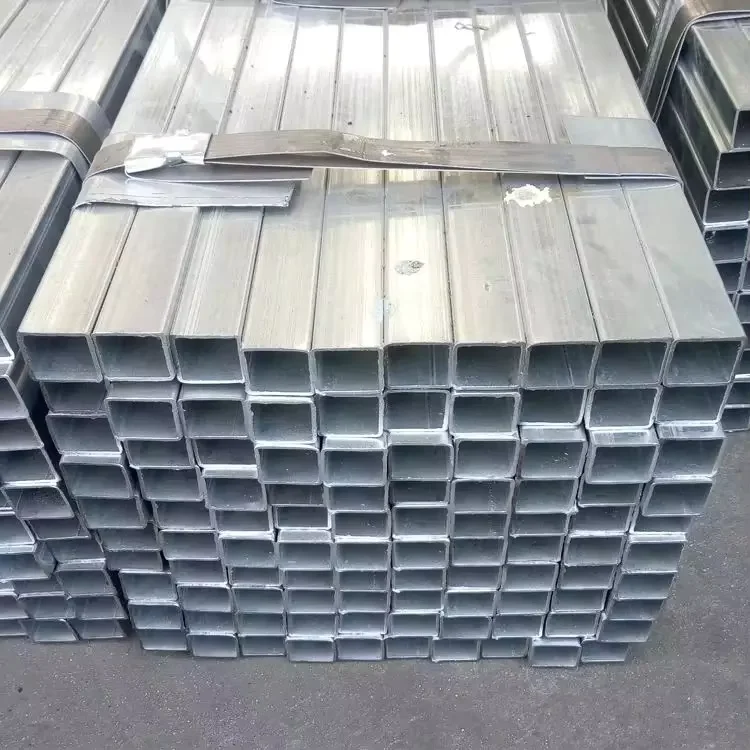

- Galvanized tubes bundled with edge protectors and steel strips to preserve zinc coating during ocean transit
- Hot-dip galvanized surface protected by proper stacking methods preventing coating damage from contact friction
- Container loading optimized for 6m standard length or custom cut lengths, maximizing payload while preventing shifting
- Plain ends capped or wrapped to prevent moisture ingress and zinc oxidation during storage and transport
- Heat number and steel grade marked on each tube for site identification and traceability verification
- FOB, CIF, or DDP shipping terms available with door-to-door logistics coordination to final destination
How to Request a Quotation for Your Project
Submit your specifications including tube dimensions, wall thickness, steel grade, zinc coating requirement, quantity, and destination port to receive a detailed quotation within 12 hours. We provide mill test certificates and CE documentation preview before contract signing, with third-party inspection available for quality confirmation. Custom non-standard sizes enter production within typical lead times, while standard specifications ship from existing stock.
Request Your Galvanized Square Steel Tube Quote Today
Send your project specifications to receive pricing, certification documentation, and delivery timeline. Our technical team reviews requirements for grade equivalence and coating suitability before quotation.
