Description
Factory-Direct Galvanized Tubes — Every batch verified against coating weight reports in our in-house laboratory before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|

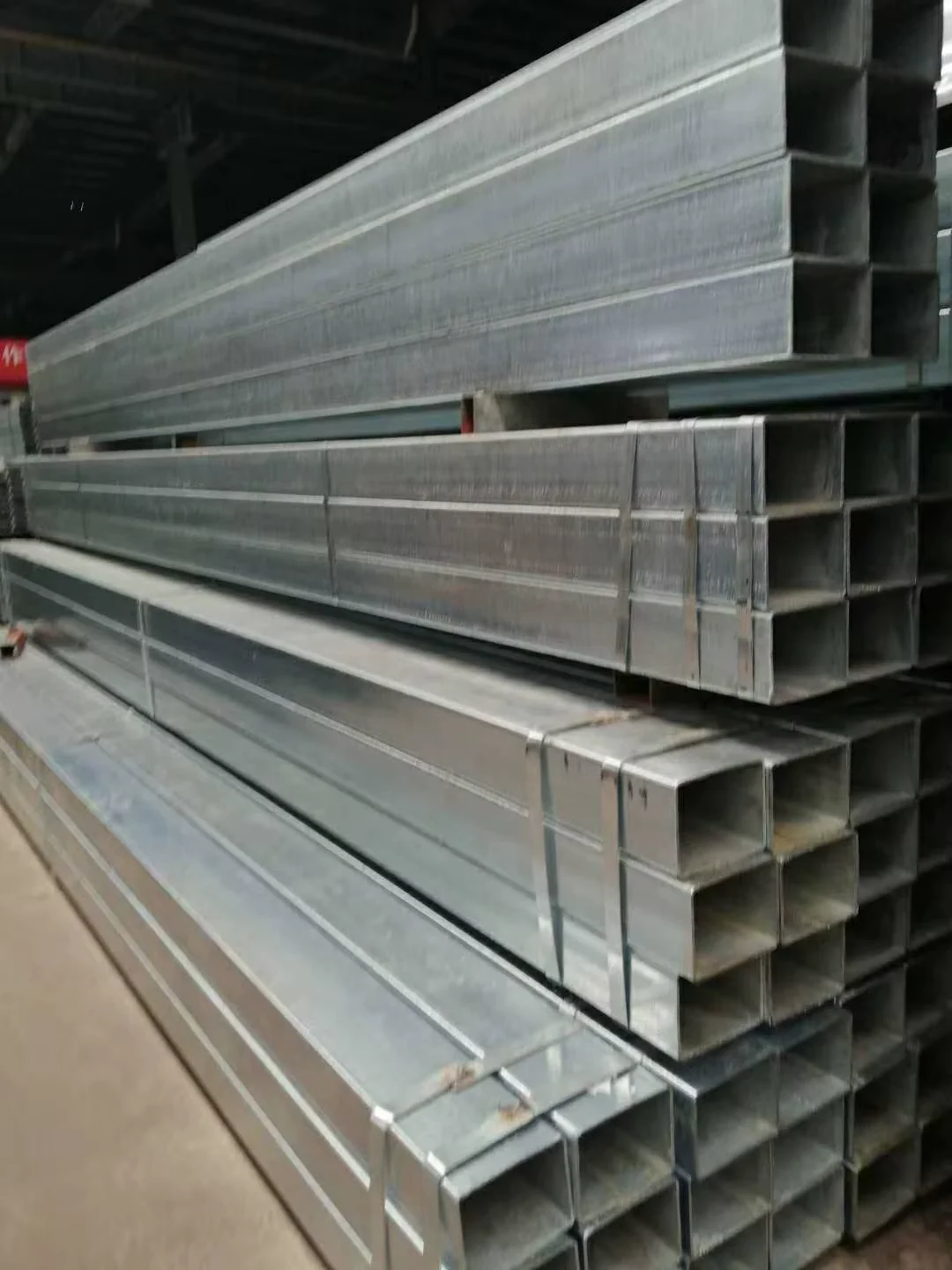

| Designation | Q235 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q235, DX51D, SGCC, G450, G550, S550GD |
| Standard | GB, ASTM, JIS |
| Section Shape | Square / Rectangular |
| Wall Thickness | 0.12 – 0.2 mm |
| Length | 1 – 12 m |
| Technique | Hot-Dipped Galvanized |
| Surface Treatment | Galvanized Coated (Zinc Coating 30 – 600 g/m²) |
| Spangle Type | Regular Spangle |
| Skin Pass | Yes |
| Oiled or Non-oiled | Non-oiled |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending |
| Hardness | Hard |
| Application | Water supply, construction support, scaffolding, structural frames, fences, containers |
| MOQ | 5 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Scaffolding systems, structural frames for warehouses, water supply pipe racks |
| Infrastructure | Highway sound barrier supports, bridge handrail posts, solar panel mounting frames |
| Agriculture & Storage | Livestock fencing, greenhouse structural frames, grain silo supports |
| Industrial Fabrication | Conveyor roller frames, machine guards, small tool housings, container corner posts |
Zinc Coating Weight Decides Whether Your Galvanized Tubes Survive the First Year
A 30 g/m² zinc layer will not protect structural members in coastal or industrial atmospheres — specify coating weight by environment, not by price.
Procurement teams often receive quotes quoting “galvanized” without distinguishing 30 g/m² from 275 g/m² or 600 g/m². The visual difference on arrival is negligible; the corrosion timeline is not. [NEED_CITE: hot-dip galvanized zinc coating thickness classification per ISO 1461] We have seen containers arrive at destination with white rust bloom on tubes that were technically “galvanized” but coated below the threshold needed for the project’s atmospheric category. The Q235 hot dipped galvanized square and rectangular steel tube supplier you choose must document coating weight per heat number, not per batch average.
Matching Corrosion Protection to Project Atmosphere Categories
The Q235 hot dipped galvanized square and rectangular steel tube range covers zinc coatings from 30 g/m² for indoor, dry environments to 600 g/m² for coastal or heavy industrial exposure. Selecting the correct coating weight requires matching the project’s C2–C5 atmospheric corrosion category to minimum zinc thickness. Hot-dip galvanizing produces a metallurgical bond between zinc and steel substrate, providing cathodic protection even at cut edges — unlike electroplated alternatives. For structural frames in C3 environments, 275 g/m² is the practical minimum; for C4 and C5 zones, 600 g/m² extends service life substantially.
Structural Compliance and Certification Requirements
Load-bearing applications require mill test certificates documenting chemical composition and mechanical properties per the applicable standard framework. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional and tolerancing requirements] For EU-bound projects, CE certification per EN 10210 (hot-finished) or EN 10219 (cold-formed) is mandatory for customs clearance. The Q235 grade conforms to Chinese GB standards and can be cross-referenced to S235JR under EN standards or A36 under ASTM, though formal equivalence requires documented chemical and mechanical comparison. Third-party inspection by SGS or BV before shipment provides independent verification of coating weight, dimensional accuracy, and surface quality.
Understanding Q235 Grade and Hot-Dip Galvanizing Process
Q235 is a carbon structural steel with moderate yield strength suitable for general fabrication, scaffolding, and non-critical structural members. The “Q” designates yield point, and “235” indicates the minimum yield value in MPa under GB classification. Hot-dipped galvanizing immerses cleaned steel in molten zinc, forming a series of zinc-iron alloy layers topped by pure zinc — this layered structure provides both barrier and sacrificial protection. The regular spangle finish visible on the surface indicates standard solidification patterns and does not affect corrosion performance. Skin-pass rolling after galvanizing improves surface flatness and reduces spangle prominence for architectural applications. Wall thickness tolerance of ±1% ensures consistent structural calculations and predictable weight per meter.
Hidden Costs of Under-Specified Galvanized Procurement
Ordering galvanized tubes without specifying minimum coating weight invites early corrosion failure, project rejection, or costly on-site recoating. [NEED_CITE: consequences of inadequate zinc coating on hot-dip galvanized steel service life] Material substitution — receiving lower-grade steel with thinner coating than specified — creates structural liability and voids engineering certifications. Missing or falsified mill test certificates block customs clearance in regulated markets and delay project timelines. Dimensional tolerance beyond ±1% causes fit-up problems during assembly, requiring field cutting and rework that compromise corrosion protection at modified joints.
Why SD XJY Pipe for Galvanized Square and Rectangular Tubes
We operate three production lines covering over 2,800 specifications, allowing single-source procurement for mixed-size container orders. Our in-house physical and chemical laboratory tests every heat for coating weight, adhesion, and dimensional accuracy before release. The patented sharp-corner rectangular tube technology delivers true 90° edges for architectural facades where standard rounded-corner tubes create visible gaps. Full international certification portfolio — ISO 9001:2015, Lloyd’s CE per EN 10210/10219, Singapore FPC — supports customs clearance across 50+ export destinations. Custom non-standard sizes and lengths reduce on-site cutting waste, while professional container loading with edge protectors preserves zinc coating integrity during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition (C, Mn, Si, P, S) and mechanical properties per GB/T 700
- CE certificate per EN 10219 for cold-formed galvanized structural hollow sections exported to EU markets
- ISO 9001:2015 quality management certificate covering galvanizing process control and inspection procedures
- SGS or BV third-party inspection report verifying zinc coating weight (30–600 g/m²) and dimensional tolerance
- Material traceability by heat number linking each tube to production batch and coating bath records
- Export documentation including packing list, bill of lading, and certificate of origin for destination customs
Packaging, Loading & Delivery

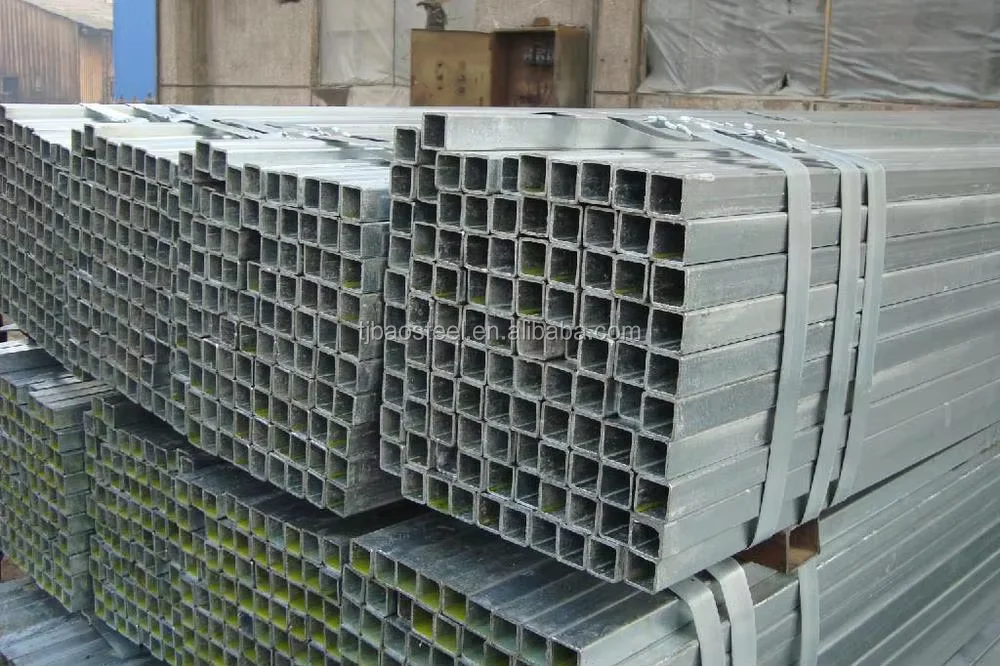

- Galvanized square and rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Non-oiled surface finish requires careful stacking with interleaving materials to avoid contact marks on the regular spangle surface

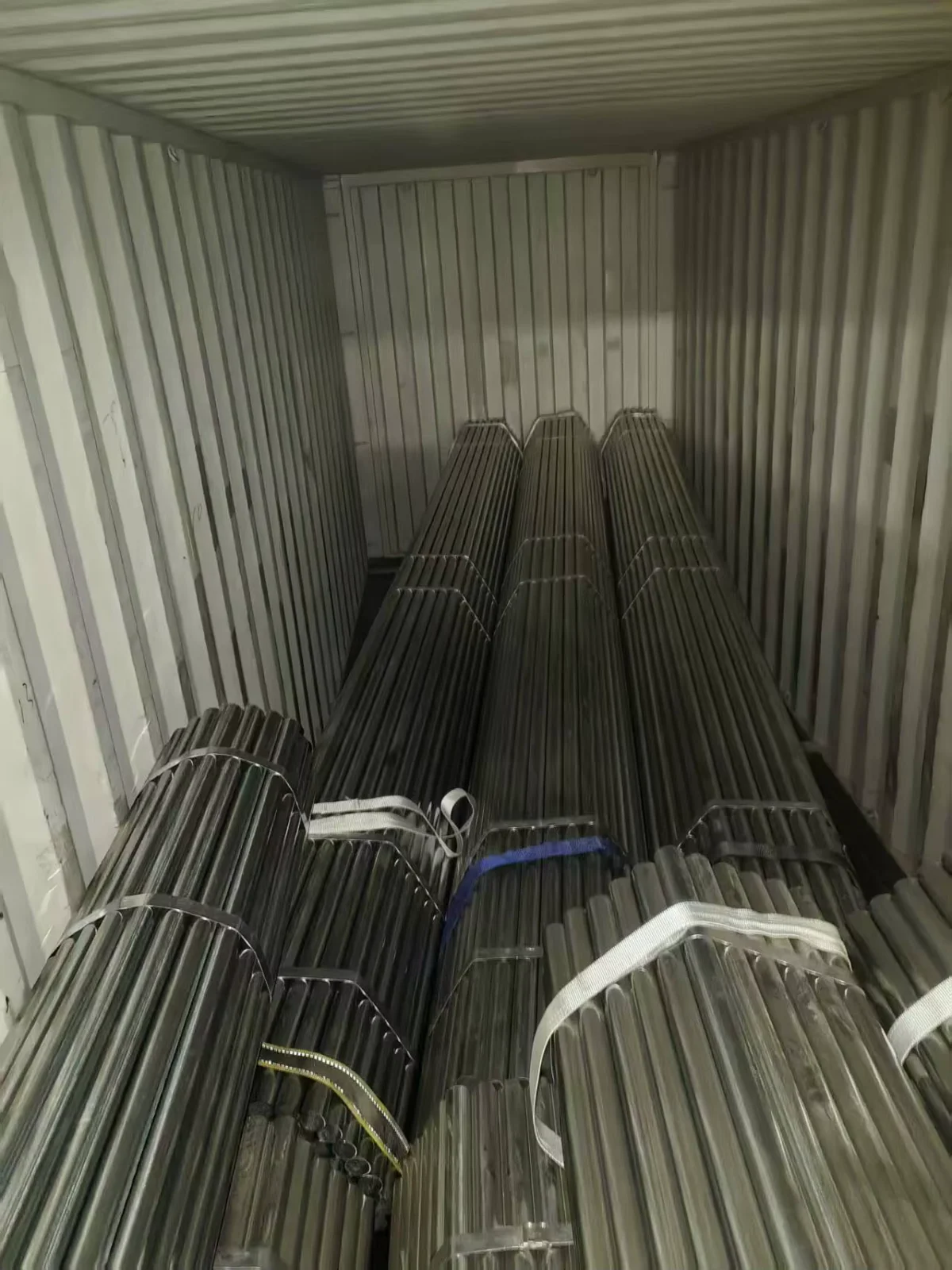

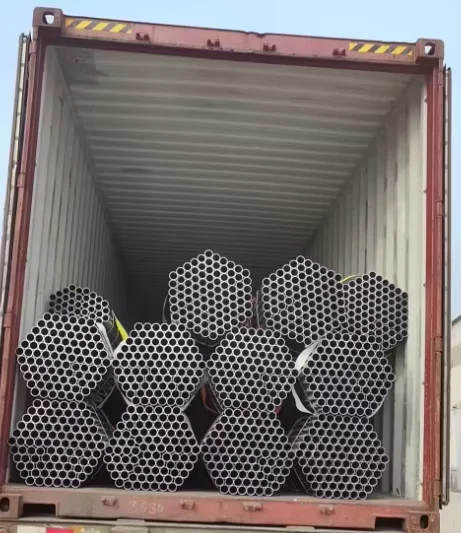

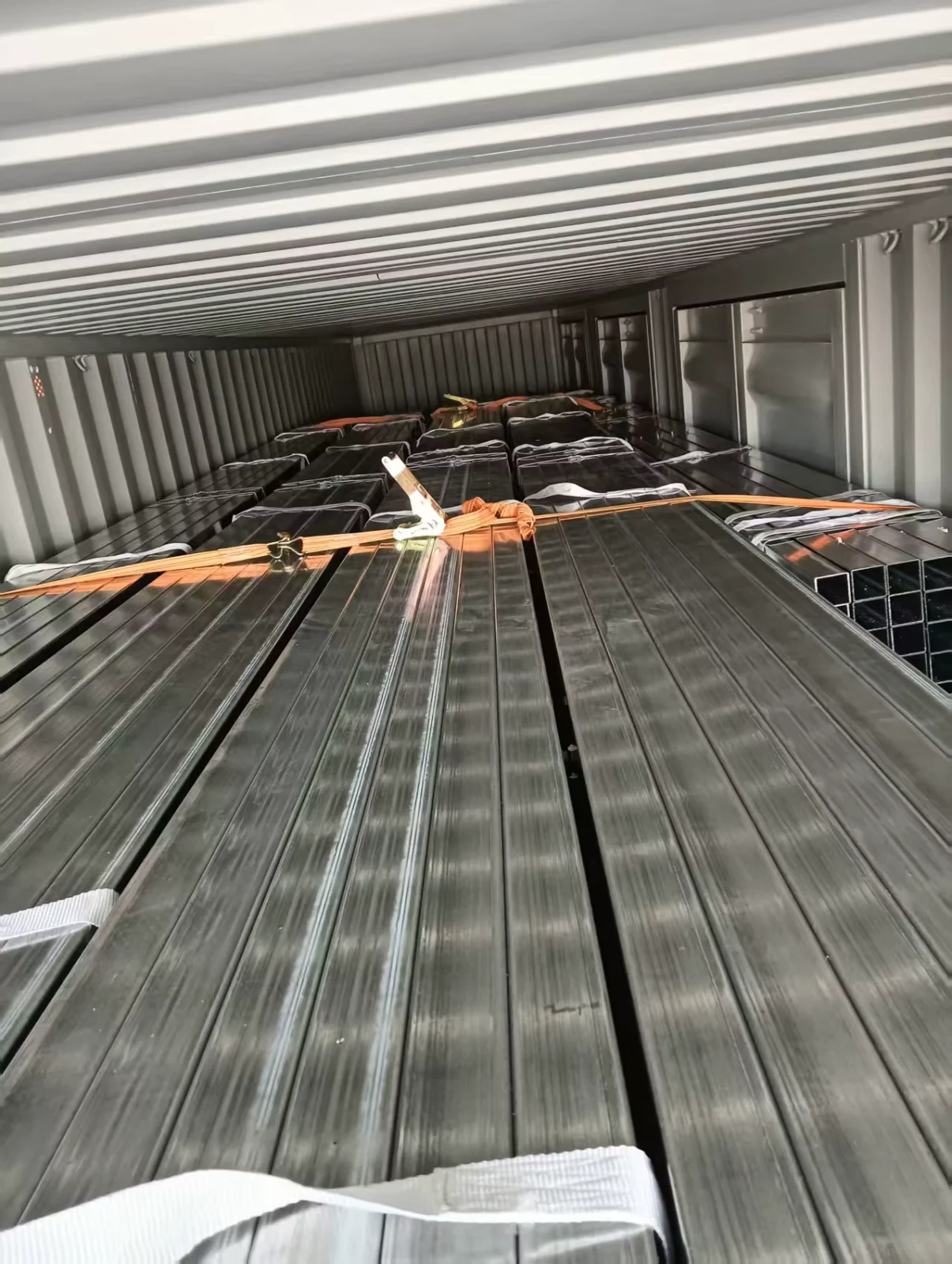

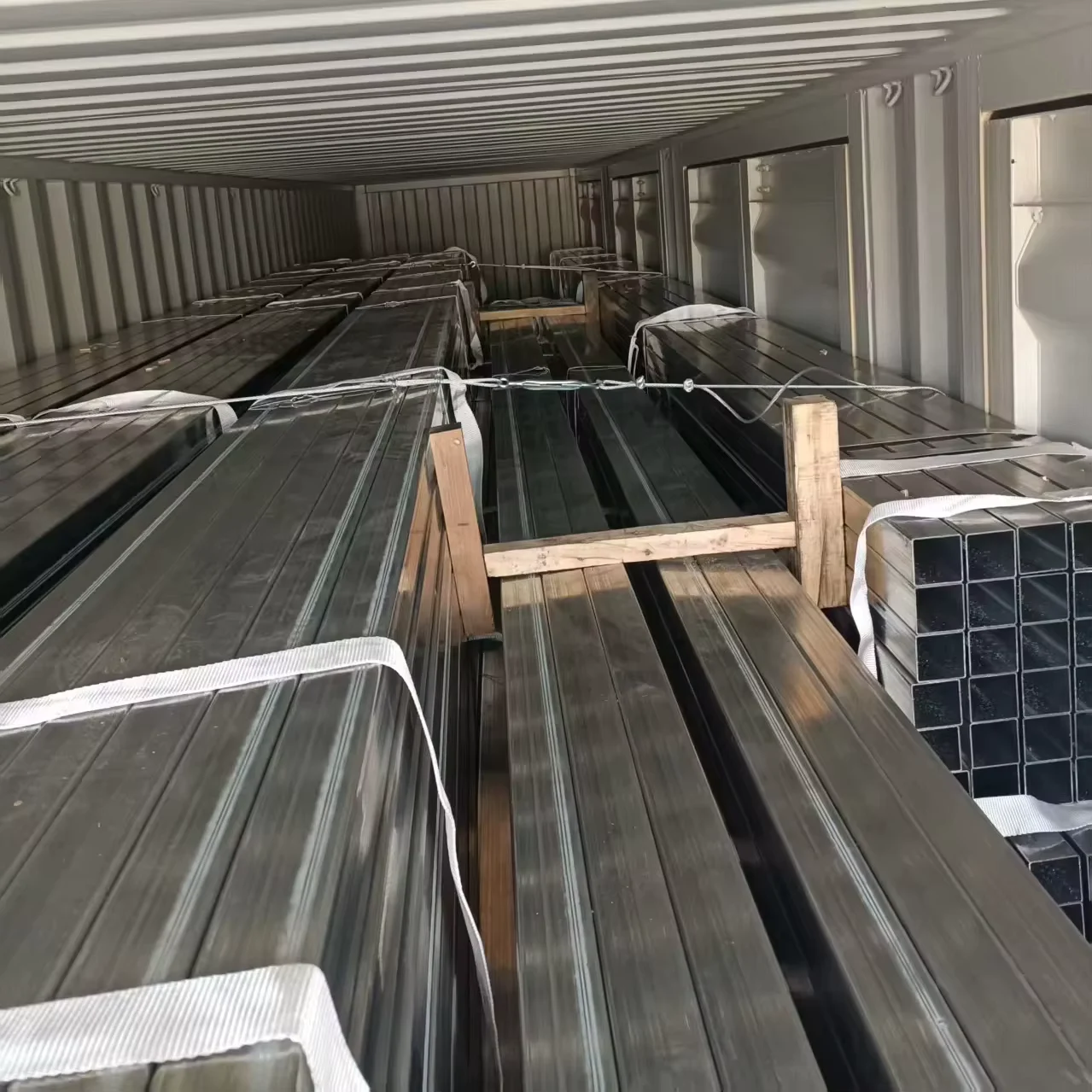

- Container loading optimized for 1–12 m lengths with weight distribution calculated to prevent bundle shift and corner damage
- Heat number and steel grade (Q235/SGCC/G450) stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional tube loading crew ensuring secure bracing for 5-ton minimum orders
- Custom cutting to project-specified lengths available before galvanizing to ensure full zinc coverage on cut ends
Getting Your Galvanized Tube Quote with Full Documentation
Submit your specification sheet including section dimensions, wall thickness, length, steel grade, zinc coating weight requirement, and destination port. We respond within 12 hours with unit pricing, MOQ confirmation, production lead time, and available mill test certificate formats. For non-standard sizes outside the 2,800+ specification range, we provide custom tooling feasibility and timeline assessment. Third-party inspection by SGS or BV can be arranged before shipment for projects requiring independent quality verification.
Frequently Asked Questions
Q: What zinc coating weight should I specify for outdoor structural applications?
A: For outdoor structural frames in moderate environments (C3 atmospheric category), specify minimum 275 g/m². For coastal or industrial exposure (C4–C5), request 600 g/m². The Q235 hot dipped galvanized square and rectangular steel tube range covers 30–600 g/m², and we document actual coating weight per heat number on the mill test certificate.
Q: Can you provide CE certification for EU customs clearance?
A: Yes. Our galvanized square and rectangular tubes carry CE certification per EN 10219 for cold-formed structural hollow sections. The CE certificate, along with Declaration of Performance and mill test certificates, supports customs clearance across EU member states. We have exported galvanized tubes to over 50 countries with full documentation compliance.
Q: What is the MOQ for mixed-size container orders?
A: The minimum order quantity is 5 tons per size, or 25 tons for a full 20-foot container with mixed specifications. Our 2,800+ specification range allows consolidation of multiple sizes in a single shipment, reducing per-ton logistics cost for projects requiring varied dimensions.
Q: How do you ensure coating thickness matches the specification?
A: Every production batch undergoes coating weight testing in our in-house physical and chemical laboratory using magnetic induction or gravimetric methods per ISO 1461. Results are documented on the mill test certificate by heat number. Third-party inspection by SGS or BV can be arranged before shipment for independent verification.
Q: Do you offer sharp-corner rectangular tubes for architectural applications?
A: Yes. We hold 41 patents for sharp-corner (right-angle) rectangular tube technology, delivering true 90° edges for glass curtain walls and architectural facades. This patented process fills the gap left by standard rectangular tubes with rounded corners (R≥2t), providing superior aesthetics and structural performance for high-end construction projects.
Request Your Q235 Galvanized Tube Quote with Mill Test Certificate
Send your specification including section size, wall thickness, length, steel grade, zinc coating requirement, and destination port to receive pricing and documentation details within 12 hours.
