Description
Factory-Direct Galvanized Tubes — ASTM-certified Hot Dip Galvanized Square Rectangular Steel Tube produced in-house with verified zinc coating thickness on every batch.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Galvanized Square/Rectangular Steel Tube |
| Product Type | Hot Dip Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Carbon Steel (Q195–Q235 equivalent) |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Size Range | 20×40 mm (custom sizes available) |
| Wall Thickness | 0.5 mm and above (typical range for galvanized SHS/RHS) |
| Length | Customized |
| Technique | Hot Rolled Based / Welded |
| Surface Treatment | Hot-Dip Galvanized (Z10–Z29 coating) |
| Spangle Type | Regular Spangle |
| Surface Condition | Non-oiled, Skin Passed |
| Tolerance | ±1% / ±5% |
| Processing Services | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Construction frames, petrochemical structures, machinery supports, container fabrication, corrugated sheet support |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Facade | Structural framing for glass curtain walls, architectural steel facades, building column supports |
| Industrial Machinery | Equipment bases, machinery support frames, conveyor structure members |
| Petrochemical & Infrastructure | Pipe rack structures, platform grating supports, petrochemical plant frameworks |
| Container & Modular Building | Container corner castings, modular housing frames, corrugated sheet purlins |
Zinc Coating Thickness Decides Whether Your Galvanized Tubes Pass Site Inspection
Inconsistent zinc coating is the single most common reason galvanized hollow sections fail third-party inspection at destination.
I have seen entire container loads of 20×40 mm hot-dip galvanized tubes rejected because the coating measured only 45μm against a 65μm contract requirement. The buyer’s SGS inspector caught it within hours of container opening. The cost was not just the re-galvanizing — it was three weeks of project delay, re-shipping, and a damaged supplier relationship. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural hollow sections] When sourcing Hot Dip Galvanized Square Rectangular Steel Tube ASTM products, buyers often discover too late that the mill’s “standard” coating does not match the project specification. Zinc coating below minimum thickness accelerates corrosion in outdoor and industrial environments, leading to premature rust staining on facades and structural degradation in petrochemical settings.
Matching Galvanized Hollow Sections to Structural and Corrosion Demands
Hot Dip Galvanized Square Rectangular Steel Tube ASTM products serve projects where both structural integrity and long-term corrosion resistance are non-negotiable. The Z10–Z29 zinc coating range covers environments from indoor machinery frames to outdoor petrochemical pipe racks. Skin-passed surface treatment ensures flat, uniform finish suitable for visible architectural applications — no uneven spangle patterns disrupting facade aesthetics. Our in-house laboratory tests every batch for coating thickness before release, because I learned the hard way that trusting the galvanizing line’s automatic readings is not enough.
Engineering Compliance and Certification Requirements for Galvanized Structural Tubes
Structural galvanized tubes must comply with dimensional tolerances and mechanical requirements defined by ASTM standards, particularly when used in load-bearing frames and facade systems. [NEED_CITE: ASTM A500 structural tubing dimensional tolerance requirements] For projects in the EU, CE marking per EN 10210/EN 10219 is mandatory for customs clearance — a missing CE certificate blocks the entire shipment at port. Carbon steel grades Q195–Q235 provide adequate yield strength for most construction framing and machinery support applications, while the hot-dip galvanizing process ensures metallurgical bonding of the zinc layer for superior adhesion compared to pre-galvanized alternatives. Custom lengths and on-site processing services — welding, cutting, bending, punching — reduce secondary fabrication time at the project location.
Understanding Carbon Steel Grades and Hot-Dip Galvanizing Process
The Q195–Q235 carbon steel series represents the most widely used structural grades in Chinese manufacturing, with incrementally higher carbon content and yield strength from Q195 to Q235. These grades are directly weldable and formable, making them suitable for the welded tube production technique used in our Hot Dip Galvanized Square Rectangular Steel Tube ASTM range. The hot-dip galvanizing process involves immersing fabricated steel tubes in molten zinc bath, creating a metallurgical bond that produces zinc-iron alloy layers beneath pure zinc outer coating — this layered structure provides both barrier protection and sacrificial cathodic protection. [NEED_CITE: hot-dip galvanizing metallurgical bond mechanism] Regular spangle finish indicates standard crystallization pattern during zinc solidification, producing the characteristic visible spangle pattern recognized in architectural and industrial applications. The ±1% dimensional tolerance ensures consistent fit-up for bolted and welded connections in structural framing.
Hidden Costs of Procuring Galvanized Tubes Without Verified Coating and Certification
Purchasing Hot Dip Galvanized Square Rectangular Steel Tube ASTM products from suppliers without in-house coating verification leads to predictable failures: zinc thickness below specification triggers rejection at third-party inspection, missing ASTM documentation causes customs delays, and negative tolerance abuse reduces actual wall thickness below design requirements. [NEED_CITE: consequences of negative tolerance in structural steel procurement] Material substitution — receiving lower-grade steel than specified — creates structural safety risks that only surface during load testing or years later through premature corrosion. The true cost of cheap galvanized tubes is measured in project delays, re-fabrication, and liability exposure, not in purchase price per ton.
Why SD XJY Pipe Delivers Verified Galvanized Hollow Sections
Every Hot Dip Galvanized Square Rectangular Steel Tube ASTM order passes through our in-house physical and chemical laboratory for dimensional measurement, mechanical testing, and coating thickness verification before shipment. We hold 41 invention patents including China’s original sharp-corner rectangular tube technology, and our 2,800+ specification range covers non-standard sizes that most mills cannot produce. Full international certifications — ISO 9001:2015, Lloyd’s CE (EN 10210/EN 10219), Singapore FPC, SGS/BV verification — ensure smooth customs clearance in EU, North America, and regulated markets worldwide. Custom lengths, cutting, marking, and professional container loading prevent transit damage to the galvanized coating. We export to 50+ countries with documented loading procedures that protect zinc layer integrity during ocean freight.
Documentation & Compliance
- Mill Test Certificate documenting Q195–Q235 chemical composition and mechanical properties per ASTM standard for each heat number
- CE certificate per EN 10210/EN 10219 for hot-dip galvanized structural hollow sections destined for EU markets
- ISO 9001:2015 quality management certificate covering production and testing of galvanized square and rectangular tubes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance before shipment
- Material traceability documentation linking each tube bundle to specific heat number and production batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

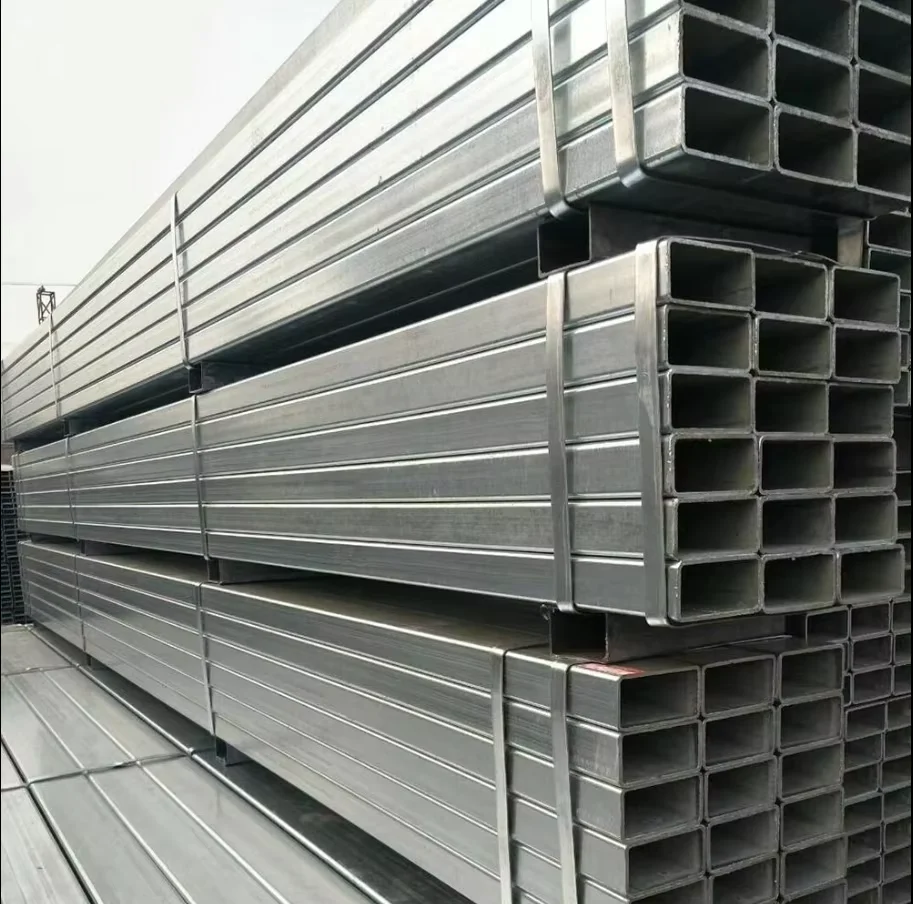

- Hot-dip galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Non-oiled, skin-passed surface wrapped with waterproof paper and plastic film to prevent white rust formation during storage and shipping
- Container loading optimized for 20×40 mm and custom-size galvanized rectangular tubes using wooden cradles to prevent bending and coating abrasion
- Custom length cutting available per project specification, with each bundle marked with heat number, steel grade, and size for site identification
- Professional loading crew trained in galvanized product handling, ensuring no chain contact or dragging that damages zinc layer
- FOB, CIF, and DDP shipping terms available with full export documentation and tracking until destination arrival
Request Quotation with Verified Coating Thickness and Mill Test Certificate
Submit your Hot Dip Galvanized Square Rectangular Steel Tube ASTM specifications — including size, wall thickness, length, quantity, and destination port — to receive detailed quotation with coating thickness guarantee and mill test certificate sample. We provide non-standard size solutions and third-party inspection arrangement for pre-shipment quality confirmation.
Get Your ASTM-Certified Galvanized Tube Quote with Full Coating Verification
Send your specifications to receive pricing, lead time, and mill test certificate within 12 hours.
Email: admin@sdxjypipe.com | WhatsApp: +86 188 5315 7756 | Website: www.sdxjypipe.com
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes?
A: Hot-dip galvanizing immerses finished tubes in molten zinc, creating metallurgical zinc-iron alloy layers with superior adhesion and thicker coating (Z10–Z29 range). Pre-galvanized tubes are made from pre-coated steel coil, resulting in thinner zinc layer with only barrier protection. Hot-dip galvanized tubes offer longer corrosion resistance for outdoor and industrial applications.
Q: Can you provide ASTM A500 equivalent grades for EN 10210 or GB/T 6728 standards?
A: Yes, we supply carbon steel grades Q195–Q235 that meet ASTM requirements and can provide grade equivalence documentation for EN 10210 and GB/T 6728 standards. Our mill test certificates include chemical composition and mechanical properties for cross-standard verification.
Q: What is the minimum order quantity for custom-length galvanized rectangular tubes?
A: MOQ depends on specification and customization requirements. Standard sizes may ship from stock, while custom lengths and non-standard sizes enter production with typical lead times. Contact us with your specific requirements for exact MOQ quotation.
Q: How do you ensure coating thickness uniformity on sharp-corner rectangular tubes?
A: Our in-house laboratory tests zinc coating thickness on every batch using calibrated coating thickness gauges at multiple points including corners. The hot-dip galvanizing process parameters are controlled to ensure uniform zinc distribution across all surfaces, including sharp corners produced by our patented technology.
Q: What documentation is provided for EU customs clearance with CE-marked galvanized tubes?
A: We provide CE certificate per EN 10210/EN 10219, mill test certificate with chemical composition and mechanical properties, Declaration of Performance (DoP), packing list, bill of lading, and certificate of origin. Third-party inspection reports from SGS or BV are available upon request for additional compliance verification.
